Susumu RT0816 Series

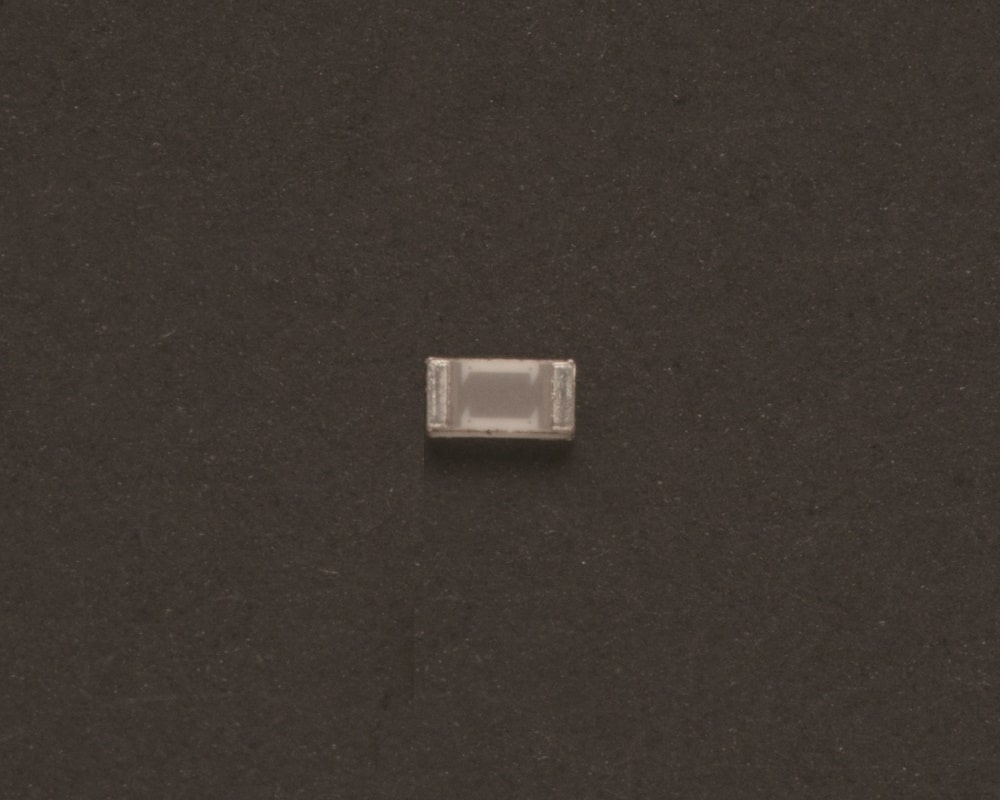

The RT0816 series thin film trimmable chip resistors from Susumu offer the designer patented trimming method (Patent# 1921853) which guarantees precision trimming, post trimming stability and short trimming time. The Susumu RT0816 series initial resistance values of 100Ω, 330Ω, 1.kΩ, 3.3kΩ and 10kΩ, maximum resistance valves when the parts have been trimmed 2.7kΩ, 8kΩ, 8.8kΩ, 37kΩ and 40kΩ. The power rating is 0.0625W with a maximum voltage of 75V and the initial tolerance value of ±20% with a chip size of 0603.

• Surface-mount thin film trimmable chip resistor
• Initial resistance values are 100Ω, 330Ω, 1kΩ, 3.3kΩ and 10kΩ
• Maximum resistance values when the parts have been trimmed 2.7kΩ, 8kΩ 8.8kΩ, 37kΩ and 40kΩ
• Power rating of 0.0625W
• Initial tolerance value ±20%
• TCR values available are ±25 ppm/°C (P) and ±100 ppm/°C (R) (depending on the resistance value required)
• Maximum voltage of 75V
• Temperature range of −55°C to +125°C
• Chip size of 0603
• AEC-Q200 compliant

Susumu RT0816 series thin film trimmable chip resistors are ideal for the following applications:

• Sensor circuits that require accuracy (e.g. automotive electronics)
• PA modules of mobile phone
• Devices that require anti-vibration stability (e.g. microphone)

The below table gives the full specifications of the Susumu RT series including the RT0816:
