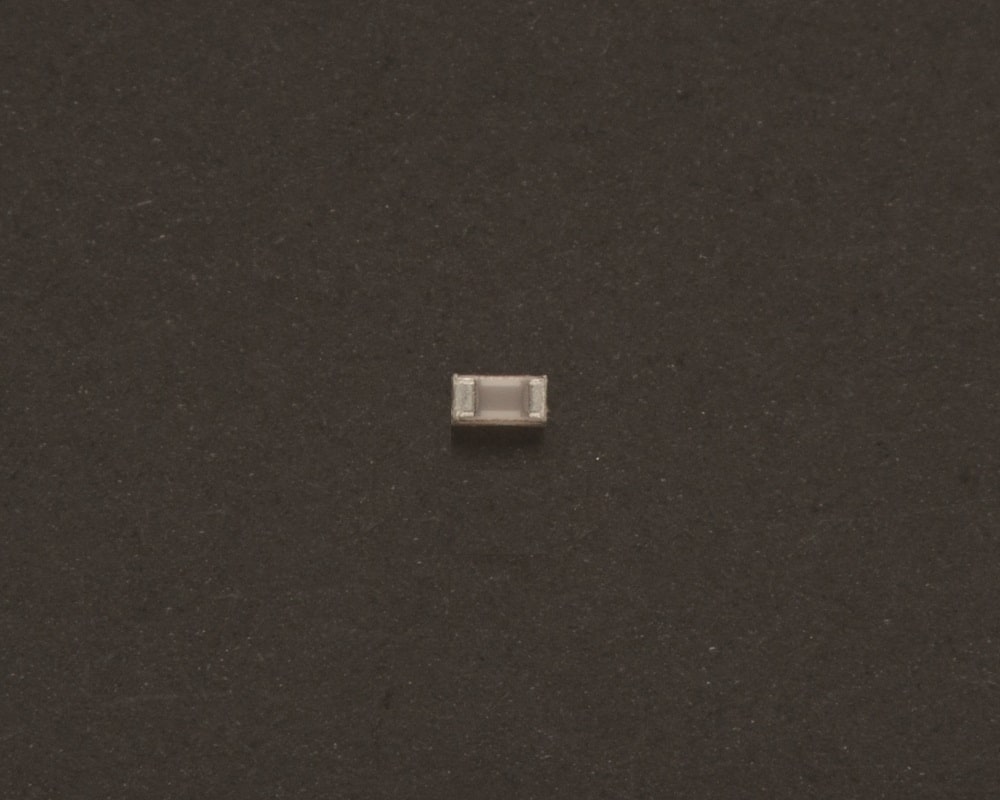

Susumu RT0510 Series

The RT0510 series thin film trimmable chip resistors from Susumu offer the designer patented trimming method (Patent# 1921853) which guarantees precision trimming, post trimming stability and short trimming time. The Susumu RT0510 series initial resistance values of 100Ω, 270Ω and 1.5kΩ, maximum resistance valves when the parts have been trimmed 820Ω, 10kΩ and 2.1kΩ. The power rating is 0.0625W with a maximum voltage of 25V and the initial tolerance value is ±20% with a chip size of 0402.

• Surface-mount metal thin film trimmable chip resistor
• Initial resistance values are 100Ω, 270Ω and 1.5kΩ
• Maximum resistance values when the parts have been trimmed 820Ω, 10KΩ and 2.1KΩ
• Power rating of 0.0625W
• Initial tolerance value ±20%
• TCR values available are ±25 ppm/°C (P) and ±100 ppm/°C (R) (depending on the resistance value required)
• Maximum voltage of 25V
• Temperature range of −55°C to +125°C

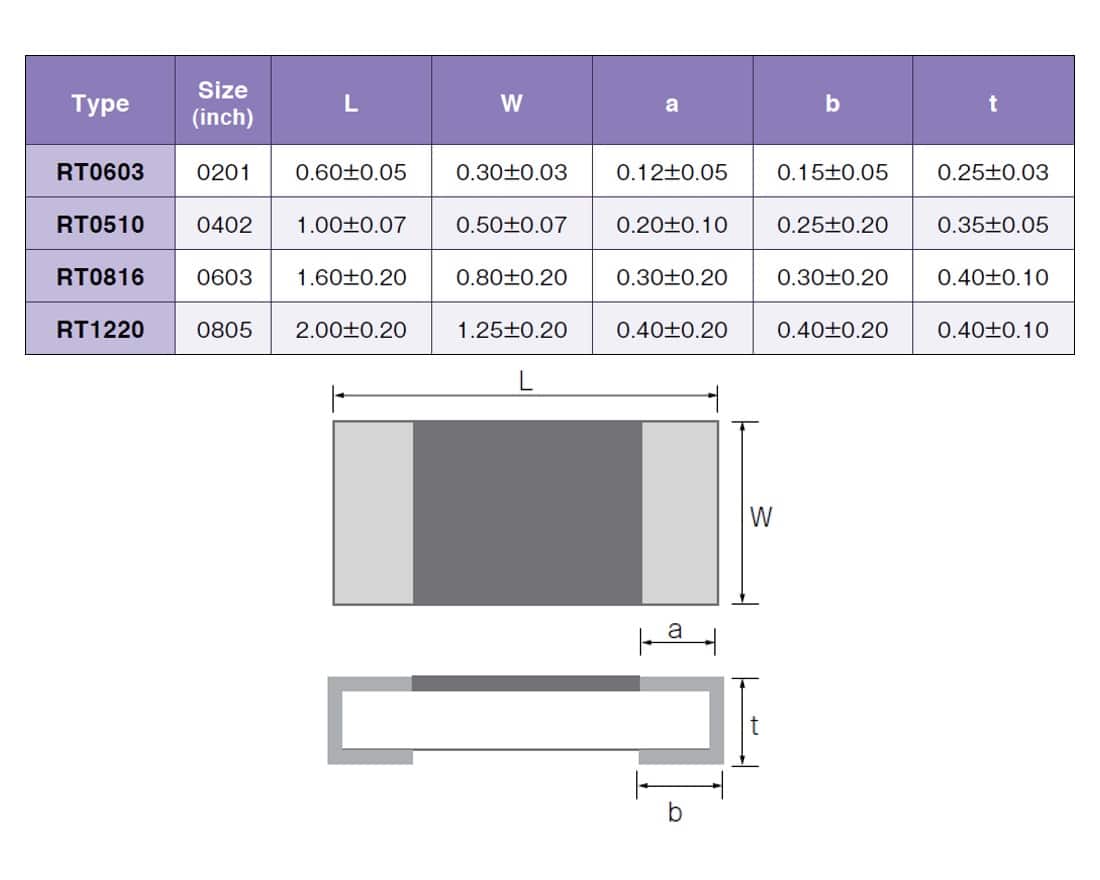

• Chip size of 0402
• AEC-Q200 compliant

Susumu RT0510 series metal thin film trimmable chip resistors are ideal for the following applications:

• Sensor circuits that require accuracy (e.g. automotive electronics)
• PA modules of mobile phone
• Devices that require anti-vibration stability (e.g. microphone)

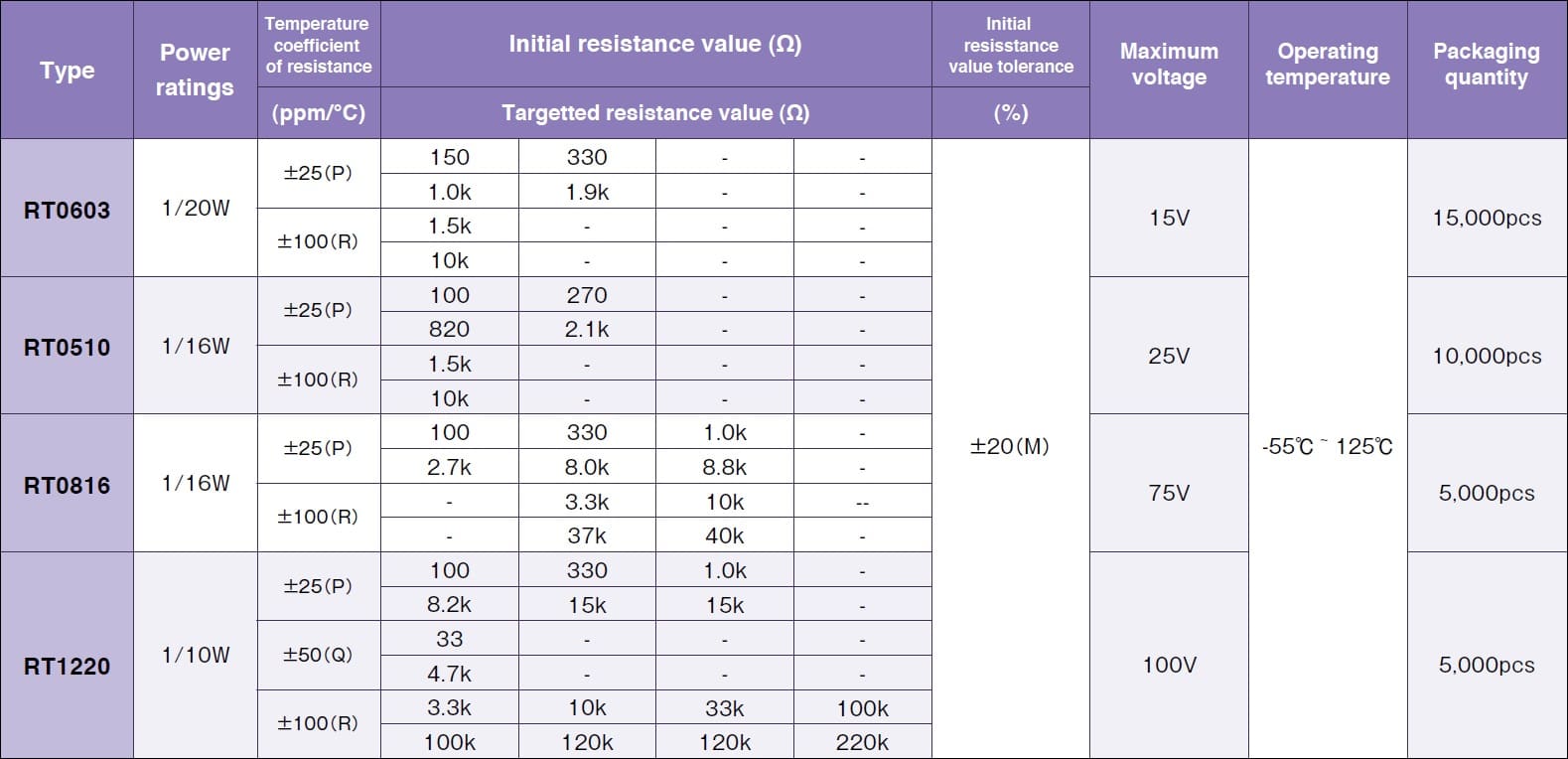

The below table gives the full specifications of the Susumu RT series including the RT0510:
