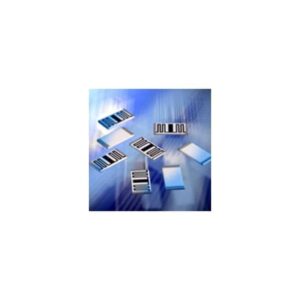

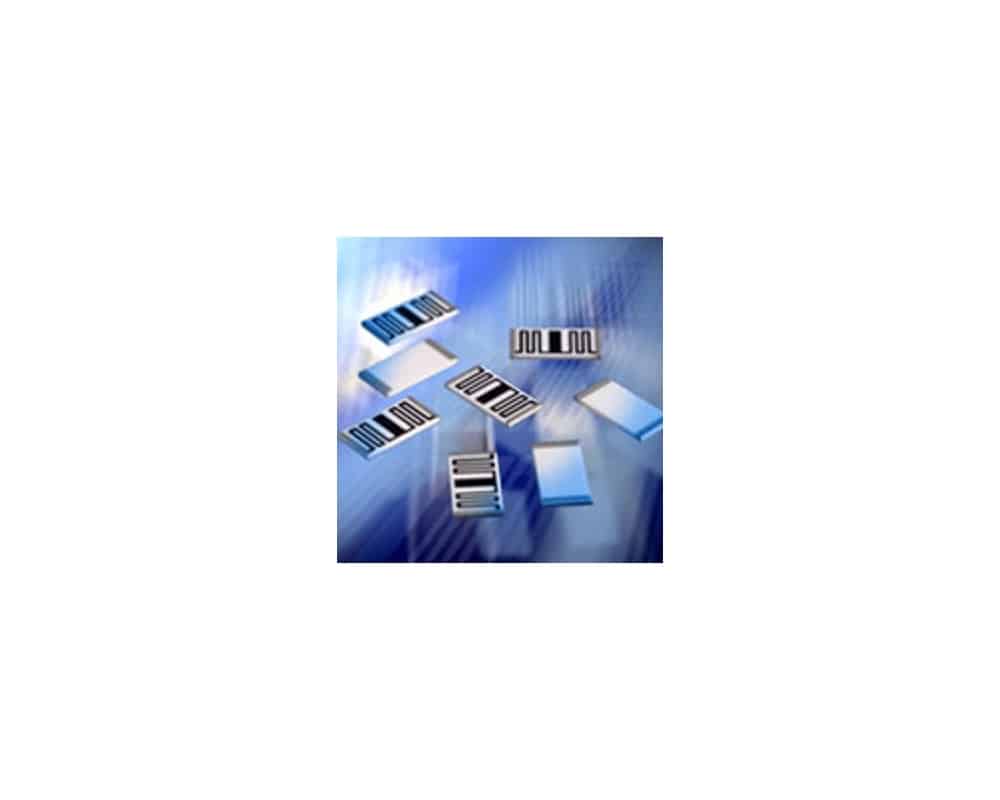

SRT CHS 1206

Product Features

  • Non-magnetic thick film chip resistor
  • Resistance range from 10MΩ to 100GΩ
  • Tolerances from ±0.5% to ±30%
  • TCR from ±25 ppm/°C to ±2000 ppm/°C
  • Power rating of 0.25W (at +70°C)
  • Temperature range from -55°C up to +155°C
  • Exempt

The CHS 1206 high ohmic non-magnetic resistor series from SRT Resistor Technology offers a high resistance range from 10MΩ up to 100GΩ, power rating of 0.25W and voltage rating of 200V trimmed or 400V untrimmed (tolerances ≥5.0%), all in a small 1206 surface mount package. By utilising SRT’s thick film resistor technology, these chip resistors are able to offer tolerances down to ±0.5% (between 10MΩ and 100MΩ), TCR as low as ±25 ppm/°C (between 10MΩ and 100MΩ) and a VCR as low as ±250 ppm/V (between 10MΩ and 100MΩ). The CHS 1206 resistor series contains no organics, making them suitable for high vacuum applications and offer PtAg (platinum silver) terminations for conductive gluing and soldering.

  • Surface-mount thick film chip resistor
  • Available in any resistance between 10MΩ and 100GΩ
  • 1206 package
  • Power rating of 0.25W at +70°C
  • Voltage rating of 200V trimmed or 400V untrimmed (tolerances ≥5.0%)
  • Tolerances as low as ±0.5% over the resistance range of 10MΩ up to 100MΩ
  • TCR as low as ±25 ppm/°C over the resistance range of 10MΩ to 100MΩ
  • VCR as low as ±250 ppm/V (between 10MΩ up to 100MΩ)
  • Temperature range from -55°C up to +155°C
  • Non-magnetic
  • PtAg (platinum silver) terminations for conductive gluing and soldering
  • Low temperature and voltage dependency
  • No organics



The CHS high ohmic non-magnetic resistor series is also available with an extended high temperature range version (up to +300°C). Please see the separate CHS-HT product pages for further information.

Lower tolerance, TCR and VCR options are available upon request. Please contact us for further information and availability.



The below table gives full specifications for each resistor model available including the CHS 1206 series:

SRT CHS Specifications
1) At continuous power dissipation the dimensions of solder-pads have to secure a sufficient heat removal
2) Continuous operating voltage (U_, Ueff): V ≤ √(P*R) or max. working voltage (the lower value)
3) TCR: in ppm/K; +25°C…+125°C; TCR lower than standard TCR (highest value) or value >100G: +25°C…+85°C
4) VCR: typical values, all negative, not for all TCR values available



Specifications

Weight 0.00000 kg
Dimensions 0.40 x 1.50 x 3.20mm
Maximum Resistance

100GΩ

Minimum Resistance

10MΩ

Package / Size

,

Power Rating

Product Type

, ,

Resistance Value

, , , ,

Series / Model

Temperature Coefficient

, , , , ,

Temperature Range (°C)

-55 to +155°C

Termination / Connection

PtAg

Tolerance

, , , , , ,

Product Variations

SKUResistance ValueTemperature CoefficientTolerance
SRT CHS 1206 SeriesCustom (100MΩ - 500MΩ)±100 ppm/°C±10%

Request Quote

SRT CHS 1206 SeriesCustom (100MΩ - 500MΩ)±250 ppm/°C±10%

Request Quote

SRT CHS 1206 SeriesCustom (100MΩ - 500MΩ)±50 ppm/°C±10%

Request Quote

SRT CHS 1206 SeriesCustom (100MΩ - 500MΩ)±100 ppm/°C±2%

Request Quote

SRT CHS 1206 SeriesCustom (100MΩ - 500MΩ)±250 ppm/°C±2%

Request Quote

SRT CHS 1206 SeriesCustom (100MΩ - 500MΩ)±50 ppm/°C±2%

Request Quote

SRT CHS 1206 SeriesCustom (100MΩ - 500MΩ)±100 ppm/°C±20%

Request Quote

SRT CHS 1206 SeriesCustom (100MΩ - 500MΩ)±250 ppm/°C±20%

Request Quote

SRT CHS 1206 SeriesCustom (100MΩ - 500MΩ)±50 ppm/°C±20%

Request Quote

SRT CHS 1206 SeriesCustom (100MΩ - 500MΩ)±100 ppm/°C±5%

Request Quote

SRT CHS 1206 SeriesCustom (100MΩ - 500MΩ)±250 ppm/°C±5%

Request Quote

SRT CHS 1206 SeriesCustom (100MΩ - 500MΩ)±50 ppm/°C±5%

Request Quote

SRT CHS 1206 SeriesCustom (10GΩ - 100GΩ)±1000 ppm/°C±10%

Request Quote

SRT CHS 1206 SeriesCustom (10GΩ - 100GΩ)±2000 ppm/°C±10%

Request Quote

SRT CHS 1206 SeriesCustom (10GΩ - 100GΩ)±1000 ppm/°C±20%

Request Quote

SRT CHS 1206 SeriesCustom (10GΩ - 100GΩ)±2000 ppm/°C±20%

Request Quote

SRT CHS 1206 SeriesCustom (10GΩ - 100GΩ)±1000 ppm/°C±30%

Request Quote

SRT CHS 1206 SeriesCustom (10GΩ - 100GΩ)±2000 ppm/°C±30%

Request Quote

SRT CHS 1206 SeriesCustom (10MΩ - 100MΩ)±100 ppm/°C±0.5%

Request Quote

SRT CHS 1206 SeriesCustom (10MΩ - 100MΩ)±0.5%

Request Quote

SRT CHS 1206 SeriesCustom (10MΩ - 100MΩ)±50 ppm/°C±0.5%

Request Quote

SRT CHS 1206 SeriesCustom (10MΩ - 100MΩ)±100 ppm/°C±1%

Request Quote

SRT CHS 1206 SeriesCustom (10MΩ - 100MΩ)±1%

Request Quote

SRT CHS 1206 SeriesCustom (10MΩ - 100MΩ)±50 ppm/°C±1%

Request Quote

SRT CHS 1206 SeriesCustom (10MΩ - 100MΩ)±100 ppm/°C±10%

Request Quote

SRT CHS 1206 SeriesCustom (10MΩ - 100MΩ)±10%

Request Quote

SRT CHS 1206 SeriesCustom (10MΩ - 100MΩ)±50 ppm/°C±10%

Request Quote

SRT CHS 1206 SeriesCustom (10MΩ - 100MΩ)±100 ppm/°C±20%

Request Quote

SRT CHS 1206 SeriesCustom (10MΩ - 100MΩ)±20%

Request Quote

SRT CHS 1206 SeriesCustom (10MΩ - 100MΩ)±50 ppm/°C±20%

Request Quote

SRT CHS 1206 SeriesCustom (10MΩ - 100MΩ)±100 ppm/°C±5%

Request Quote

SRT CHS 1206 SeriesCustom (10MΩ - 100MΩ)±5%

Request Quote

SRT CHS 1206 SeriesCustom (10MΩ - 100MΩ)±50 ppm/°C±5%

Request Quote

SRT CHS 1206 SeriesCustom (1GΩ - 10GΩ)±1000 ppm/°C±10%

Request Quote

SRT CHS 1206 SeriesCustom (1GΩ - 10GΩ)±500 ppm/°C±10%

Request Quote

SRT CHS 1206 SeriesCustom (1GΩ - 10GΩ)±1000 ppm/°C±20%

Request Quote

SRT CHS 1206 SeriesCustom (1GΩ - 10GΩ)±500 ppm/°C±20%

Request Quote

SRT CHS 1206 SeriesCustom (1GΩ - 10GΩ)±1000 ppm/°C±5%

Request Quote

SRT CHS 1206 SeriesCustom (1GΩ - 10GΩ)±500 ppm/°C±5%

Request Quote

SRT CHS 1206 SeriesCustom (500MΩ - 1GΩ)±100 ppm/°C±10%

Request Quote

SRT CHS 1206 SeriesCustom (500MΩ - 1GΩ)±250 ppm/°C±10%

Request Quote

SRT CHS 1206 SeriesCustom (500MΩ - 1GΩ)±100 ppm/°C±20%

Request Quote

SRT CHS 1206 SeriesCustom (500MΩ - 1GΩ)±250 ppm/°C±20%

Request Quote

SRT CHS 1206 SeriesCustom (500MΩ - 1GΩ)±100 ppm/°C±5%

Request Quote

SRT CHS 1206 SeriesCustom (500MΩ - 1GΩ)±250 ppm/°C±5%

Request Quote
