SRT CHR 0402

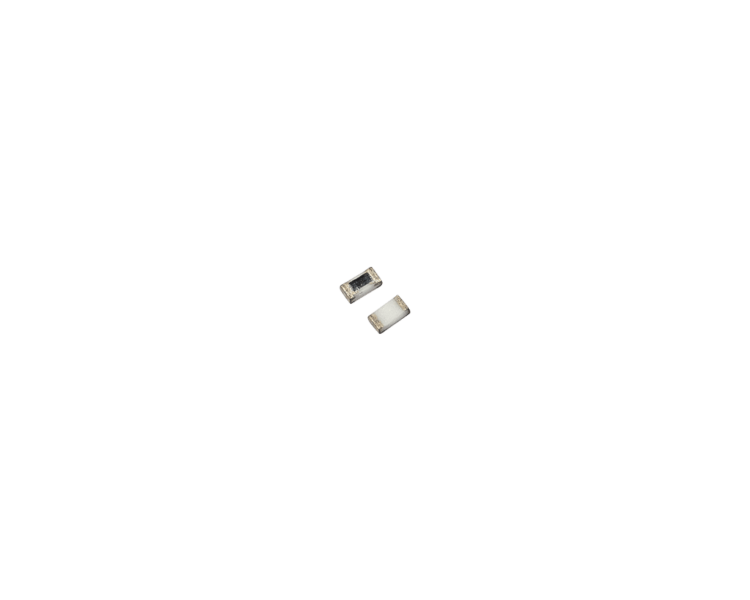

The CHR 0402 non-magnetic resistor series from SRT Resistor Technology offers a wide resistance range from 1Ω up to 10MΩ, power rating of 0.05W and voltage rating of 30V trimmed or 60V untrimmed (tolerances ≥5%), all in a small 0402 surface mount package. By utilising SRT’s thick film resistor technology, they are able to offer low tolerances down to ±1.0% (between 100Ω and 10MΩ) and TCR as low as ±50 ppm/°C (between +25°C and +85°C). The CHR 0402 resistor series contains no organics making them suitable for high vacuum applications and offer PtAg (platinum silver) terminations for conductive gluing and soldering.

• Surface-mount thick film chip resistor
• Available in any resistance between 1Ω and 10MΩ
• 0402 package
• Power rating of 0.05W at +70°C
• Voltage rating of 30V trimmed or 60V untrimmed (tolerances ≥5%)
• Tolerances as low as ±1.0% over the resistance range of 100Ω up to 10MΩ
• TCR as low as ±50 ppm/°C over the resistance range of 100Ω to 10MΩ
• Temperature range from -55°C up to +155°C
• Non-magnetic
• PtAg (platinum silver) terminations for conductive gluing and soldering
• RF versions available (untrimmed resistors)
• No organics

Zero ohm jumper option available with a resistance value of less than 0.05Ω.

The CHR non-magnetic resistor series is also available with an extended high temperature range version (up to +300°C). Please see the separate CHR-HT product pages for further information.

Custom tolerance, TCR and VCR options are available upon request. Please contact us for further information and availability.

The below table gives full specifications for each resistor model available including the CHR 0402 series:

¹⁾ TCR: in ppm/K; +25°C…+125°C; TCR below standard TCR (highest value): +25°C…+85°C
²⁾ Continuous operating voltage (U_, U_eff): V ≤ √(P*R) or max. working voltage (the lower value)
³⁾ At continuous power dissipation the dimensions of solder-pads have to secure a sufficient heat removal Power Mode: 2W as CHR 2512-HT (P₇₀=2W, P₃₀₀=0W) and 3W as CHR 4020-HT (P₇₀=3W, P₃₀₀=0W) respectively. Higher power rating requires an adequate heat removal (e.g. increased solder pads or Copper thicknesses). The user has to guarantee, that solder joints will not run over their load limit. The resistor must not exceed the specified operating temperature range
