Riedon 104PC Series

Product Features

  • Through-hole, precision, wirewound resistor
  • Long term stability of 100ppm/year (20ppm/year version available upon request)
  • 100% acceptance tested / traceable to NIST
  • Temperature range of -55ยฐC to 145ยฐC
  • Fast rise time version available
  • Matched resistance sets to ยฑ0.001% and ยฑ0.5ppm/ยฐC available
  • Compliant

The 104PC wirewound precision resistor series from Riedon offers resistance values between 700kฮฉ and 1Mฮฉ (lower resistances available upon request) at a power rating of 0.5W, tolerances as low as ยฑ0.005% and a standard TCR of ยฑ10 ppm/ยฐC (wide TCR range, including Balco and Platinum wire for high TCR, available upon request). These resistors utilise a traditional design for through-hole circuit board mounting, while offering a number of custom features. The 104PC series resistors are all 100% acceptance tested and traceable to NIST, and offer long term stability of 100ppm/year (20ppm/year version available). Matched resistance sets to ยฑ0.001% and ยฑ0.5ppm/ยฐC are also available.

  • Wirewound, precision, radial through-hole resistor
  • Available in resistance values between 700kฮฉ and 1Mฮฉ (lower resistances available upon request)
  • Minimum tolerance ยฑ0.005%
  • Standard TCR of 10ppm/ยฐC (wide TCR range of -20ppm/ยฐC to +6000ppm/ยฐC available upon request)
  • Standard long term stability of 100ppm/year, with high stability version (ยฑ20ppm/year) available upon request
  • Fast rise time version with low reactance design for fast rise time and extended frequency response available upon request
  • 100% acceptance tested / traceable to NIST
  • Power rating of 0.5W
  • Maximum working voltage 400V
  • Matched resistance sets to ยฑ0.001% and ยฑ0.5ppm/ยฐC available
  • Temperature range -55ยฐC to +145ยฐC

Please see below for the power derating curve for the Riedon 104PC series:

Riedon 100 Series/ SM series/ PC series Power derating curve

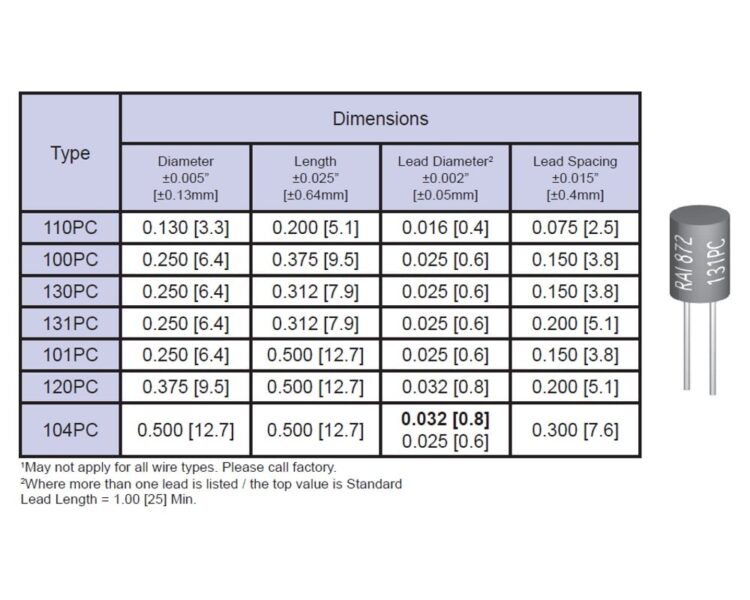

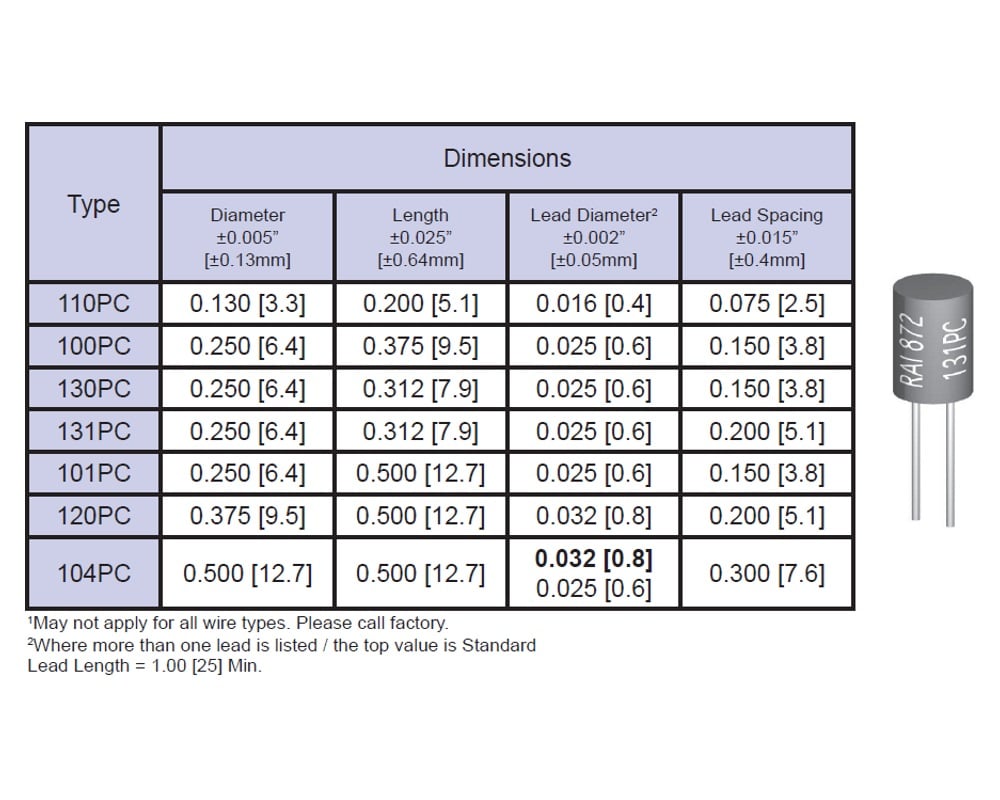

The below table gives the full specifications for each resistor model available in the Riedon PC series wirewound resistor range, including the 104PC series:

Riedon PC series specifications


Specifications

Weight 0.00000 kg
Dimensions 0.80 x 12.70 x 12.70mm
Maximum Resistance

1Mฮฉ

Minimum Resistance

700kฮฉ

Package / Size

Power Rating

Resistance Value

Series / Model

Temperature Coefficient

, , ,

Tolerance

, , , , , ,

Product Variations

SKUResistance ValueTolerance
Riedon 104PC SeriesCustom (1โ„ฆ - 1Mโ„ฆ)ยฑ0.005%
Riedon 104PC SeriesCustom (1โ„ฆ - 1Mโ„ฆ)ยฑ0.01%
Riedon 104PC SeriesCustom (1โ„ฆ - 1Mโ„ฆ)ยฑ0.02%
Riedon 104PC SeriesCustom (1โ„ฆ - 1Mโ„ฆ)ยฑ0.05%
Riedon 104PC SeriesCustom (1โ„ฆ - 1Mโ„ฆ)ยฑ0.1%
Riedon 104PC SeriesCustom (1โ„ฆ - 1Mโ„ฆ)ยฑ0.5%
Riedon 104PC SeriesCustom (1โ„ฆ - 1Mโ„ฆ)ยฑ1%

PC Series Products

 Product nameSKUDatasheet
Riedon 104PC SeriesRiedon 104PCView Product
Riedon 120PC SeriesRiedon 120PCView Product

RoHS Compliant Product – Riedon

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
