Exxelia Ohmcraft SM 2010

Product Features

High Ohmic SMD Resistors
Resistance range from 10kΩ to 50GΩ
Tolerances from ±0.1% to ±20%
TCR from ±25 ppm/°C to ±200 ppm/°C
Power rating of 1W
Voltage rating of 300V
Temperature range from -55°C to +150°C

Datasheet

Resistance Value
Tolerance
Temperature Coefficient
Termination / Connection
Series / Model
Clear

Custom resistance value (Ω) *
Custom AT Range (AT) *
Custom Capacity (lbs) *
Custom Pressure (Bar/PSI) *
Custom Resistance Value Element 1 (Ω) *
Custom Resistance Value Element 2 (Ω) *
Custom lead length (mm) *
Custom lead length (inches) *

Quantity

Add to Compare

SM Series Description

High Ohmic SMD Resistors
Available in resistances from 10kΩ and 50GΩ
Standard chip sizes of 0402, 0603, 0805, 1206, 2010, 2512 & 3512 *
Tolerances of ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5% ,±10% or ±20%
TCR ratings of ±25 ppm/°C, ±50 ppm/°C, ±100 ppm/°C or ±200 ppm/°C
Voltage ratings from 50V tp 600V
Power rating from 0.04W to 2W
Ultra-high stability
Very low noise
VCR down to 1 ppm/V
Temperature range from -55°C up to 150°C

* Custom configurations are available upon request The SM high ohmic SMD resistor series from Exxelia Ohmcraft® offers resistances from 10kΩ up to 50GΩ while maintaining small SMD chip sizes. By utilising their patented Micropen® precision printing technology, Ohmcraft are able to provide superior precision, thick-film surface mount resistor. SM series resistors offer very low noise, ultra-high stability with tolerances down to ±0.1%, TCR options as low as ±25 ppm/°C and VCR down to 1 ppm/V.

Specifications

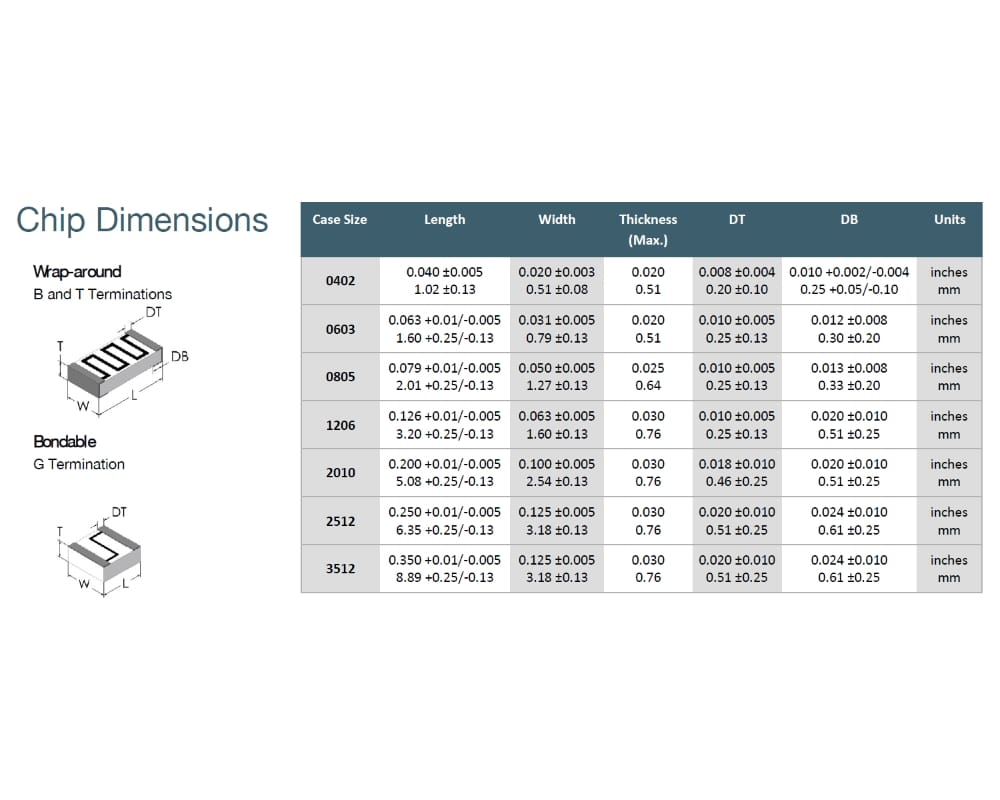

Dimensions	0.76 x 2.54 x 5.08mm
Product Type	High Ohmic Resistor
Design Technology	SMD (surface mount)
Package / Size	2010
Minimum Resistance	10kΩ
Maximum Resistance	50GΩ
Tolerance	±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%
Temperature Coefficient	±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C
Power Rating	1W
Voltage Rating	300V
Termination / Connection	Wire Bondable Gold (Au), Solderable Single Surface Matte Tin Sn99.9 on Nickel Barrier (RoHS), Solderable Single Surface Sn63Pb37 (Non-RoHS), Solderable Wraparound Matte Tin Sn99.9 on Nickel Barrier (RoHS), Solderable Wraparound Sn63Pb37 on Nickel Barrier (Non-RoHS)
Temperature Range (°C)	-55 to +150°C
Series / Model	SM

Series / Model (SM)

SM: SM

Package / Size (XXXX)

2010: 2010

Temperature Coefficient (X)

H: ±50 ppm/°C
K: ±100 ppm/°C
L: ±200 ppm/°C

Resistance Value (XXXX)

Resistance value is expressed as a four-digit number where the first three numbers are the significant value, and the fourth number is the number of zeros.

Tolerance (X)

C: ±0.25%
D: ±0.5%
F: ±1%
G: ±2%
J: ±5%
K: ±10%
L: ±20%

Termination / Connection (X)

B: Solderable Wraparound Sn63Pb37 on Nickel Barrier (Non-RoHS)
G: Wire Bondable Gold (Au)
S: Solderable Single Surface Sn63Pb37 (Non-RoHS)
T: Solderable Wraparound Matte Tin Sn99.9 on Nickel Barrier (RoHS)
Z: Solderable Single Surface Matte Tin Sn99.9 on Nickel Barrier (RoHS)

Product Variations

SKU	Resistance Value	Tolerance	Temperature Coefficient
Exxelia Ohmcraft SM 2010	Custom (10kΩ - 100kΩ)		±100 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (10kΩ - 100kΩ)		±200 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (100kΩ - 1MΩ)		±50 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (100kΩ - 1MΩ)		±100 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (100kΩ - 1MΩ)		±200 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (1MΩ - 10MΩ)			Request Quote
Exxelia Ohmcraft SM 2010	Custom (10MΩ - 100MΩ)	±0.25%		Request Quote
Exxelia Ohmcraft SM 2010	Custom (10MΩ - 100MΩ)	±0.5%		Request Quote
Exxelia Ohmcraft SM 2010	Custom (10MΩ - 100MΩ)	±1%		Request Quote
Exxelia Ohmcraft SM 2010	Custom (10MΩ - 100MΩ)	±2%		Request Quote
Exxelia Ohmcraft SM 2010	Custom (10MΩ - 100MΩ)	±5%		Request Quote
Exxelia Ohmcraft SM 2010	Custom (10MΩ - 100MΩ)	±10%		Request Quote
Exxelia Ohmcraft SM 2010	Custom (10MΩ - 100MΩ)	±20%		Request Quote
Exxelia Ohmcraft SM 2010	Custom (100MΩ - 500MΩ)	±0.5%	±50 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (100MΩ - 500MΩ)	±1%	±50 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (100MΩ - 500MΩ)	±2%	±50 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (100MΩ - 500MΩ)	±5%	±50 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (100MΩ - 500MΩ)	±10%	±50 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (100MΩ - 500MΩ)	±20%	±50 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (100MΩ - 500MΩ)	±0.5%	±100 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (100MΩ - 500MΩ)	±1%	±100 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (100MΩ - 500MΩ)	±2%	±100 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (100MΩ - 500MΩ)	±5%	±100 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (100MΩ - 500MΩ)	±10%	±100 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (100MΩ - 500MΩ)	±20%	±100 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (100MΩ - 500MΩ)	±0.5%	±200 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (100MΩ - 500MΩ)	±1%	±200 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (100MΩ - 500MΩ)	±2%	±200 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (100MΩ - 500MΩ)	±5%	±200 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (100MΩ - 500MΩ)	±10%	±200 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (100MΩ - 500MΩ)	±20%	±200 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (500MΩ - 1GΩ)	±1%	±100 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (500MΩ - 1GΩ)	±2%	±100 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (500MΩ - 1GΩ)	±5%	±100 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (500MΩ - 1GΩ)	±10%	±100 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (500MΩ - 1GΩ)	±20%	±100 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (500MΩ - 1GΩ)	±1%	±200 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (500MΩ - 1GΩ)	±2%	±200 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (500MΩ - 1GΩ)	±5%	±200 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (500MΩ - 1GΩ)	±10%	±200 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (500MΩ - 1GΩ)	±20%	±200 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (1GΩ - 10GΩ)	±2%	±200 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (1GΩ - 10GΩ)	±5%	±200 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (1GΩ - 10GΩ)	±10%	±200 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (1GΩ - 10GΩ)	±20%	±200 ppm/°C	Request Quote
Exxelia Ohmcraft SM 2010	Custom (10GΩ - 50GΩ)	±20%	±200 ppm/°C	Request Quote

SM Series Products

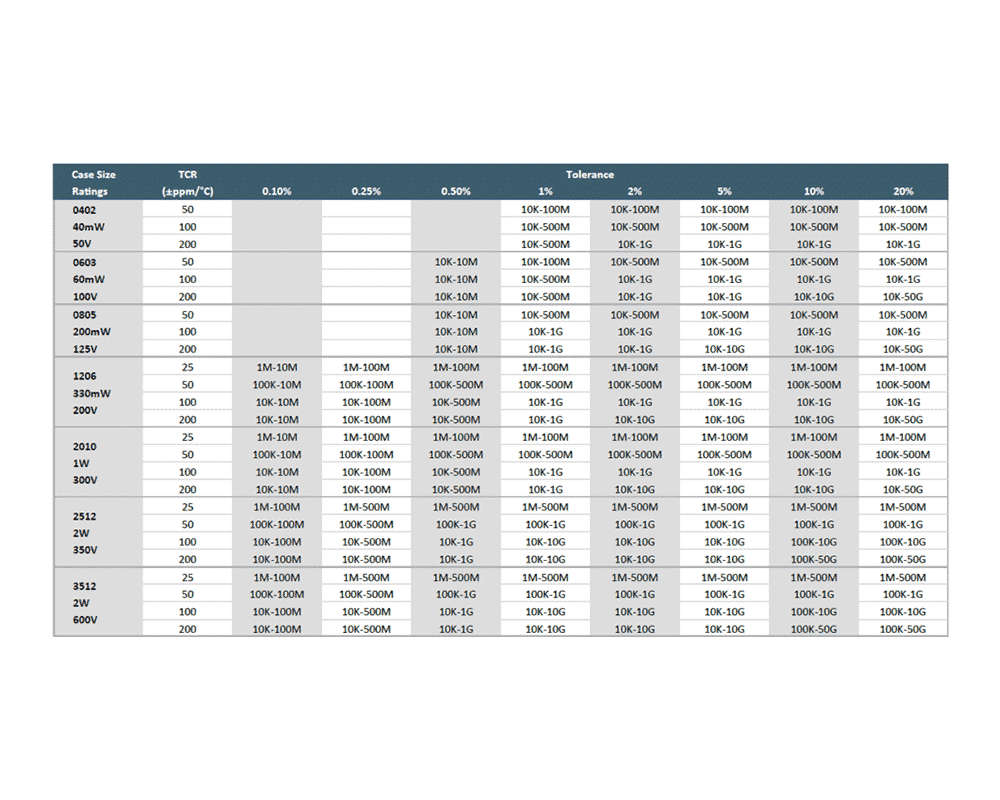

Product name	Package / Size	Minimum Resistance	Maximum Resistance	Tolerance	Temperature Coefficient	Power Rating	Voltage Rating	Add to enquiry
Exxelia Ohmcraft SM 0402	0402	10kΩ	1GΩ	±2%, ±5%, ±10%, ±20%	±100 ppm/°C, ±200 ppm/°C	0.04W	50V	Add to Enquiry
Exxelia Ohmcraft SM 0603	0603	10kΩ	50GΩ	±1%, ±2%, ±5%, ±10%, ±20%	±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C	0.06W	100V	Add to Enquiry
Exxelia Ohmcraft SM 0805	0805	10kΩ	50GΩ	±1%, ±2%, ±5%, ±10%, ±20%	±100 ppm/°C, ±200 ppm/°C	0.2W	125V	Add to Enquiry
Exxelia Ohmcraft SM 1206	1206	10kΩ	50GΩ	±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%	±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C	0.33W	200V	Add to Enquiry
Exxelia Ohmcraft SM 2010	2010	10kΩ	50GΩ	±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%	±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C	1W	300V	Add to Enquiry
Exxelia Ohmcraft SM 2512	2512	10kΩ	50GΩ	±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%	±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C	2W	350V	Add to Enquiry
Exxelia Ohmcraft SM 3512	3512	10kΩ	50GΩ	±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%	±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C	2W	600V	Add to Enquiry

Resources

Product Datasheet

Exxelia Ohmcraft SM Series Datasheet
Exxelia Ohmcraft SM high ohmic SMD resistor series datasheet

Supporting Manufacturer Information

Exxelia Ohmcraft’s Case Size Application Note
Exxelia Ohmcraft’s performance specifications by case size application note
Exxelia Ohmcraft’s Glossary Application Note
Exxelia Ohmcraft’s glossary of resistor terminology application note
Exxelia Ohmcraft’s High-Frequency Application Note
Exxelia Ohmcraft’s high frequency attributes application note
Exxelia Ohmcraft’s High-Value Resistor White Paper
Exxelia Ohmcraft’s precision high-value chip resistors white paper
Exxelia Ohmcraft’s High-Voltage Resistor Application Note
Exxelia Ohmcraft’s life test data – high-votage chip resistors application note
Exxelia Ohmcraft’s High-Voltage White Paper
Exxelia Ohmcraft’s high-voltage chip resistors white paper
Exxelia Ohmcraft’s Lead Free Policy Application Note
Exxelia Ohmcraft’s lead free application note
Exxelia Ohmcraft’s Low Current Noise White Paper
Exxelia Ohmcraft’s low current noise resistors white paper
Exxelia Ohmcraft’s Micropenning Application Note
Exxelia Ohmcraft’s Micropenning resistor advantages application note
Exxelia Ohmcraft’s Resistor Pulse White Paper
Exxelia Ohmcraft’s resistor pulse withstanding capability white paper
Exxelia Ohmcraft’s Solder Reflow Application Note
Exxelia Ohmcraft’s solder reflow recommendations application note
Exxelia Ohmcraft’s Specifying Resistors Application Note
Exxelia Ohmcraft’s specifying resistors tutorial application note
Exxelia Ohmcraft’s TCR Tracking White Paper
Exxelia Ohmcraft’s superior TCR tracking in resistor networks and dividers
Exxelia Ohmcraft’s Tight Ratio Tolerance White Paper
Exxelia Ohmcraft’s tight ratio tolerance resistor networks whitepaper
Exxelia Ohmcraft’s Voltage Ratio And Coefficiant Application Note
Exxelia Ohmcraft’s voltage ratio tracking and voltage coefficient of resistance application note
