VPG FLC Series

Product Features

  • High precision resistor
  • Conformally coated through-hole design
  • Resistance range from 1ฮฉ to 200kฮฉ
  • Tolerance from ยฑ0.01% to ยฑ1%
  • TCR of ยฑ2.5 ppm/ยฐC or ยฑ5 ppm/ยฐC
  • Power rating of 0.25W (at +70ยฐC)
  • Temperature Range from -25ยฐC up to +155ยฐC
  • Compliant
Datasheet
Any questions, contact us?
Why buy from Rhopoint?
Engineering Calculators
Application Notes

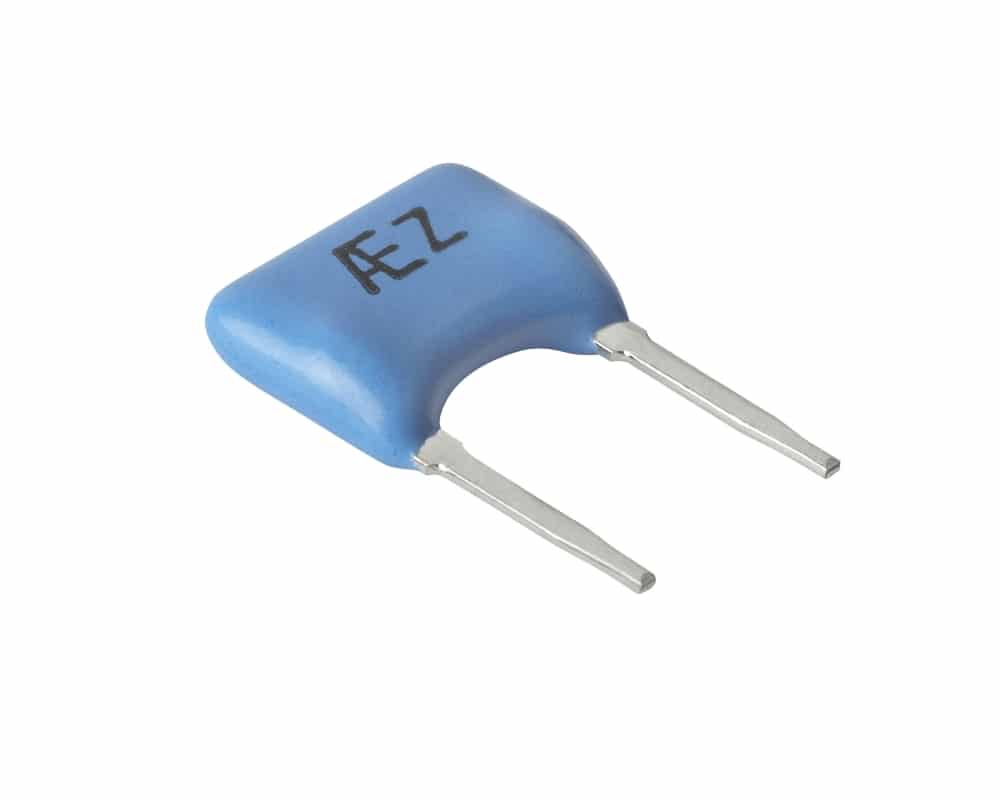

The FLC high precision through-hole resistor series from Alpha Electronics offers a very precise resistor with a resistance range from 1ฮฉ up to 200kฮฉ all in a small through-hole package. The terminals have been designed for easy insertion into the PCB. By utilising Alpha’s Bulk Metalยฎ foil resistor technology, they are able to produce resistors with low-temperature coefficients and excellent long-term stability. This makes them ideal for precision measurements, also their low inductance enables use at higher frequencies.

  • Conformally coated through-hole resistor
  • Resistance values between 1ฮฉ and 200kฮฉ
  • Tolerance as low as ยฑ0.01%
  • TCR of ยฑ2.5 ppm/ยฐC or ยฑ5 ppm/ยฐC
  • Temperature range from -25ยฐC up to +155ยฐC
  • Maximum working voltage of 300V
  • Power rating of 0.25W (at +70ยฐC)
  • Pin pitch of 5.08mm ยฑ0.25mm



Typical applications for the FLC high precision through-hole resistor series include:

  • Sceintific instrumentation
  • Test & Measurement equipment

Alpha Electronics FLC Series Specification Table

AttributesValue
Resistance value1ฮฉ to 200kฮฉ
Toleranceยฑ0.01% to ยฑ1%
TCRยฑ2.5ppm/ยฐC to ยฑ15ppm/ยฐC (-25 to +125ยฐC)
Temperature range-25ยฐC to +155ยฐC
Power rating (at +70ยฐC)0.25W
Maximum voltage300V

Alpha Electronics are manufacturers of some of the most stable and precise resistors on the market. As part of the VPG Foil Resistors product group, the Alpha Electronics brand is globally rewarded for the accuracy and reliability of their Bulk Metalยฎ Foil technology resistors. Alpha Electronics has been living the conviction globally known to engineers for consistently delivering the highly desirable characteristics of โ€œStability, Accuracy and Reliabilityโ€. Please visit https://www.alpha-elec.co.jp for more information.

Specifications

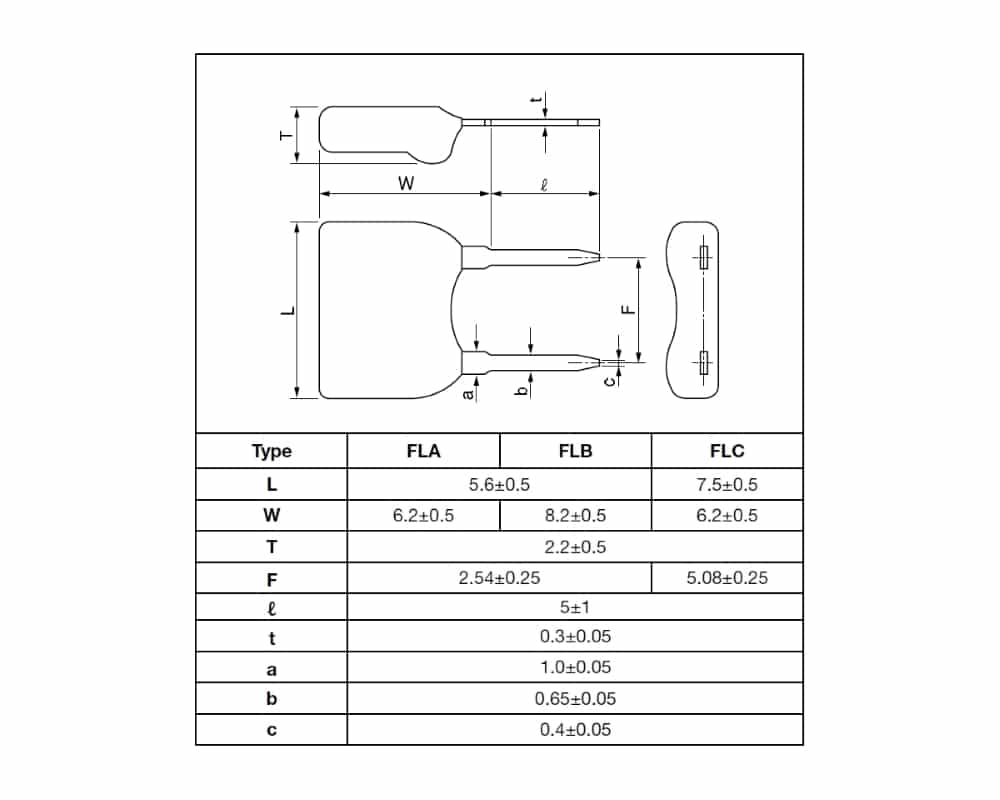

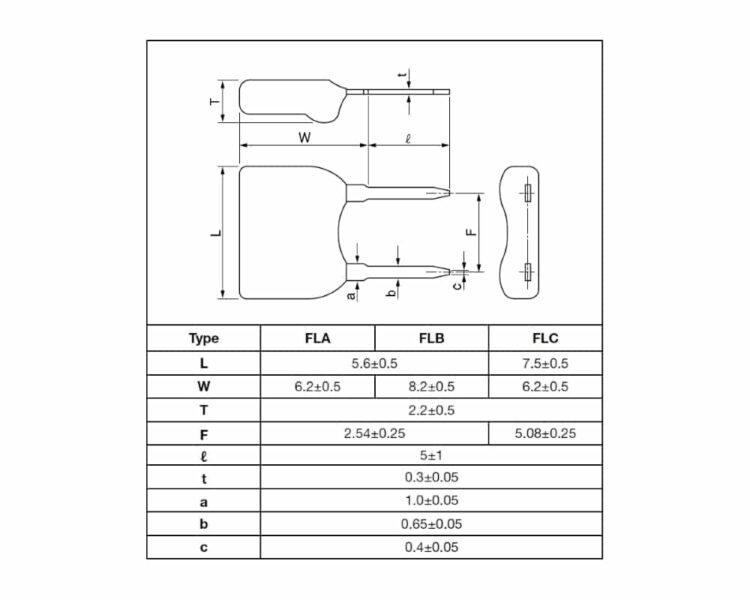

Dimensions 6.20 x 2.20 x 7.50mm
Product Type

,

Minimum Resistance

10ฮฉ
Resistance Value

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Maximum Resistance

200kฮฉ
Tolerance

, , , , ,

Power Rating

Temperature Coefficient

,

Package / Size

,

Temperature Range (ยฐC)

-25 to +155ยฐC
Series / Model

Alpha FLC Series Ordering Info

The FLC resistor series is available with various options including standard resistance values and tolerances. The information below gives an example of the part numbering system used for these resistors and the standard options available.

Below is an example of the part number break down for the FLC resistor series:

alpha_flc_order_code

Alpha Electronics FLC Series - Standard Stocked Parts

Resistance ValuePart Number Value0.1% Tolerance2.5 ppm/ยฐC
30ฮฉ30R000
50ฮฉ50R000
90ฮฉ90R000
100ฮฉ100R00
120ฮฉ120R00
150ฮฉ150R00
200ฮฉ200R00
250ฮฉ250R00
300ฮฉ300R00
350ฮฉ350R00
400ฮฉ400R00
500ฮฉ500R00
600ฮฉ600R00
800ฮฉ800R00
900ฮฉ900R00
1kฮฉ1K0000
2kฮฉ2K0000
2.2kฮฉ2K2000
3kฮฉ3K0000
4kฮฉ4K0000
5kฮฉ5K0000
6kฮฉ6K0000
7kฮฉ7K0000
8kฮฉ8K0000
9kฮฉ9K0000
10kฮฉ10K000
15kฮฉ15K000
20kฮฉ20K000
22kฮฉ22K000
25kฮฉ25K000
40kฮฉ40K000
50kฮฉ50K000
60kฮฉ60K000
70kฮฉ70K000
80kฮฉ80K000
90kฮฉ90K000
100kฮฉ100K00

Product Variations

SKUResistance ValueToleranceTemperature CoefficientSeries / Model
Alpha FLCY 100K00 B100kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 100R00 B100โ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 10K000 B10kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 120R00 B120โ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 150R00 B150โ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 15K000 B15kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 1K0000 B1kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 2K2000 B2.2kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 200R00 B200โ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 20K000 B20kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 22K000 B22kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 250R00 B250โ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 25K000 B25kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 2K0000 B2kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 300R00 B300โ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 30R000 B30โ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 350R00 B350โ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 3K0000 B3kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 400R00 B400โ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 40K000 B40kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 4K0000 B4kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 500R00 B500โ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 50K000 B50kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 50R000 B50โ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 5K0000 B5kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 600R00 B600โ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 60K000 B60kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 6K0000 B6kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 70K000 B70kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 7K0000 B7kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 800R00 B800โ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 80K000 B80kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 8K0000 B8kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 900R00 B900โ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 90K000 B90kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 90R000 B90โ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY 9K0000 B9kโ„ฆยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCY (100ฮฉ - 200kฮฉ) TCustom (100ฮฉ - 200kฮฉ)ยฑ0.01%ยฑ2.5 ppm/ยฐC
Alpha FLCX (100ฮฉ - 200kฮฉ) TCustom (100ฮฉ - 200kฮฉ)ยฑ0.01%ยฑ5 ppm/ยฐC
Alpha FLCY (100ฮฉ - 200kฮฉ) QCustom (100ฮฉ - 200kฮฉ)ยฑ0.02%ยฑ2.5 ppm/ยฐC
Alpha FLCX (100ฮฉ - 200kฮฉ) QCustom (100ฮฉ - 200kฮฉ)ยฑ0.02%ยฑ5 ppm/ยฐC
Alpha FLCY (100ฮฉ - 200kฮฉ) ACustom (100ฮฉ - 200kฮฉ)ยฑ0.05%ยฑ2.5 ppm/ยฐC
Alpha FLCX (100ฮฉ - 200kฮฉ) ACustom (100ฮฉ - 200kฮฉ)ยฑ0.05%ยฑ5 ppm/ยฐC
Alpha FLCY (100ฮฉ - 200kฮฉ) BCustom (100ฮฉ - 200kฮฉ)ยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCX (100ฮฉ - 200kฮฉ) BCustom (100ฮฉ - 200kฮฉ)ยฑ0.1%ยฑ5 ppm/ยฐC
Alpha FLCY (10ฮฉ - 30ฮฉ) DCustom (10ฮฉ - 30ฮฉ)ยฑ0.5%ยฑ2.5 ppm/ยฐC
Alpha FLCX (10ฮฉ - 30ฮฉ) DCustom (10ฮฉ - 30ฮฉ)ยฑ0.5%ยฑ5 ppm/ยฐC
Alpha FLCY (10ฮฉ - 30ฮฉ) FCustom (10ฮฉ - 30ฮฉ)ยฑ1%ยฑ2.5 ppm/ยฐC
Alpha FLCX (10ฮฉ - 30ฮฉ) FCustom (10ฮฉ - 30ฮฉ)ยฑ1%ยฑ5 ppm/ยฐC
Alpha FLCY (30ฮฉ - 100kฮฉ) QCustom (30ฮฉ - 100kฮฉ)ยฑ0.02%ยฑ2.5 ppm/ยฐC
Alpha FLCX (30ฮฉ - 100kฮฉ) QCustom (30ฮฉ - 100kฮฉ)ยฑ0.02%ยฑ5 ppm/ยฐC
Alpha FLCY (30ฮฉ - 100kฮฉ) ACustom (30ฮฉ - 100kฮฉ)ยฑ0.05%ยฑ2.5 ppm/ยฐC
Alpha FLCX (30ฮฉ - 100kฮฉ) ACustom (30ฮฉ - 100kฮฉ)ยฑ0.05%ยฑ5 ppm/ยฐC
Alpha FLCY (30ฮฉ - 100kฮฉ) BCustom (30ฮฉ - 100kฮฉ)ยฑ0.1%ยฑ2.5 ppm/ยฐC
Alpha FLCX (30ฮฉ - 100kฮฉ) BCustom (30ฮฉ - 100kฮฉ)ยฑ0.1%ยฑ5 ppm/ยฐC
Alpha FLCY (30ฮฉ - 100kฮฉ) DCustom (30ฮฉ - 100kฮฉ)ยฑ0.5%ยฑ2.5 ppm/ยฐC
Alpha FLCX (30ฮฉ - 100kฮฉ) DCustom (30ฮฉ - 100kฮฉ)ยฑ0.5%ยฑ5 ppm/ยฐC

FLx Series Products

 Product nameSKUDatasheet
VPG FLA SeriesVPG FLA Series View Product
VPG FLB SeriesVPG FLB Series View Product
VPG FLC SeriesVPG FLC Series View Product

Alpha FLC Series Ordering Info

The FLC resistor series is available with various options including standard resistance values and tolerances. The information below gives an example of the part numbering system used for these resistors and the standard options available.

Below is an example of the part number break down for the FLC resistor series:

alpha_flc_order_code

Alpha Electronics FLC Series – Standard Stocked Parts


Resistance Value Part Number Value 0.1% Tolerance 2.5 ppm/ยฐC
30ฮฉ 30R000
50ฮฉ 50R000
90ฮฉ 90R000
100ฮฉ 100R00
120ฮฉ 120R00
150ฮฉ 150R00
200ฮฉ 200R00
250ฮฉ 250R00
300ฮฉ 300R00
350ฮฉ 350R00
400ฮฉ 400R00
500ฮฉ 500R00
600ฮฉ 600R00
800ฮฉ 800R00
900ฮฉ 900R00
1kฮฉ 1K0000
2kฮฉ 2K0000
2.2kฮฉ 2K2000
3kฮฉ 3K0000
4kฮฉ 4K0000
5kฮฉ 5K0000
6kฮฉ 6K0000
7kฮฉ 7K0000
8kฮฉ 8K0000
9kฮฉ 9K0000
10kฮฉ 10K000
15kฮฉ 15K000
20kฮฉ 20K000
22kฮฉ 22K000
25kฮฉ 25K000
40kฮฉ 40K000
50kฮฉ 50K000
60kฮฉ 60K000
70kฮฉ 70K000
80kฮฉ 80K000
90kฮฉ 90K000
100kฮฉ 100K00
