RARA ULV1000

Product Features

Metal clad wire wound resistor
Option of flying leads, parallel or series connections
Inductive or non-inductive design
Insulation resistance of 20MΩ minimum
Temperature range of -55°C up to +200°C
UL approved
Cement moulding with an extruded aluminium housing
Short time overload of 10 x power rating is 5 seconds

Datasheet

Resistance Value

Tolerance

Inductive or Non Inductive

Termination / Connection

Clear

Custom resistance value (Ω) *
Custom AT Range (AT) *
Custom Capacity (lbs) *
Custom Pressure (Bar/PSI) *
Custom Resistance Value Element 1 (Ω) *
Custom Resistance Value Element 2 (Ω) *
Custom lead length (mm) *
Custom lead length (inches) *

Quantity

Add to Compare

The ULV1000 metal clad wire wound resistor series from RARA offers a power rating of up to 1000W on a heat sink (400W in free air) with available resistance values between 0.1Ω and 140Ω (inductive design) or between 0.1Ω and 36Ω (non-inductive design). These high power resistors are UL approved and available with tolerances of ±1.0%, ±2.0%, ±5.0% and ±10.0% as standard with other options available including flying leads or tab terminals, as well as inductive or non-inductive resistive windings. The ULV1000 series from RARA have a cement moulding with an extruded aluminium housing providing strong and rugged protection all with a temperature range from -55°C up to +200°C

Metal clad wire wound resistor
Cement moulding with an extruded aluminium housing
Option of flying leads, parallel or series terminal connections
Inductive resistance ranges available between 0.17Ω and 140Ω (flying leads), 0.1Ω and 18Ω (parallel tab terminal connection) or 18.1Ω and 90Ω (serial tab terminal connection)
Non-inductive resistance ranges available between 0.17Ω and 36Ω (flying leads), 0.1Ω and 9Ω (parallel terminal connection) or 9.1Ω and 36Ω (serial terminal connection)
TCR of +260 ppm/°C maximum
Tolerance values available of ±1.0%, ±2.0%, ±5.0% and ±10.0%
Power rating of 1000W on a heat sink (400W in free air)
Insulation resistance of 20MΩ minimum
UL approved
Temperature range between -55°C and +200°C
Short time overload of 10 x power rating for 5 seconds

Typical applications for the ULV series include:

Motor drives
Braking and snubbing applications
Power sources for industrial equipment

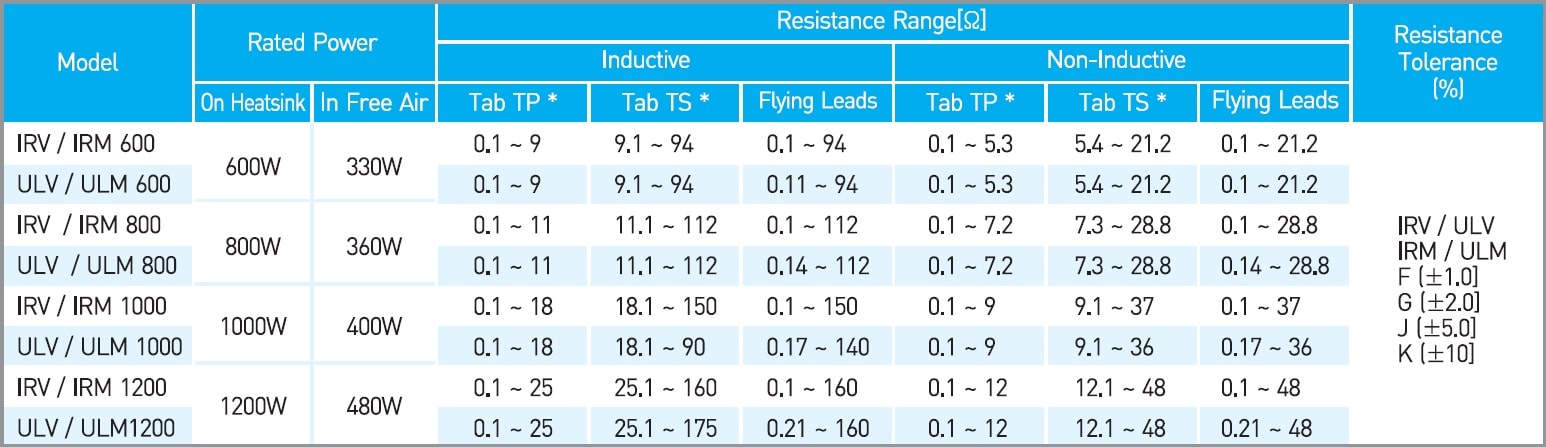

Specifications

Weight	1.83500 kg
Dimensions	59.00 x 61.00 x 335.00mm
Product Type	Metal Clad, Wirewound, Resistor
Series / Model	ULV
Power Rating	400W, 1kW
Minimum Resistance	0.1Ω
Maximum Resistance	140Ω
Tolerance	±1%, ±2%, ±5%, ±10%
Temperature Coefficient	±260 ppm/°C
Insulation Resistance	20MΩ minimum
Inductive or Non Inductive	Inductive, Non Inductive
Termination / Connection	Flying Leads, Parallel Tab Terminal Connection, Serial Tab Terminal Connection
Temperature Range (°C)	-55 to +200°C (Cement)

Series/Model (ULVXXX)

ULV1000

Connection * (X)

P Parallel
S Series

Inductive/Non-Inductive (X)

(Blank) Inductive
N Non-Inductive

Resistance Value (XXXXΩ)

Resistance value expressed in ohms, for example 220.5Ω or 2Ω.

Tolerance (X)

F: ±1%
G: ±2%
J: ±5%
K: ±10%

Termination (FLXXX)

FL XXX Flying Lead **
(Blank) Tab Terminal

_{* Defined by the resistance value chosen, see datasheet for full details}
_{** Please include requested lead length with request, for example, FL300 for 300mm flying leads}

Product Variations

SKU	Resistance Value	Tolerance	Inductive or Non Inductive	Termination / Connection
RARA ULV1000 Series	Custom (0.17Ω - 9Ω)	±1%	Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (0.17Ω - 9Ω)	±1%	Inductive	Parallel Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (0.17Ω - 9Ω)	±1%	Non Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (0.17Ω - 9Ω)	±1%	Non Inductive	Parallel Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (0.17Ω - 9Ω)	±10%	Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (0.17Ω - 9Ω)	±10%	Inductive	Parallel Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (0.17Ω - 9Ω)	±10%	Non Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (0.17Ω - 9Ω)	±10%	Non Inductive	Parallel Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (0.17Ω - 9Ω)	±2%	Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (0.17Ω - 9Ω)	±2%	Inductive	Parallel Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (0.17Ω - 9Ω)	±2%	Non Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (0.17Ω - 9Ω)	±2%	Non Inductive	Parallel Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (0.17Ω - 9Ω)	±5%	Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (0.17Ω - 9Ω)	±5%	Inductive	Parallel Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (0.17Ω - 9Ω)	±5%	Non Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (0.17Ω - 9Ω)	±5%	Non Inductive	Parallel Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (0.1Ω - 0.16Ω)	±1%	Inductive	Parallel Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (0.1Ω - 0.16Ω)	±1%	Non Inductive	Parallel Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (0.1Ω - 0.16Ω)	±10%	Inductive	Parallel Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (0.1Ω - 0.16Ω)	±10%	Non Inductive	Parallel Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (0.1Ω - 0.16Ω)	±2%	Inductive	Parallel Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (0.1Ω - 0.16Ω)	±2%	Non Inductive	Parallel Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (0.1Ω - 0.16Ω)	±5%	Inductive	Parallel Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (0.1Ω - 0.16Ω)	±5%	Non Inductive	Parallel Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (18.1Ω - 36Ω)	±1%	Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (18.1Ω - 36Ω)	±1%	Inductive	Serial Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (18.1Ω - 36Ω)	±1%	Non Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (18.1Ω - 36Ω)	±1%	Non Inductive	Serial Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (18.1Ω - 36Ω)	±10%	Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (18.1Ω - 36Ω)	±10%	Inductive	Serial Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (18.1Ω - 36Ω)	±10%	Non Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (18.1Ω - 36Ω)	±10%	Non Inductive	Serial Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (18.1Ω - 36Ω)	±2%	Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (18.1Ω - 36Ω)	±2%	Inductive	Serial Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (18.1Ω - 36Ω)	±2%	Non Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (18.1Ω - 36Ω)	±2%	Non Inductive	Serial Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (18.1Ω - 36Ω)	±5%	Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (18.1Ω - 36Ω)	±5%	Inductive	Serial Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (18.1Ω - 36Ω)	±5%	Non Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (18.1Ω - 36Ω)	±5%	Non Inductive	Serial Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (36.1Ω - 90Ω)	±1%	Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (36.1Ω - 90Ω)	±1%	Inductive	Serial Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (36.1Ω - 90Ω)	±10%	Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (36.1Ω - 90Ω)	±10%	Inductive	Serial Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (36.1Ω - 90Ω)	±2%	Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (36.1Ω - 90Ω)	±2%	Inductive	Serial Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (36.1Ω - 90Ω)	±5%	Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (36.1Ω - 90Ω)	±5%	Inductive	Serial Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (9.1Ω - 18Ω)	±1%	Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (9.1Ω - 18Ω)	±1%	Inductive	Parallel Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (9.1Ω - 18Ω)	±1%	Non Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (9.1Ω - 18Ω)	±1%	Non Inductive	Serial Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (9.1Ω - 18Ω)	±10%	Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (9.1Ω - 18Ω)	±10%	Inductive	Parallel Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (9.1Ω - 18Ω)	±10%	Non Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (9.1Ω - 18Ω)	±10%	Non Inductive	Serial Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (9.1Ω - 18Ω)	±2%	Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (9.1Ω - 18Ω)	±2%	Inductive	Parallel Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (9.1Ω - 18Ω)	±2%	Non Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (9.1Ω - 18Ω)	±2%	Non Inductive	Serial Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (9.1Ω - 18Ω)	±5%	Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (9.1Ω - 18Ω)	±5%	Inductive	Parallel Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (9.1Ω - 18Ω)	±5%	Non Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (9.1Ω - 18Ω)	±5%	Non Inductive	Serial Tab Terminal Connection	Request Quote
RARA ULV1000 Series	Custom (90.1Ω - 140Ω)	±1%	Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (90.1Ω - 140Ω)	±10%	Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (90.1Ω - 140Ω)	±2%	Inductive	Flying Leads	Request Quote
RARA ULV1000 Series	Custom (90.1Ω - 140Ω)	±5%	Inductive	Flying Leads	Request Quote

ULV Series Products

Electronic Components

Product name	Dimensions	Power Rating	Minimum Resistance	Maximum Resistance	Tolerance	Temperature Coefficient	Termination / Connection	Add to enquiry
RARA ULV60	41.00 x 22.00 x 100.00mm	60W	0.1Ω	400Ω	±0.5%, ±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Tab Terminals	Add to Enquiry
RARA ULV80	41.00 x 22.00 x 150.00mm	80W	0.1Ω	910Ω	±0.5%, ±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Tab Terminals	Add to Enquiry
RARA ULV100	41.00 x 22.00 x 165.00mm	100W	0.1Ω	1.1kΩ	±0.5%, ±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Tab Terminals	Add to Enquiry
RARA ULV120	41.00 x 22.00 x 182.00mm	120W	0.1Ω	1.3kΩ	±0.5%, ±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Tab Terminals	Add to Enquiry
RARA ULV150	41.00 x 22.00 x 210.00mm	150W	0.1Ω	1.6kΩ	±0.5%, ±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Tab Terminals	Add to Enquiry
RARA ULV200	60.00 x 30.00 x 165.00mm	200W	0.1Ω	2.2kΩ	±0.5%, ±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Tab Terminals	Add to Enquiry
RARA ULV300	60.00 x 30.00 x 215.00mm	300W	0.1Ω	2.7kΩ	±0.5%, ±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Tab Terminals	Add to Enquiry
RARA ULV400	60.00 x 30.00 x 265.00mm	400W	0.1Ω	4.3kΩ	±0.5%, ±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Tab Terminals	Add to Enquiry
RARA ULV500	60.00 x 30.00 x 335.00mm	500W	0.1Ω	6.8kΩ	±0.5%, ±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Tab Terminals	Add to Enquiry
RARA ULV600	59.00 x 61.00 x 235.00mm	330W, 600W	0.1Ω	94Ω	±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Parallel Tab Terminal Connection, Serial Tab Terminal Connection	Add to Enquiry
RARA ULV800	59.00 x 61.00 x 285.00mm	360W, 800W	0.1Ω	112Ω	±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Parallel Tab Terminal Connection, Serial Tab Terminal Connection	Add to Enquiry
RARA ULV1000	59.00 x 61.00 x 335.00mm	400W, 1kW	0.1Ω	140Ω	±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Parallel Tab Terminal Connection, Serial Tab Terminal Connection	Add to Enquiry
RARA ULV1200	59.00 x 61.00 x 405.00mm	480W, 1.2kW	0.1Ω	160Ω	±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Parallel Tab Terminal Connection, Serial Tab Terminal Connection	Add to Enquiry
