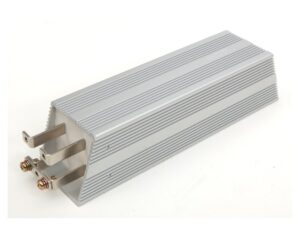

RARA IRV1200

Product Features

Metal clad wire wound resistor
Option of flying leads, parallel or series connections
Inductive or non-inductive design
Insulation resistance of 20MΩ minimum
Temperature range of -55°C up to +200°C
Cement moulding with an extruded aluminium housing
Short time overload of 10 x power rating is 5 seconds

Datasheet

Resistance Value

Tolerance

Inductive or Non Inductive

Termination / Connection

Clear

Custom resistance value (Ω) *
Custom AT Range (AT) *
Custom Capacity (lbs) *
Custom Pressure (Bar/PSI) *
Custom Resistance Value Element 1 (Ω) *
Custom Resistance Value Element 2 (Ω) *
Custom lead length (mm) *
Custom lead length (inches) *

Quantity

Add to Compare

The IRV1200 metal clad wire wound resistor series from RARA offers a power rating of up to 1200W on a heat sink (480W in free air) with available resistance values between 0.1Ω and 160Ω (inductive design) or between 0.1Ω and 48Ω (non-inductive design). These high power resistors are available with tolerances of ±1.0%, ±2.0%, ±5.0% and ±10.0% as standard with other options available including flying leads or tab terminals, as well as inductive or non-inductive resistive windings. The IRV1200 series from RARA have a cement moulding with an extruded aluminium housing providing strong and rugged protection all with a temperature range from -55°C up to +200°C

Metal clad wire wound resistor
Cement moulding with an extruded aluminium housing
Option of flying leads, parallel or series terminal connections
Inductive resistance ranges available between 0.1Ω and 160Ω (flying leads), 0.1Ω and 25Ω (parallel tab terminal connection) or 25.1Ω and 160Ω (serial tab terminal connection)
Non-inductive resistance ranges available between 0.1Ω and 48Ω (flying leads), 0.1Ω and 12Ω (parallel terminal connection) or 12.1Ω and 48Ω (serial terminal connection)
TCR of +260 ppm/°C maximum
Tolerance values available of ±1.0%, ±2.0%, ±5.0% and ±10.0%
Power rating of 1200W on a heat sink (480W in free air)
Insulation resistance of 20MΩ minimum
Temperature range between -55°C and +200°C
Short time overload of 10 x power rating for 5 seconds

Typical applications for the IRV series include:

Motor drives
braking and snubbing applications
Power sources for industrial equipment

Specifications

Weight	2.30400 kg
Dimensions	59.00 x 61.00 x 405.00mm
Product Type	Metal Clad, Wirewound, Resistor
Series / Model	IRV
Power Rating	480W, 1.2kW
Minimum Resistance	0.1Ω
Maximum Resistance	160Ω
Tolerance	±1%, ±2%, ±5%, ±10%
Temperature Coefficient	±260 ppm/°C
Insulation Resistance	20MΩ minimum
Inductive or Non Inductive	Inductive, Non Inductive
Termination / Connection	Flying Leads, Parallel Tab Terminal Connection, Serial Tab Terminal Connection
Temperature Range (°C)	-55 to +200°C (Cement)

Series/Model (IRVXXX)

IRV1200

Connection * (X)

P Parallel
S Series

Inductive/Non-Inductive (X)

(Blank) Inductive
N Non-Inductive

Resistance Value (XXXXΩ)

Resistance value expressed in ohms, for example 220.5Ω or 2Ω

Tolerance (X)

F: ±1%
G: ±2%
J: ±5%
K: ±10%

Termination (FLXXX)

FL XXX Flying Lead **
(Blank) Tab Terminal

_{* Defined by the resistance value chosen, see datasheet for full details}
_{** Please include requested lead length with request, for example, FL300 for 300mm flying leads}

Product Variations

SKU	Resistance Value	Tolerance	Inductive or Non Inductive	Termination / Connection
RARA IRV1200 Series	Custom (0.1Ω - 12Ω)	±1%	Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (0.1Ω - 12Ω)	±1%	Inductive	Parallel Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (0.1Ω - 12Ω)	±1%	Non Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (0.1Ω - 12Ω)	±1%	Non Inductive	Parallel Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (0.1Ω - 12Ω)	±10%	Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (0.1Ω - 12Ω)	±10%	Inductive	Parallel Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (0.1Ω - 12Ω)	±10%	Non Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (0.1Ω - 12Ω)	±10%	Non Inductive	Parallel Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (0.1Ω - 12Ω)	±2%	Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (0.1Ω - 12Ω)	±2%	Inductive	Parallel Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (0.1Ω - 12Ω)	±2%	Non Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (0.1Ω - 12Ω)	±2%	Non Inductive	Parallel Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (0.1Ω - 12Ω)	±5%	Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (0.1Ω - 12Ω)	±5%	Inductive	Parallel Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (0.1Ω - 12Ω)	±5%	Non Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (0.1Ω - 12Ω)	±5%	Non Inductive	Parallel Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (12.1Ω - 25Ω)	±1%	Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (12.1Ω - 25Ω)	±1%	Inductive	Parallel Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (12.1Ω - 25Ω)	±1%	Non Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (12.1Ω - 25Ω)	±1%	Non Inductive	Serial Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (12.1Ω - 25Ω)	±10%	Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (12.1Ω - 25Ω)	±10%	Inductive	Parallel Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (12.1Ω - 25Ω)	±10%	Non Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (12.1Ω - 25Ω)	±10%	Non Inductive	Serial Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (12.1Ω - 25Ω)	±2%	Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (12.1Ω - 25Ω)	±2%	Inductive	Parallel Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (12.1Ω - 25Ω)	±2%	Non Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (12.1Ω - 25Ω)	±2%	Non Inductive	Serial Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (12.1Ω - 25Ω)	±5%	Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (12.1Ω - 25Ω)	±5%	Inductive	Parallel Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (12.1Ω - 25Ω)	±5%	Non Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (12.1Ω - 25Ω)	±5%	Non Inductive	Serial Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (25.1Ω - 48Ω)	±1%	Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (25.1Ω - 48Ω)	±1%	Inductive	Serial Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (25.1Ω - 48Ω)	±1%	Non Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (25.1Ω - 48Ω)	±1%	Non Inductive	Serial Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (25.1Ω - 48Ω)	±10%	Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (25.1Ω - 48Ω)	±10%	Inductive	Serial Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (25.1Ω - 48Ω)	±10%	Non Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (25.1Ω - 48Ω)	±10%	Non Inductive	Serial Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (25.1Ω - 48Ω)	±2%	Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (25.1Ω - 48Ω)	±2%	Inductive	Serial Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (25.1Ω - 48Ω)	±2%	Non Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (25.1Ω - 48Ω)	±2%	Non Inductive	Serial Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (25.1Ω - 48Ω)	±5%	Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (25.1Ω - 48Ω)	±5%	Inductive	Serial Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (25.1Ω - 48Ω)	±5%	Non Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (25.1Ω - 48Ω)	±5%	Non Inductive	Serial Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (48.1Ω - 160Ω)	±1%	Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (48.1Ω - 160Ω)	±1%	Inductive	Serial Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (48.1Ω - 160Ω)	±10%	Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (48.1Ω - 160Ω)	±10%	Inductive	Serial Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (48.1Ω - 160Ω)	±2%	Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (48.1Ω - 160Ω)	±2%	Inductive	Serial Tab Terminal Connection	Request Quote
RARA IRV1200 Series	Custom (48.1Ω - 160Ω)	±5%	Inductive	Flying Leads	Request Quote
RARA IRV1200 Series	Custom (48.1Ω - 160Ω)	±5%	Inductive	Serial Tab Terminal Connection	Request Quote

IRV Series Products

Electronic Components

Product name	Dimensions	Power Rating	Minimum Resistance	Maximum Resistance	Tolerance	Temperature Coefficient	Termination / Connection	Add to enquiry
RARA IRV60	41.00 x 22.00 x 100.00mm	60W	0.1Ω	400Ω	±0.5%, ±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Tab Terminals	Add to Enquiry
RARA IRV80	41.00 x 22.00 x 150.00mm	80W	0.1Ω	910Ω	±0.5%, ±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Tab Terminals	Add to Enquiry
RARA IRV100	41.00 x 22.00 x 165.00mm	100W	0.1Ω	1.1kΩ	±0.5%, ±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Tab Terminals	Add to Enquiry
RARA IRV120	41.00 x 22.00 x 182.00mm	120W	0.1Ω	1.3kΩ	±0.5%, ±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Tab Terminals	Add to Enquiry
RARA IRV150	41.00 x 22.00 x 210.00mm	150W	0.1Ω	1.6kΩ	±0.5%, ±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Tab Terminals	Add to Enquiry
RARA IRV200	60.00 x 30.00 x 165.00mm	200W	0.1Ω	2.2kΩ	±0.5%, ±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Tab Terminals	Add to Enquiry
RARA IRV300	60.00 x 30.00 x 215.00mm	300W	0.1Ω	2.7kΩ	±0.5%, ±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Tab Terminals	Add to Enquiry
RARA IRV400	60.00 x 30.00 x 265.00mm	400W	0.1Ω	4.3kΩ	±0.5%, ±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Tab Terminals	Add to Enquiry
RARA IRV500	60.00 x 30.00 x 335.00mm	500W	0.1Ω	6.8kΩ	±0.5%, ±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Tab Terminals	Add to Enquiry
RARA IRV600	59.00 x 61.00 x 235.00mm	330W, 600W	0.1Ω	94Ω	±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Parallel Tab Terminal Connection, Serial Tab Terminal Connection	Add to Enquiry
RARA IRV800	59.00 x 61.00 x 285.00mm	360W, 800W	0.1Ω	112Ω	±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Parallel Tab Terminal Connection, Serial Tab Terminal Connection	Add to Enquiry
RARA IRV1000	59.00 x 61.00 x 335.00mm	400W, 1kW	0.1Ω	150Ω	±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Parallel Tab Terminal Connection, Serial Tab Terminal Connection	Add to Enquiry
RARA IRV1200	59.00 x 61.00 x 405.00mm	480W, 1.2kW	0.1Ω	160Ω	±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Flying Leads, Parallel Tab Terminal Connection, Serial Tab Terminal Connection	Add to Enquiry
