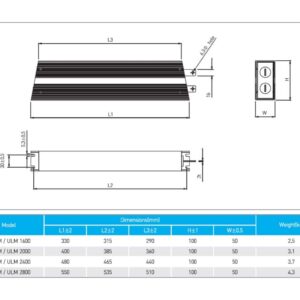

rara-irv-ulv-irm-ulm-600-1200-dimensions

RARA IRM2400

Product Features

Metal clad wire wound resistor
Resistance options from 0.6Ω up to 144Ω
Power rating of up to 720W (free air)
Tolerance options between ±1% and ±10.0%
TCR of +260 ppm/°C maximum
For UL Approval see the ULM

Datasheet

Resistance Value

Tolerance

Inductive or Non Inductive

Termination / Connection

Lead Length

Clear

Custom resistance value (Ω) *
Custom AT Range (AT) *
Custom Capacity (lbs) *
Custom Pressure (Bar/PSI) *
Custom Resistance Value Element 1 (Ω) *
Custom Resistance Value Element 2 (Ω) *
Custom lead length (mm) *
Custom lead length (inches) *

Quantity

Add to Compare

The IRM2400 metal clad wire wound resistor series from RARA offers a power rating of up to 720W in free air, with available resistance values between 2.5Ω and 144Ω (inductive design) or between 0.6Ω and 37Ω (non-inductive design). These high power resistors are available with tolerances of ±1.0%, ±5.0% and ±10.0% as standard with tab terminals, as well as inductive or non-inductive resistive windings. The IRM2400 series from RARA are metal cover type with an extruded aluminium housing providing strong and rugged protection all with a temperature range from -55°C up to +200°C

Metal clad wire wound resistor
Tab terminal connections
Inductive resistance ranges available between 2.5Ω and 144Ω
Non-inductive resistance ranges available between 0.6Ω and 37Ω
TCR of +260 ppm/°C maximum
Tolerance values available of ±1.0%, ±5.0% and ±10.0%
Power rating of 720W in free air
Insulation resistance of 20MΩ minimum
Metal cover type with an extruded aluminium housing
Temperature range between -55°C and +200°C
Short time overload of 10 x power rating for 5 seconds

Typical applications for the IRM series include:

Motor drives
braking and snubbing applications
Power sources for industrial equipment

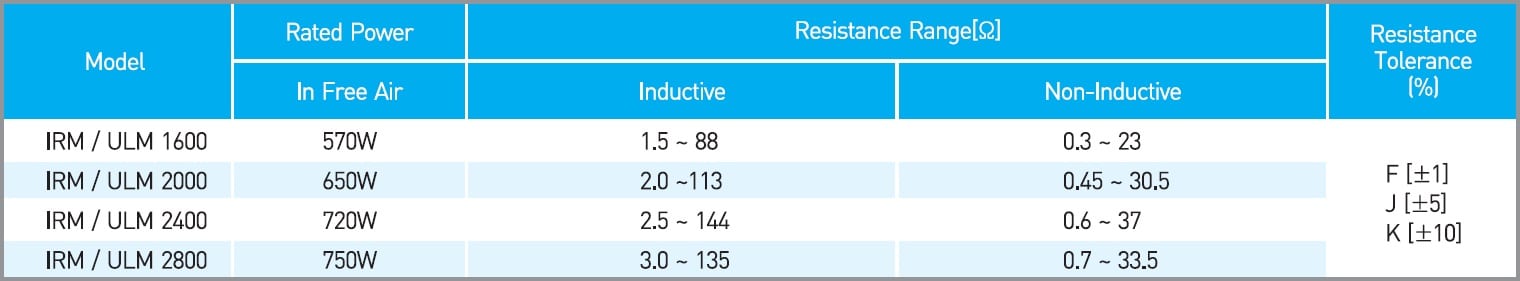

Specifications

Weight	3.70000 kg
Dimensions	100.00 x 50.00 x 480.00mm
Product Type	Metal Clad, Wirewound, Resistor
Series / Model	IRM
Power Rating	720W
Minimum Resistance	0.6Ω
Maximum Resistance	144Ω
Tolerance	±1%, ±5%, ±10%
Temperature Coefficient	±260 ppm/°C
Insulation Resistance	20MΩ minimum
Inductive or Non Inductive	Inductive, Non Inductive
Termination / Connection	Flying Leads, Tab Terminals
Temperature Range (°C)	-55 to +200°C (Cement)

Series/Model (IRMXXX)

IRM2400

Inductive/Non-Inductive (X)

(Blank) Inductive
N Non-Inductive

Resistance Value (XXXXΩ)

Resistance value expressed in ohms, for example 220.5Ω or 2Ω.

Tolerance (X)

F: ±1%
J: ±5%
K: ±10%

Termination (FLXXX)

FL XXX Flying Lead **
(Blank) Tab Terminal

Termination (FLXXX)

FL XXX Flying Lead **
(Blank) Tab Terminal

_{* Defined by the resistance value chosen, see datasheet for full details}
_{** Please include requested lead length with request, for example, FL300 for 300mm flying leads}

Product Variations

SKU	Resistance Value	Tolerance	Inductive or Non Inductive	Termination / Connection	Lead Length
RARA IRM2400 Series	Custom (0.6Ω - 2.5Ω)	±1%	Non Inductive	Flying Leads	Custom (mm)	Request Quote
RARA IRM2400 Series	Custom (0.6Ω - 2.5Ω)	±1%	Non Inductive	Tab Terminals	No cable	Request Quote
RARA IRM2400 Series	Custom (0.6Ω - 2.5Ω)	±10%	Non Inductive	Flying Leads	Custom (mm)	Request Quote
RARA IRM2400 Series	Custom (0.6Ω - 2.5Ω)	±10%	Non Inductive	Tab Terminals	No cable	Request Quote
RARA IRM2400 Series	Custom (0.6Ω - 2.5Ω)	±5%	Non Inductive	Flying Leads	Custom (mm)	Request Quote
RARA IRM2400 Series	Custom (0.6Ω - 2.5Ω)	±5%	Non Inductive	Tab Terminals	No cable	Request Quote
RARA IRM2400 Series	Custom (2.5Ω - 37Ω)	±1%	Inductive	Flying Leads	Custom (mm)	Request Quote
RARA IRM2400 Series	Custom (2.5Ω - 37Ω)	±1%	Inductive	Tab Terminals	No cable	Request Quote
RARA IRM2400 Series	Custom (2.5Ω - 37Ω)	±1%	Non Inductive	Flying Leads	Custom (mm)	Request Quote
RARA IRM2400 Series	Custom (2.5Ω - 37Ω)	±1%	Non Inductive	Tab Terminals	No cable	Request Quote
RARA IRM2400 Series	Custom (2.5Ω - 37Ω)	±10%	Inductive	Flying Leads	Custom (mm)	Request Quote
RARA IRM2400 Series	Custom (2.5Ω - 37Ω)	±10%	Inductive	Tab Terminals	No cable	Request Quote
RARA IRM2400 Series	Custom (2.5Ω - 37Ω)	±10%	Non Inductive	Flying Leads	Custom (mm)	Request Quote
RARA IRM2400 Series	Custom (2.5Ω - 37Ω)	±10%	Non Inductive	Tab Terminals	No cable	Request Quote
RARA IRM2400 Series	Custom (2.5Ω - 37Ω)	±5%	Inductive	Flying Leads	Custom (mm)	Request Quote
RARA IRM2400 Series	Custom (2.5Ω - 37Ω)	±5%	Inductive	Tab Terminals	No cable	Request Quote
RARA IRM2400 Series	Custom (2.5Ω - 37Ω)	±5%	Non Inductive	Flying Leads	Custom (mm)	Request Quote
RARA IRM2400 Series	Custom (2.5Ω - 37Ω)	±5%	Non Inductive	Tab Terminals	No cable	Request Quote
RARA IRM2400 Series	Custom (37Ω - 144Ω)	±1%	Inductive	Flying Leads	Custom (mm)	Request Quote
RARA IRM2400 Series	Custom (37Ω - 144Ω)	±1%	Inductive	Tab Terminals	No cable	Request Quote
RARA IRM2400 Series	Custom (37Ω - 144Ω)	±10%	Inductive	Flying Leads	Custom (mm)	Request Quote
RARA IRM2400 Series	Custom (37Ω - 144Ω)	±10%	Inductive	Tab Terminals	No cable	Request Quote
RARA IRM2400 Series	Custom (37Ω - 144Ω)	±5%	Inductive	Flying Leads	Custom (mm)	Request Quote
RARA IRM2400 Series	Custom (37Ω - 144Ω)	±5%	Inductive	Tab Terminals	No cable	Request Quote

IRM Series Products

Electronic Components

Product name	Dimensions	Power Rating	Minimum Resistance	Maximum Resistance	Tolerance	Temperature Coefficient	Add to enquiry
RARA IRM600	59.00 x 61.00 x 235.00mm	330W, 600W	0.1Ω	94Ω	±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Add to Enquiry
RARA IRM800	59.00 x 61.00 x 285.00mm	360W, 800W	0.1Ω	112Ω	±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Add to Enquiry
RARA IRM1000	59.00 x 61.00 x 335.00mm	400W, 1kW	0.1Ω	150Ω	±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Add to Enquiry
RARA IRM1200	59.00 x 61.00 x 405.00mm	480W, 1.2kW	0.1Ω	160Ω	±1%, ±2%, ±5%, ±10%	±260 ppm/°C	Add to Enquiry
RARA IRM1600	100.00 x 50.00 x 330.00mm	570W	0.3Ω	88Ω	±1%, ±5%, ±10%	±260 ppm/°C	Add to Enquiry
RARA IRM2000	100.00 x 50.00 x 400.00mm	650W	0.45Ω	133Ω	±1%, ±5%, ±10%	±260 ppm/°C	Add to Enquiry
RARA IRM2400	100.00 x 50.00 x 480.00mm	720W	0.6Ω	144Ω	±1%, ±5%, ±10%	±260 ppm/°C	Add to Enquiry
RARA IRM2800	100.00 x 50.00 x 550.00mm	750W	0.7Ω	135Ω	±1%, ±5%, ±10%	±260 ppm/°C	Add to Enquiry
