Exxelia Ohmcraft HVR 21
Specifications

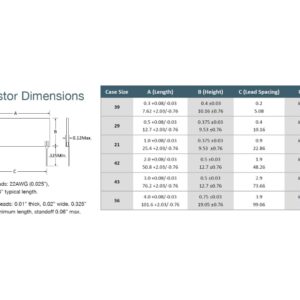

Dimensions | 9.53 x 3.05 x 25.40mm |
---|---|
Product Type | |
Design Technology | THT (through hole) |
Package / Size | |
Minimum Resistance | 100kΩ |
Maximum Resistance | 1TΩ |
Tolerance | |
Temperature Coefficient | ±25 ppm/°C, ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C , >±200 ppm/°C |
Power Rating | |
Voltage Rating | |
Coating | Bare, Powder, Single Surface Epoxy |
Termination / Connection | Spade Terminal 100% Tin RoHS, Spade Terminal Sn60Pb40 solder, Wire 22AWG 100% Tin RoHS, Wire 22AWG Sn60Pb40 solder |
Temperature Range (°C) | -55 to +150°C |
Series / Model |
HVR Series Products

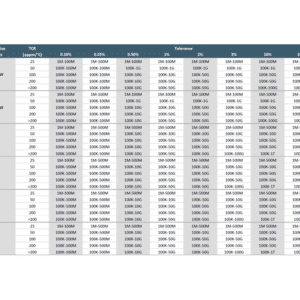

Product name | Package / Size | Minimum Resistance | Maximum Resistance | Tolerance | Temperature Coefficient | Power Rating | Voltage Rating | Add to enquiry | |
---|---|---|---|---|---|---|---|---|---|
Exxelia Ohmcraft HVR 39 | 39 | 100kΩ | 1TΩ | ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20% | ±25 ppm/°C, ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C , >±200 ppm/°C | 0.5W | 2kV | Add to Enquiry | |
Exxelia Ohmcraft HVR 29 | 29 | 100kΩ | 1TΩ | ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20% | ±25 ppm/°C, ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C , >±200 ppm/°C | 0.5W | 4kV | Add to Enquiry | |
Exxelia Ohmcraft HVR 21 | 21 | 100kΩ | 1TΩ | ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20% | ±25 ppm/°C, ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C , >±200 ppm/°C | 1W | 10kV | Add to Enquiry | |
Exxelia Ohmcraft HVR 42 | 42 | 100kΩ | 1TΩ | ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20% | ±25 ppm/°C, ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C , >±200 ppm/°C | 2W | 20kV | Add to Enquiry | |
Exxelia Ohmcraft HVR 43 | 43 | 100kΩ | 1TΩ | ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20% | >±200 ppm/°C, ±100 ppm/°C, ±200 ppm/°C , ±50 ppm/°C, ±25 ppm/°C, ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C , >±200 ppm/°C | 3W | 30kV | Add to Enquiry | |
Exxelia Ohmcraft HVR 56 | 56 | 100kΩ | 1TΩ | ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20% | >±200 ppm/°C, ±100 ppm/°C, ±200 ppm/°C , ±50 ppm/°C, ±25 ppm/°C, ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C , >±200 ppm/°C | 6W | 40kV | Add to Enquiry |
HVR Series Description
- High-Voltage Resistors
- Radial through hole design
- Voltage ratings from 2kV up to 40kV
- Power ratings from 0.5W to 6W
- Resistance values from 100kΩ to 1TΩ *
- Standard case sizes of 39, 29, 21, 42, 43 & 56 *
- Tolerances of ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5% ,±10% or ±20%
- TCR ratings of ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C or >±200 ppm/°C
- Ultra-high stability
- Very low noise
- VCR down to 0.05 ppm/V
- Temperature range from -55°C up to 150°C
* Custom configurations are available upon request The HVR series from Exxelia Ohmcraft® are high-voltage radial resistors designed for precision applications where a higher voltage is required. The HVR series offers voltage ratings from 2kV to 40kV, tolerances from 0.1% to 20% and resistances from 100kΩ up to 1TΩ, all in a small radial package using thick film technology. By utilising their patented Micropen® precision printing technology, Exellia Ohmcraft are able to provide superior precision resistors with very low noise and ultra-high stability. TCR values are available as low as ±25 ppm/°C (between 1MΩ and 100MΩ) and VCR down to 0.05 ppm/V.
Exxelia Ohmcraft HVR 21 Ordering Info
Below is the model number configuration for the HVR series from Exxelia Ohmcraft.Series / Model (HVR)
- HVR
- HVR
Termination / Connection (X)
- B
- Wire 22AWG Sn60Pb40 solder
- S
- Spade Terminal Sn60Pb40 solder
- T
- Spade Terminal 100% Tin RoHS
- W
- Wire 22AWG 100% Tin RoHS
Package / Size (XX)
- 21
- 21
Temperature Coefficient (X)
- E
- ±25 ppm/°C
- H
- ±50 ppm/°C
- K
- ±100 ppm/°C
- L
- ±200 ppm/°C
- M
- >±200 ppm/°C
Resistance Value (XXXX)
Resistance value is expressed as a four-digit number where the first three numbers are the significant value, and the fourth number is the number of zeros.
Tolerance (X)
- B
- ±0.1%
- C
- ±0.25%
- D
- ±0.5%
- F
- ±1%
- G
- ±2%
- J
- ±5%
- K
- ±10%
- L
- ±20%
Coating (X)
- 2
- Bare
- 3
- Powder
- 4
- Single Surface Epoxy
