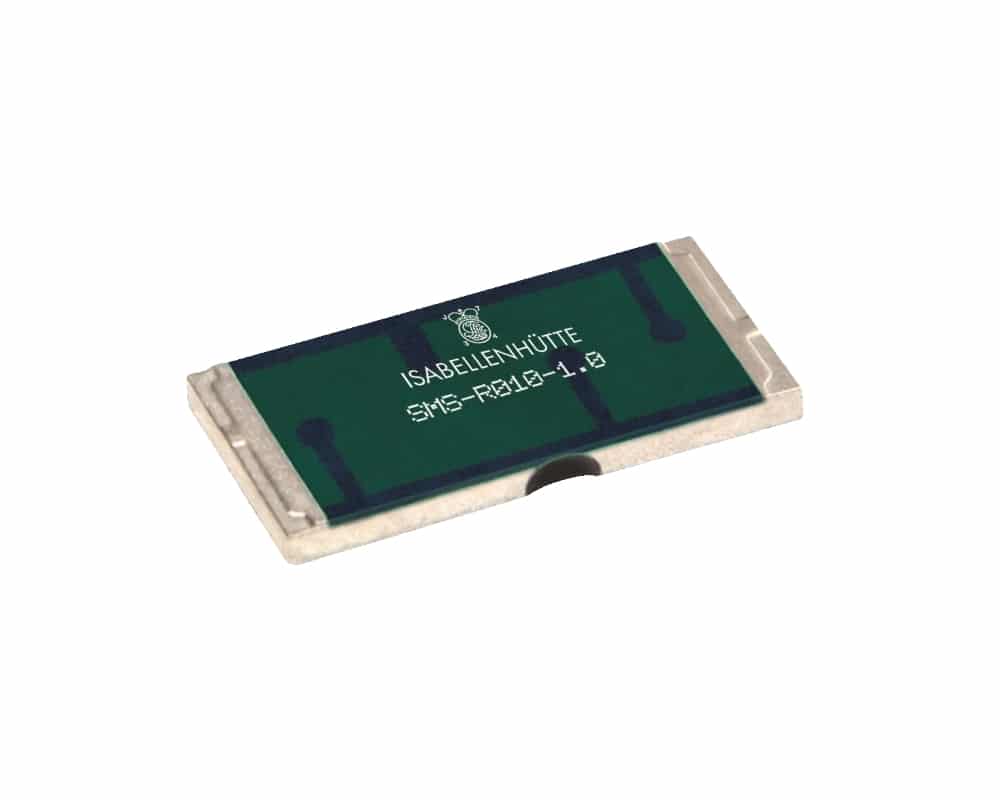

The SMS current sensing precision resistor series from Isabellenhütte offers the designer higher power ratings and low internal temperature rises due to the larger pad termination sizes. The MANGANIN® alloy resistance element has a resistance range of 0.005Ω to 1Ω TCR of below 50ppm/°C over the temperature range of +20°C and +60°C and offers excellent long term stability. The SMS model offers these capabilities in a 2512 chip size.
Attributes | Value |
---|---|
Resistance value * | 5mΩ to 1Ω |
Tolerance * | ±0.5% / ±1% / ±2% / ±5% |
TCR | <50ppm/°C (20-60°C) |
Temperature range | -65°C to +170°C |
Power rating (P70°C) | 5W |
Power rating (P110°C) | 3W |
Internal heat resistance | <20°C/W (Rthi) |
Inductance | <3nH |
Stability (deviation after 2000hrs) | <0.5% (Tᴋ = 80°C) / <1% (Tk=110 °C) Tᴋ = Terminal Temperature |

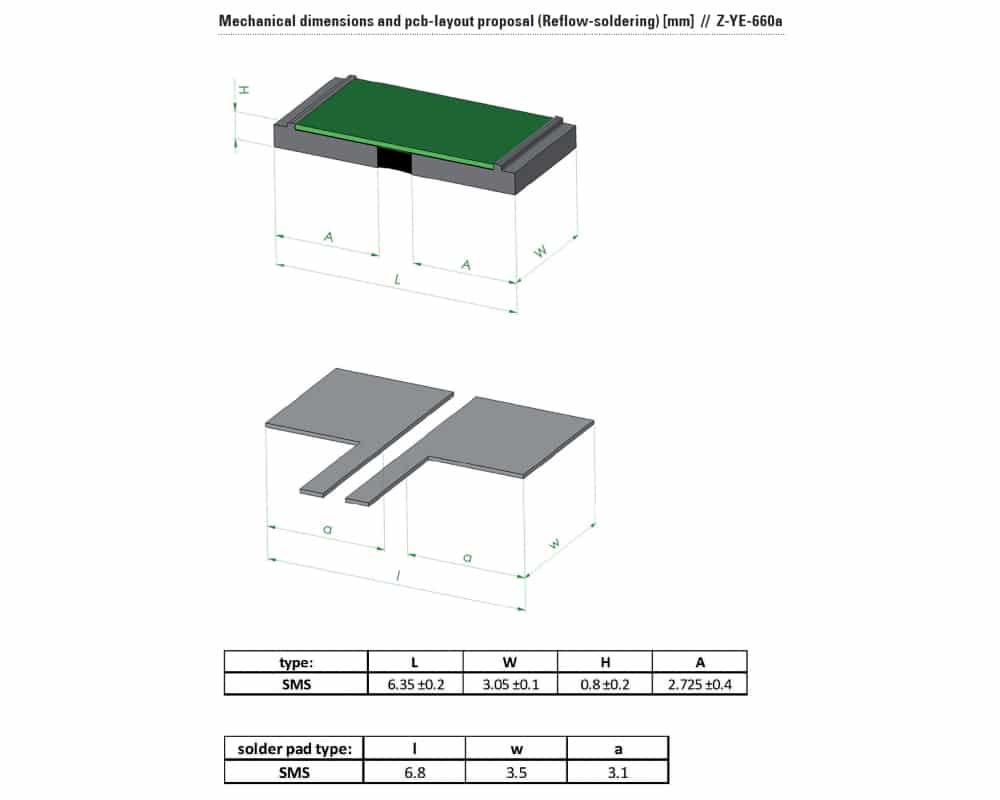

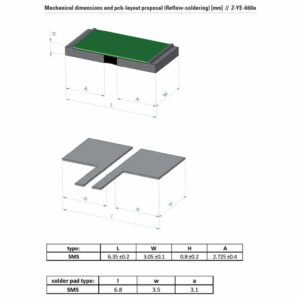

Dimensions | 0.80 x 3.05 x 6.35mm |
---|---|
Series / Model | |
Current Rating | |
Maximum Resistance | 1Ω |
Minimum Resistance | 0.005Ω |
Package / Size | |
Power Rating | |
Product Type | |
Resistance Value | 0.005Ω, 0.0075Ω, 0.008Ω, 0.009Ω, 0.01Ω, 0.012Ω, 0.015Ω, 0.018Ω, 0.02Ω, 0.022Ω, 0.025Ω, 0.03Ω, 0.033Ω, 0.039Ω, 0.04Ω, 0.047Ω, 0.05Ω, 0.068Ω, 0.075Ω, 0.082Ω, 0.1Ω, 0.12Ω, 0.15Ω, 0.18Ω, 0.2Ω, 0.22Ω, 0.25Ω, 0.27Ω, 0.33Ω, 0.39Ω, 0.47Ω, 0.5Ω, 0.68Ω, 0.82Ω, 1Ω |
Temperature Coefficient | |
Temperature Range (°C) | -65 to +170°C |
Tolerance |
Resistance value, in ohms, is expressed by a series of 4 or 5 characters, 3-4 of which represent significant digits. R (ohms) designates the location of the decimal point.
Resistance Value | Part Number Value | 0.5% Tolerance | 1% Tolerance | 2% Tolerance | 5% Tolerance |
---|---|---|---|---|---|
0.005Ω | R005 | ||||
0.0075Ω | R0075 | ||||
0.008Ω | R008 | ||||
0.009Ω | R009 | ||||
0.010Ω | R010 | ||||
0.012Ω | R012 | ||||
0.015Ω | R015 | ||||
0.018Ω | R018 | ||||
0.020Ω | R020 | ||||
0.022Ω | R022 | ||||
0.25Ω | R025 | ||||
0.03Ω | R030 | ||||
0.033Ω | R033 | ||||
0.039Ω | R039 | ||||
0.04Ω | R040 | ||||
0.047Ω | R047 | ||||
0.050Ω | R050 | ||||
0.068Ω | R068 | ||||
0.075Ω | R075 | ||||
0.082Ω | R082 | ||||
0.1Ω | R100 | ||||
0.12Ω | R120 | ||||
0.15Ω | R150 | ||||
0.18Ω | R180 | ||||
0.2Ω | R200 | ||||
0.22Ω | R220 | ||||
0.25Ω | R250 | ||||
0.27Ω | R270 | ||||
0.33Ω | R330 | ||||
0.39Ω | R390 | ||||
0.47Ω | R470 | ||||
0.5Ω | R500 | ||||
0.68Ω | R680 | ||||
0.82Ω | R820 | ||||
1Ω | 1R00 |
SKU | Resistance Value | Tolerance |
---|---|---|
Isa SMS-R033-0.5 | 0.033Ω | ±0.5% |
Isa SMS-R005-1.0 | 0.005Ω | ±1% |
Isa SMS-R005-5.0 | 0.005Ω | ±5% |
Isa SMS-R0075-1.0 | 0.0075Ω | ±1% |
Isa SMS-R008-1.0 | 0.008Ω | ±1% |
Isa SMS-R009-1.0 | 0.009Ω | ±1% |
Isa SMS-R012-1.0 | 0.012Ω | ±1% |
Isa SMS-R015-1.0 | 0.015Ω | ±1% |
Isa SMS-R018-1.0 | 0.018Ω | ±1% |
Isa SMS-R010-1.0 | 0.01Ω | ±1% |
Isa SMS-R022-1.0 | 0.022Ω | ±1% |
Isa SMS-R022-5.0 | 0.022Ω | ±5% |
Isa SMS-R025-1.0 | 0.025Ω | ±1% |
Isa SMS-R020-0.5 | 0.02Ω | ±0.5% |
Isa SMS-R020-1.0 | 0.02Ω | ±1% |
Isa SMS-R033-1.0 | 0.033Ω | ±1% |
Isa SMS-R039-1.0 | 0.039Ω | ±1% |
Isa SMS-R030-1.0 | 0.03Ω | ±1% |
Isa SMS-R047-1.0 | 0.047Ω | ±1% |
Isa SMS-R040-0.5 | 0.04Ω | ±0.5% |
Isa SMS-R040-1.0 | 0.04Ω | ±1% |
Isa SMS-R050-0.5 | 0.05Ω | ±0.5% |
Isa SMS-R050-1.0 | 0.05Ω | ±1% |
Isa SMS-R068-0.5 | 0.068Ω | ±0.5% |
Isa SMS-R068-1.0 | 0.068Ω | ±1% |
Isa SMS-R075-1.0 | 0.075Ω | ±1% |
Isa SMS-R082-1.0 | 0.082Ω | ±1% |
Isa SMS-R120-1.0 | 0.12Ω | ±1% |
Isa SMS-R120-5.0 | 0.12Ω | ±5% |
Isa SMS-R150-0.5 | 0.15Ω | ±0.5% |
Isa SMS-R150-1.0 | 0.15Ω | ±1% |
Isa SMS-R150-5.0 | 0.15Ω | ±5% |
Isa SMS-R180-1.0 | 0.18Ω | ±1% |
Isa SMS-R100-0.5 | 0.1Ω | ±0.5% |
Isa SMS-R100-1.0 | 0.1Ω | ±1% |
Isa SMS-R220-0.5 | 0.22Ω | ±0.5% |
Isa SMS-R220-1.0 | 0.22Ω | ±1% |
Isa SMS-R250-1.0 | 0.25Ω | ±1% |
Isa SMS-R250-5.0 | 0.25Ω | ±5% |
Isa SMS-R270-1.0 | 0.27Ω | ±1% |
Isa SMS-R200-0.5 | 0.2Ω | ±0.5% |
Isa SMS-R200-1.0 | 0.2Ω | ±1% |
Isa SMS-R200-2.0 | 0.2Ω | ±2% |
Isa SMS-R330-0.5 | 0.33Ω | ±0.5% |
Isa SMS-R330-1.0 | 0.33Ω | ±1% |
Isa SMS-R390-1.0 | 0.39Ω | ±1% |
Isa SMS-R470-1.0 | 0.47Ω | ±1% |
Isa SMS-R500-1.0 | 0.5Ω | ±1% |
Isa SMS-R680-1.0 | 0.68Ω | ±1% |
Isa SMS-R820-1.0 | 0.82Ω | ±1% |
Isa SMS-1R00-0.5 | 1Ω | ±0.5% |
Isa SMS-1R00-1.0 | 1Ω | ±1% |
Isa SMS-1R00-2.0 | 1Ω | ±2% |
