Isabellenhütte PBV Series

Product Features

Current sensing precision resistor
4-terminal through-hole design
Resistance range from 0.0005Ω to 1Ω
Tolerance from ±0.5%
TCR of <30 ppm/°C
Power rating 10W on a suitable heat sink
Temperature range from -55°C to +125°C

Datasheet

Resistance Value

Tolerance

Clear

Custom resistance value (Ω) *
Custom AT Range (AT) *
Custom Capacity (lbs) *
Custom Pressure (Bar/PSI) *
Custom Resistance Value Element 1 (Ω) *
Custom Resistance Value Element 2 (Ω) *
Custom lead length (mm) *
Custom lead length (inches) *

Quantity

Add to Compare

The PBV current sensing precision resistor series from Isabellenhütte offers 4-terminal through-hole connection technology for current sensing applications. Designed for easy heat sink mounting, the Kelvin connections on this resistor allow high precision measurements even with very low resistance values range from 0.0005Ω to 1Ω. The PBV series from Isabellenhütte has a pulse power rating of 2J for 10ms capabilities.

Current sensing precision resistor
4-terminal through-hole design
Resistance values 0.0005Ω to 1Ω
Tolerance options of ±0.5%, ±1% and ±5%
TCR from <±30 ppm/°C (+20°C to +60°C)
Power rating of 10W on a suitable heat sink (3W in free air)
Temperature range from -55°C to +125°C
Pulse power rating of 2J for 10ms
Inductance of <10nH
Stability of <0.5% (T_K=70°C) (at rated power, deviation after 2000h)
Dielectric withstanding voltage of 500VAC

Typical applications for the PBV current sensing precision resistor series include:

Power modules
Frequency converters
Switch power supplies

Isabellenhütte PBV Series Specification Table

Attributes	Value
Resistance value*	0.5mΩ to 100Ω
Tolerance*	±0.5% / ±1% / ±5%
TCR (20-60°C)	<±30 ppm/°C (for values ≥R010) <±75 ppm/°C (for values <R010)
Temperature range	-55°C to +125°C
Load capacity	3W / 10W (on heatsink)
Internal heat resistance	<3°C/W (Rthi) (for values ≥R002) <6°C/W (Rthi) (for values <R002)
Thermal heat resistance	<15°C/W (Rth)
Inductance	<10nH
Stability (deviation after 2000hrs)	<0.5% (Tᴋ = 70°C) Tᴋ = Terminal Temperature

_{* Please contact us for available parts or see the ordering information tab}

Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.

Specifications

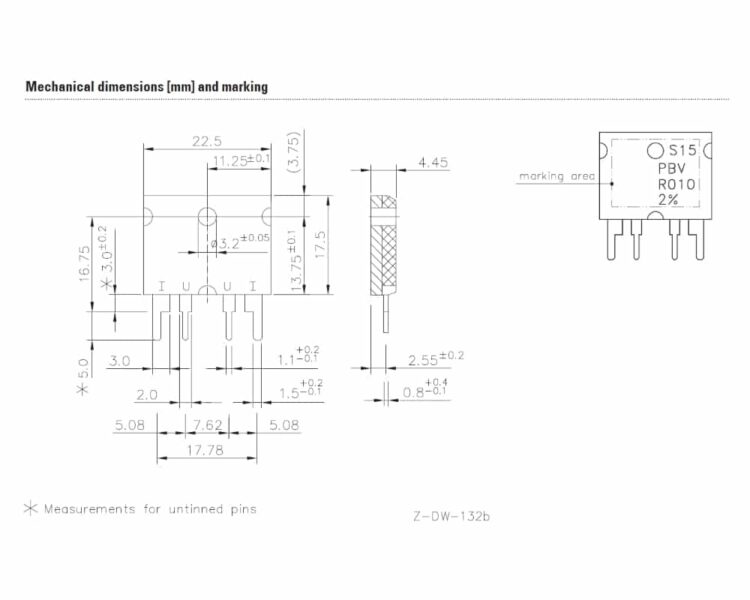

Dimensions	20.50 x 4.45 x 22.50mm
Product Type	4-Terminal Current Sensing Resistor
Package / Size	Through-hole
Resistance Value	500µΩ, 0.001Ω, 0.0015Ω, 0.002Ω, 0.0022Ω, 0.003Ω, 0.0033Ω, 0.0047Ω, 0.005Ω, 0.0068Ω, 0.01Ω, 0.015Ω, 0.02Ω, 0.022Ω, 0.025Ω, 0.033Ω, 0.047Ω, 0.05Ω, 0.068Ω, 0.1Ω, 0.15Ω, 0.2Ω, 0.22Ω, 0.5Ω, 1Ω
Minimum Resistance	500µΩ
Maximum Resistance	1Ω
Tolerance	±0.5%, ±1%, ±5%
Temperature Coefficient	±30 ppm/°C, ±75 ppm/°C
Power Rating	3W, 10W
Series / Model	PBV
Temperature Range (°C)	-55 to +125°C

Series / Model (PBV)

PBV: PBV

Resistance Value (XXXX)

Resistance value, in ohms, is expressed by a series of 4 characters, 3 of which represent significant digits. R (ohms) designates the location of the decimal point.

Termination / Connection ()

Tolerance (X.X)

0.5: ±0.5%
1.0: ±1%
5.0: ±5%

Isabellenhütte PBV Series - Available Resistance Values and Tolerances

Resistance Value	Part Number Value	0.5% Tolerance	1% Tolerance	5% Tolerance
0.0005Ω	R0005
0.0015Ω	R0015
0.0010Ω	R001
0.0020Ω	R002
0.0022Ω	R0022
0.0030Ω	R003
0.0033Ω	R0033
0.0047Ω	R0047
0.0050Ω	R005
0.0068Ω	R0068
0.010Ω	R010
0.015Ω	R015
0.020Ω	R020
0.022Ω	R022
0.025Ω	R025
0.033Ω	R033
0.047Ω	R047
0.050Ω	R050
0.068Ω	R068
0.10Ω	R100
0.15Ω	R150
0.20Ω	R200
0.22Ω	R220
0.5Ω	R500
1Ω	1R00

Product Variations

SKU	Resistance Value	Tolerance
Isa PBV-R0015-F1-0.5	0.0015Ω	±0.5%	Request Quote
Isa PBV-R047-F1-0.5	0.047Ω	±0.5%	Request Quote
Isa PBV-R001-F1-0.5	0.001Ω	±0.5%	Request Quote
Isa PBV-R050-F1-0.5	0.05Ω	±0.5%	Request Quote
Isa PBV-R001-F1-1.0	0.001Ω	±1%	Request Quote
Isa PBV-R050-F1-1.0	0.05Ω	±1%	Request Quote
Isa PBV-R001-F1-5.0	0.001Ω	±5%	Request Quote
Isa PBV-R068-F1-0.5	0.068Ω	±0.5%	Request Quote
Isa PBV-R0022-F1-0.5	0.0022Ω	±0.5%	Request Quote
Isa PBV-R068-F1-1.0	0.068Ω	±1%	Request Quote
Isa PBV-R0022-F1-1.0	0.0022Ω	±1%	Request Quote
Isa PBV-R150-F1-0.5	0.15Ω	±0.5%	Request Quote
Isa PBV-R002-F1-0.5	0.002Ω	±0.5%	Request Quote
Isa PBV-R150-F1-1.0	0.15Ω	±1%	Request Quote
Isa PBV-R002-F1-1.0	0.002Ω	±1%	Request Quote
Isa PBV-R100-F1-0.5	0.1Ω	±0.5%	Request Quote
Isa PBV-R0033-F1-0.5	0.0033Ω	±0.5%	Request Quote
Isa PBV-R100-F1-1.0	0.1Ω	±1%	Request Quote
Isa PBV-R0033-F1-1.0	0.0033Ω	±1%	Request Quote
Isa PBV-R220-F1-0.5	0.22Ω	±0.5%	Request Quote
Isa PBV-R003-F1-0.5	0.003Ω	±0.5%	Request Quote
Isa PBV-R200-F1-0.5	0.2Ω	±0.5%	Request Quote
Isa PBV-R003-F1-5.0	0.003Ω	±5%	Request Quote
Isa PBV-R500-F1-1.0	0.5Ω	±1%	Request Quote
Isa PBV-R0047-F1-0.5	0.0047Ω	±0.5%	Request Quote
Isa PBV-1R00-F1-0.5	1Ω	±0.5%	Request Quote
Isa PBV-R005-F1-0.5	0.005Ω	±0.5%	Request Quote
Isa PBV-R0005-F1-1.0	500µΩ	±1%	Request Quote
Isa PBV-R005-F1-1.0	0.005Ω	±1%	Request Quote
Isa PBV-R0005-F1-5.0	500µΩ	±5%	Request Quote
Isa PBV-R0068-F1-0.5	0.0068Ω	±0.5%	Request Quote
Isa PBV-R0068-F1-1.0	0.0068Ω	±1%	Request Quote
Isa PBV-R015-F1-0.5	0.015Ω	±0.5%	Request Quote
Isa PBV-R015-F1-1.0	0.015Ω	±1%	Request Quote
Isa PBV-R010-F1-0.5	0.01Ω	±0.5%	Request Quote
Isa PBV-R010-F1-1.0	0.01Ω	±1%	Request Quote
Isa PBV-R022-F1-0.5	0.022Ω	±0.5%	Request Quote
Isa PBV-R022-F1-1.0	0.022Ω	±1%	Request Quote
Isa PBV-R025-F1-0.5	0.025Ω	±0.5%	Request Quote
Isa PBV-R025-F1-1.0	0.025Ω	±1%	Request Quote
Isa PBV-R020-F1-0.5	0.02Ω	±0.5%	Request Quote
Isa PBV-R020-F1-1.0	0.02Ω	±1%	Request Quote
Isa PBV-R033-F1-0.5	0.033Ω	±0.5%	Request Quote
Isa PBV-R033-F1-1.0	0.033Ω	±1%	Request Quote

Resources

Product Datasheet

Isabellenhütte PBV Series Datasheet
Isabellenhütte PBV 4-terminal through-hole current sensing resistor series datasheet

Supporting Product Information

Isabellenhütte Precision & Power Resistors Information
Further details into the world of low-ohmic precision resistors and current sensing technology

Supporting Manufacturer Information

Isabellenhütte Powder Metallurgy Information
Further information on the powder metallurgy process used to create Isabellenhütte precision resistors

Aerospace

Audio

Energy

EV & Automotive

Healthcare & Medical

Industrial

Military & Defense

Oil & Gas

Renewables

Get in touch

Isabellenhütte PBV Series

Product Features

Any questions, contact us?

Why buy from Rhopoint?

Engineering Calculators

Application Notes

Typical applications for the PBV current sensing precision resistor series include:

Isabellenhütte PBV Series Specification Table

Specifications

Ordering Info

Series / Model (PBV)

Resistance Value (XXXX)

Termination / Connection ()

Tolerance (X.X)

Isabellenhütte PBV Series - Available Resistance Values and Tolerances

Product Variations

Resources

Product Datasheet

Supporting Product Information

Supporting Manufacturer Information

Related Products

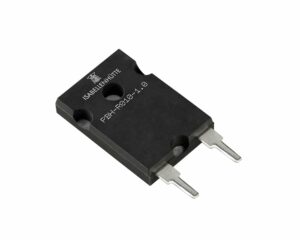

Isabellenhütte PBH Series
