Isabellenhütte PBH Series

Product Features

Power precision resistor
2-terminal through-hole design
Resistance range from 0.002Ω to 100Ω
Tolerance from ±0.5%
TCR of <50 ppm/°C
Power rating 10W on a suitable heat sink
Temperature range from -55°C to +125°C

Datasheet

Resistance Value

Tolerance

Clear

Custom resistance value (Ω) *
Custom AT Range (AT) *
Custom Capacity (lbs) *
Custom Pressure (Bar/PSI) *
Custom Resistance Value Element 1 (Ω) *
Custom Resistance Value Element 2 (Ω) *
Custom lead length (mm) *
Custom lead length (inches) *

Quantity

Add to Compare

The PBH power precision resistor series from Isabellenhütte offers 2-terminal through-hole connection technology for current sensing applications. Designed for easy heat sink mounting, this resistor allows high precision measurements even with a low resistance value range from 0.002Ω to 100Ω. The PBH series from Isabellenhütte has low inductance and has high pulse power handling capabilities.

Power precision resistor
2-terminal through-hole design
Resistance values 0.002Ω to 100Ω
Tolerance options of ±0.5%, ±1% and ±5%
TCR of <±50 ppm/°C (+20°C to +60°C)
Power rating of 10W on a suitable heat sink (3W in free air)
Constant current of 70A (0.002Ω)
Temperature range from -55°C to +125°C
Space saving design similar to TO247
Stability of <0.5% (T_K=70°C) (at rated power, deviation after 2000h)
Dielectric withstanding voltage of 500VAC

Typical applications for the PBH power precision resistor series include:

Power modules
Frequency converters
Switch mode power supplies

Isabellenhütte PBH Series Specification Table

Attributes	Value
Resistance Value	2 mΩ - 100Ω*
Tolerance	±0.5%** / ±1% / ±5%
TCR	<±50 ppm/°C (20-60°C)
Temperature range	-55°C to +125°C
Load Capacity	3W (10W on heatsink)
Internal heat resistance	<4°C/W (Rthi)
Thermal heat resistance	<20°C/W (Rth)
Inductance	<40nH
Stability (deviation after 2000hrs)	<0.5% (Tᴋ = 70°C) Tᴋ = Terminal Temperature

_{* Please contact us for available parts or see the ordering information tab

** Tolerance 0.5% for values ≥10 mOhm}

Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.

Specifications

Dimensions	25.50 x 4.45 x 15.50mm
Product Type	Current Sensing Resistor
Package / Size	Through-hole, TO-247
Resistance Value	0.002Ω, 0.0022Ω, 0.0027Ω, 0.0033Ω, 0.0039Ω, 0.0047Ω, 0.005Ω, 0.0056Ω, 0.0068Ω, 0.0082Ω, 0.01Ω, 0.012Ω, 0.015Ω, 0.018Ω, 0.02Ω, 0.022Ω, 0.027Ω, 0.033Ω, 0.039Ω, 0.047Ω, 0.05Ω, 0.056Ω, 0.068Ω, 0.082Ω, 0.1Ω, 0.12Ω, 0.15Ω, 0.18Ω, 0.2Ω, 0.22Ω, 0.27Ω, 0.33Ω, 0.39Ω, 0.47Ω, 0.5Ω, 0.56Ω, 0.68Ω, 0.82Ω, 1Ω, 1.2Ω, 1.5Ω, 1.8Ω, 2Ω, 2.2Ω, 2.7Ω, 3.3Ω, 3.9Ω, 4.7Ω, 5Ω, 5.6Ω, 6.8Ω, 8.2Ω, 10Ω, 12Ω, 15Ω, 18Ω, 20Ω, 22Ω, 27Ω, 33Ω, 39Ω, 47Ω, 50Ω, 56Ω, 68Ω, 82Ω, 100Ω
Minimum Resistance	0.002Ω
Maximum Resistance	100Ω
Tolerance	±0.5%, ±1%, ±5%
Temperature Coefficient	±50 ppm/°C
Current Rating	70A
Power Rating	3W, 10W
Series / Model	PBH
Temperature Range (°C)	-55 to +125°C

Series / Model (PBH)

PBH: PBH

Resistance Value (XXXX)

Resistance value, in ohms, is expressed by a series of 4 characters, 3 of which represent significant digits. R (ohms) designates the location of the decimal point.

Termination / Connection ()

Tolerance (X.X)

0.5: ±0.5%
1.0: ±1%
5.0: ±5%

Isabellenhütte PBH Series - Available Resistance Values and Tolerances

Resistance Value	Part Number Value	0.5% Tolerance	1% Tolerance	5% Tolerance
0.0020Ω	R002
0.0022Ω	R0022
0.0027Ω	R0027
0.0033Ω	R0033
0.0039Ω	R0039
0.0047Ω	R0047
0.0050Ω	R005
0.0056Ω	R0056
0.0068Ω	R0068
0.0082Ω	R0082
0.010Ω	R010
0.012Ω	R012
0.015Ω	R015
0.018Ω	R018
0.020Ω	R020
0.022Ω	R022
0.027Ω	R027
0.033Ω	R033
0.039Ω	R039
0.047Ω	R047
0.050Ω	R050
0.056Ω	R056
0.068Ω	R068
0.082Ω	R082
0.10Ω	R100
0.12Ω	R120
0.15Ω	R150
0.18Ω	R180
0.20Ω	R200
0.22Ω	R220
0.27Ω	R270
0.33Ω	R330
0.39Ω	R390
0.47Ω	R470
0.50Ω	R500
0.56Ω	R560
0.68Ω	R680
0.82Ω	R820
1.0Ω	1R00
1.2Ω	1R20
1.5Ω	1R50
1.8Ω	1R80
2.0Ω	2R00
2.2Ω	2R20
2.7Ω	2R70
3.3Ω	3R30
3.9Ω	3R90
4.7Ω	4R70
5.0Ω	5R00
5.6Ω	5R60
6.8Ω	6R80
8.2Ω	8R20
10Ω	10R0
12Ω	12R0
15Ω	15R0
18Ω	18R0
20Ω	20R0
22Ω	22R0
27Ω	27R0
33Ω	33R0
39Ω	39R0
47Ω	47R0
50Ω	50R0
56Ω	56R0
68Ω	68R0
82Ω	82R0
100Ω	100R

Product Variations

SKU	Resistance Value	Tolerance
Isa PBH-82R0-F1-5.0	82Ω	±5%	Request Quote
Isa PBH-R0022-F1-1.0	0.0022Ω	±1%	Request Quote
Isa PBH-R0022-F1-5.0	0.0022Ω	±5%	Request Quote
Isa PBH-R0027-F1-1.0	0.0027Ω	±1%	Request Quote
Isa PBH-R0027-F1-5.0	0.0027Ω	±5%	Request Quote
Isa PBH-R002-F1-1.0	0.002Ω	±1%	Request Quote
Isa PBH-R002-F1-5.0	0.002Ω	±5%	Request Quote
Isa PBH-R0033-F1-1.0	0.0033Ω	±1%	Request Quote
Isa PBH-R0033-F1-5.0	0.0033Ω	±5%	Request Quote
Isa PBH-R0039-F1-1.0	0.0039Ω	±1%	Request Quote
Isa PBH-R0039-F1-5.0	0.0039Ω	±5%	Request Quote
Isa PBH-R0047-F1-1.0	0.0047Ω	±1%	Request Quote
Isa PBH-R0047-F1-5.0	0.0047Ω	±5%	Request Quote
Isa PBH-R0056-F1-1.0	0.0056Ω	±1%	Request Quote
Isa PBH-R0056-F1-5.0	0.0056Ω	±5%	Request Quote
Isa PBH-R005-F1-1.0	0.005Ω	±1%	Request Quote
Isa PBH-R005-F1-5.0	0.005Ω	±5%	Request Quote
Isa PBH-R0068-F1-1.0	0.0068Ω	±1%	Request Quote
Isa PBH-R0068-F1-5.0	0.0068Ω	±5%	Request Quote
Isa PBH-R0082-F1-1.0	0.0082Ω	±1%	Request Quote
Isa PBH-R0082-F1-5.0	0.0082Ω	±5%	Request Quote
Isa PBH-R012-F1-0.5	0.012Ω	±0.5%	Request Quote
Isa PBH-R012-F1-1.0	0.012Ω	±1%	Request Quote
Isa PBH-R012-F1-5.0	0.012Ω	±5%	Request Quote
Isa PBH-R015-F1-0.5	0.015Ω	±0.5%	Request Quote
Isa PBH-R015-F1-1.0	0.015Ω	±1%	Request Quote
Isa PBH-R015-F1-5.0	0.015Ω	±5%	Request Quote
Isa PBH-R018-F1-0.5	0.018Ω	±0.5%	Request Quote
Isa PBH-R018-F1-1.0	0.018Ω	±1%	Request Quote
Isa PBH-R018-F1-5.0	0.018Ω	±5%	Request Quote
Isa PBH-R010-F1-0.5	0.01Ω	±0.5%	Request Quote
Isa PBH-R010-F1-1.0	0.01Ω	±1%	Request Quote
Isa PBH-R010-F1-5.0	0.01Ω	±5%	Request Quote
Isa PBH-R022-F1-0.5	0.022Ω	±0.5%	Request Quote
Isa PBH-R022-F1-1.0	0.022Ω	±1%	Request Quote
Isa PBH-R022-F1-5.0	0.022Ω	±5%	Request Quote
Isa PBH-R027-F1-0.5	0.027Ω	±0.5%	Request Quote
Isa PBH-R027-F1-1.0	0.027Ω	±1%	Request Quote
Isa PBH-R027-F1-5.0	0.027Ω	±5%	Request Quote
Isa PBH-R020-F1-0.5	0.02Ω	±0.5%	Request Quote
Isa PBH-R020-F1-1.0	0.02Ω	±1%	Request Quote
Isa PBH-R020-F1-5.0	0.02Ω	±5%	Request Quote
Isa PBH-R033-F1-0.5	0.033Ω	±0.5%	Request Quote
Isa PBH-R033-F1-1.0	0.033Ω	±1%	Request Quote
Isa PBH-R033-F1-5.0	0.033Ω	±5%	Request Quote
Isa PBH-R039-F1-0.5	0.039Ω	±0.5%	Request Quote
Isa PBH-R039-F1-1.0	0.039Ω	±1%	Request Quote
Isa PBH-R039-F1-5.0	0.039Ω	±5%	Request Quote
Isa PBH-R047-F1-0.5	0.047Ω	±0.5%	Request Quote
Isa PBH-R047-F1-1.0	0.047Ω	±1%	Request Quote
Isa PBH-R047-F1-5.0	0.047Ω	±5%	Request Quote
Isa PBH-R056-F1-0.5	0.056Ω	±0.5%	Request Quote
Isa PBH-R056-F1-1.0	0.056Ω	±1%	Request Quote
Isa PBH-R056-F1-5.0	0.056Ω	±5%	Request Quote
Isa PBH-R050-F1-0.5	0.05Ω	±0.5%	Request Quote
Isa PBH-R050-F1-1.0	0.05Ω	±1%	Request Quote
Isa PBH-R050-F1-5.0	0.05Ω	±5%	Request Quote
Isa PBH-R068-F1-0.5	0.068Ω	±0.5%	Request Quote
Isa PBH-R068-F1-1.0	0.068Ω	±1%	Request Quote
Isa PBH-R068-F1-5.0	0.068Ω	±5%	Request Quote
Isa PBH-R082-F1-0.5	0.082Ω	±0.5%	Request Quote
Isa PBH-R082-F1-1.0	0.082Ω	±1%	Request Quote
Isa PBH-R082-F1-5.0	0.082Ω	±5%	Request Quote
Isa PBH-R120-F1-0.5	0.12Ω	±0.5%	Request Quote
Isa PBH-R120-F1-1.0	0.12Ω	±1%	Request Quote
Isa PBH-R120-F1-5.0	0.12Ω	±5%	Request Quote
Isa PBH-R150-F1-0.5	0.15Ω	±0.5%	Request Quote
Isa PBH-R150-F1-1.0	0.15Ω	±1%	Request Quote
Isa PBH-R150-F1-5.0	0.15Ω	±5%	Request Quote
Isa PBH-R180-F1-0.5	0.18Ω	±0.5%	Request Quote
Isa PBH-R180-F1-1.0	0.18Ω	±1%	Request Quote
Isa PBH-R180-F1-5.0	0.18Ω	±5%	Request Quote
Isa PBH-R100-F1-0.5	0.1Ω	±0.5%	Request Quote
Isa PBH-R100-F1-1.0	0.1Ω	±1%	Request Quote
Isa PBH-R100-F1-5.0	0.1Ω	±5%	Request Quote
Isa PBH-R220-F1-0.5	0.22Ω	±0.5%	Request Quote
Isa PBH-R220-F1-1.0	0.22Ω	±1%	Request Quote
Isa PBH-R220-F1-5.0	0.22Ω	±5%	Request Quote
Isa PBH-R270-F1-0.5	0.27Ω	±0.5%	Request Quote
Isa PBH-R270-F1-1.0	0.27Ω	±1%	Request Quote
Isa PBH-R270-F1-5.0	0.27Ω	±5%	Request Quote
Isa PBH-R200-F1-0.5	0.2Ω	±0.5%	Request Quote
Isa PBH-R200-F1-1.0	0.2Ω	±1%	Request Quote
Isa PBH-R200-F1-5.0	0.2Ω	±5%	Request Quote
Isa PBH-R330-F1-0.5	0.33Ω	±0.5%	Request Quote
Isa PBH-R330-F1-1.0	0.33Ω	±1%	Request Quote
Isa PBH-R330-F1-5.0	0.33Ω	±5%	Request Quote
Isa PBH-R390-F1-0.5	0.39Ω	±0.5%	Request Quote
Isa PBH-R390-F1-1.0	0.39Ω	±1%	Request Quote
Isa PBH-R390-F1-5.0	0.39Ω	±5%	Request Quote
Isa PBH-R470-F1-0.5	0.47Ω	±0.5%	Request Quote
Isa PBH-R470-F1-1.0	0.47Ω	±1%	Request Quote
Isa PBH-R470-F1-5.0	0.47Ω	±5%	Request Quote
Isa PBH-R560-F1-0.5	0.56Ω	±0.5%	Request Quote
Isa PBH-R560-F1-1.0	0.56Ω	±1%	Request Quote
Isa PBH-R560-F1-5.0	0.56Ω	±5%	Request Quote
Isa PBH-R500-F1-0.5	0.5Ω	±0.5%	Request Quote
Isa PBH-R500-F1-1.0	0.5Ω	±1%	Request Quote
Isa PBH-R500-F1-5.0	0.5Ω	±5%	Request Quote
Isa PBH-R680-F1-0.5	0.68Ω	±0.5%	Request Quote
Isa PBH-R680-F1-1.0	0.68Ω	±1%	Request Quote
Isa PBH-R680-F1-5.0	0.68Ω	±5%	Request Quote
Isa PBH-R820-F1-0.5	0.82Ω	±0.5%	Request Quote
Isa PBH-R820-F1-1.0	0.82Ω	±1%	Request Quote
Isa PBH-R8200-F1-5.0	0.82Ω	±5%	Request Quote
Isa PBH-1R20-F1-0.5	1.2Ω	±0.5%	Request Quote
Isa PBH-1R20-F1-1.0	1.2Ω	±1%	Request Quote
Isa PBH-1R20-F1-5.0	1.2Ω	±5%	Request Quote
Isa PBH-1R50-F1-0.5	1.5Ω	±0.5%	Request Quote
Isa PBH-1R50-F1-1.0	1.5Ω	±1%	Request Quote
Isa PBH-1R50-F1-5.0	1.5Ω	±5%	Request Quote
Isa PBH-1R80-F1-0.5	1.8Ω	±0.5%	Request Quote
Isa PBH-1R80-F1-1.0	1.8Ω	±1%	Request Quote
Isa PBH-1R80-F1-5.0	1.8Ω	±5%	Request Quote
Isa PBH-100R-F1-0.5	100Ω	±0.5%	Request Quote
Isa PBH-100R-F1-1.0	100Ω	±1%	Request Quote
Isa PBH-100R-F1-5.0	100Ω	±5%	Request Quote
Isa PBH-10R0-F1-0.5	10Ω	±0.5%	Request Quote
Isa PBH-10R0-F1-1.0	10Ω	±1%	Request Quote
Isa PBH-10R0-F1-5.0	10Ω	±5%	Request Quote
Isa PBH-12R0-F1-0.5	12Ω	±0.5%	Request Quote
Isa PBH-12R0-F1-1.0	12Ω	±1%	Request Quote
Isa PBH-12R0-F1-5.0	12Ω	±5%	Request Quote
Isa PBH-15R0-F1-0.5	15Ω	±0.5%	Request Quote
Isa PBH-15R0-F1-1.0	15Ω	±1%	Request Quote
Isa PBH-15R0-F1-5.0	15Ω	±5%	Request Quote
Isa PBH-18R0-F1-0.5	18Ω	±0.5%	Request Quote
Isa PBH-18R0-F1-1.0	18Ω	±1%	Request Quote
Isa PBH-18R0-F1-5.0	18Ω	±5%	Request Quote
Isa PBH-1R00-F1-0.5	1Ω	±0.5%	Request Quote
Isa PBH-1R00-F1-1.0	1Ω	±1%	Request Quote
Isa PBH-1R00-F1-5.0	1Ω	±5%	Request Quote
Isa PBH-2R20-F1-0.5	2.2Ω	±0.5%	Request Quote
Isa PBH-2R20-F1-1.0	2.2Ω	±1%	Request Quote
Isa PBH-2R20-F1-5.0	2.2Ω	±5%	Request Quote
Isa PBH-2R70-F1-0.5	2.7Ω	±0.5%	Request Quote
Isa PBH-2R70-F1-1.0	2.7Ω	±1%	Request Quote
Isa PBH-2R70-F1-5.0	2.7Ω	±5%	Request Quote
Isa PBH-20R0-F1-0.5	20Ω	±0.5%	Request Quote
Isa PBH-20R0-F1-1.0	20Ω	±1%	Request Quote
Isa PBH-20R0-F1-5.0	20Ω	±5%	Request Quote
Isa PBH-22R0-F1-0.5	22Ω	±0.5%	Request Quote
Isa PBH-22R0-F1-1.0	22Ω	±1%	Request Quote
Isa PBH-22R0-F1-5.0	22Ω	±5%	Request Quote
Isa PBH-27R0-F1-0.5	27Ω	±0.5%	Request Quote
Isa PBH-27R0-F1-1.0	27Ω	±1%	Request Quote
Isa PBH-27R0-F1-5.0	27Ω	±5%	Request Quote
Isa PBH-2R00-F1-0.5	2Ω	±0.5%	Request Quote
Isa PBH-2R00-F1-1.0	2Ω	±1%	Request Quote
Isa PBH-2R00-F1-5.0	2Ω	±5%	Request Quote
Isa PBH-3R30-F1-0.5	3.3Ω	±0.5%	Request Quote
Isa PBH-3R30-F1-1.0	3.3Ω	±1%	Request Quote
Isa PBH-3R30-F1-5.0	3.3Ω	±5%	Request Quote
Isa PBH-3R90-F1-0.5	3.9Ω	±0.5%	Request Quote
Isa PBH-3R90-F1-1.0	3.9Ω	±1%	Request Quote
Isa PBH-3R90-F1-5.0	3.9Ω	±5%	Request Quote
Isa PBH-33R0-F1-0.5	33Ω	±0.5%	Request Quote
Isa PBH-33R0-F1-1.0	33Ω	±1%	Request Quote
Isa PBH-33R0-F1-5.0	33Ω	±5%	Request Quote
Isa PBH-39R0-F1-0.5	39Ω	±0.5%	Request Quote
Isa PBH-39R0-F1-1.0	39Ω	±1%	Request Quote
Isa PBH-39R0-F1-5.0	39Ω	±5%	Request Quote
Isa PBH-4R70-F1-0.5	4.7Ω	±0.5%	Request Quote
Isa PBH-4R70-F1-1.0	4.7Ω	±1%	Request Quote
Isa PBH-4R70-F1-5.0	4.7Ω	±5%	Request Quote
Isa PBH-47R0-F1-0.5	47Ω	±0.5%	Request Quote
Isa PBH-47R0-F1-1.0	47Ω	±1%	Request Quote
Isa PBH-47R0-F1-5.0	47Ω	±5%	Request Quote
Isa PBH-5R60-F1-0.5	5.6Ω	±0.5%	Request Quote
Isa PBH-5R60-F1-1.0	5.6Ω	±1%	Request Quote
Isa PBH-5R60-F1-5.0	5.6Ω	±5%	Request Quote
Isa PBH-50R0-F1-0.5	50Ω	±0.5%	Request Quote
Isa PBH-50R0-F1-1.0	50Ω	±1%	Request Quote
Isa PBH-50R0-F1-5.0	50Ω	±5%	Request Quote
Isa PBH-56R0-F1-0.5	56Ω	±0.5%	Request Quote
Isa PBH-56R0-F1-1.0	56Ω	±1%	Request Quote
Isa PBH-56R0-F1-5.0	56Ω	±5%	Request Quote
Isa PBH-5R00-F1-0.5	5Ω	±0.5%	Request Quote
Isa PBH-5R00-F1-1.0	5Ω	±1%	Request Quote
Isa PBH-5R00-F1-5.0	5Ω	±5%	Request Quote
Isa PBH-6R80-F1-0.5	6.8Ω	±0.5%	Request Quote
Isa PBH-6R80-F1-1.0	6.8Ω	±1%	Request Quote
Isa PBH-6R80-F1-5.0	6.8Ω	±5%	Request Quote
Isa PBH-68R0-F1-0.5	68Ω	±0.5%	Request Quote
Isa PBH-68R0-F1-1.0	68Ω	±1%	Request Quote
Isa PBH-68R0-F1-5.0	68Ω	±5%	Request Quote
Isa PBH-8R20-F1-0.5	8.2Ω	±0.5%	Request Quote
Isa PBH-8R20-F1-1.0	8.2Ω	±1%	Request Quote
Isa PBH-8R20-F1-5.0	8.2Ω	±5%	Request Quote
Isa PBH-82R0-F1-0.5	82Ω	±0.5%	Request Quote
Isa PBH-82R0-F1-1.0	82Ω	±1%	Request Quote

Resources

Product Datasheet

Isabellenhütte PBH Series Datasheet
Isabellenhütte PBH 2-terminal through-hole current sensing resistor series datasheet

Supporting Product Information

Isabellenhütte Precision & Power Resistors Information
Further details into the world of low-ohmic precision resistors and current sensing technology

Supporting Manufacturer Information

Isabellenhütte Powder Metallurgy Information
Further information on the powder metallurgy process used to create Isabellenhütte precision resistors

Aerospace

Audio

Energy

EV & Automotive

Healthcare & Medical

Industrial

Military & Defense

Oil & Gas

Renewables

Get in touch

Isabellenhütte PBH Series

Product Features

Any questions, contact us?

Why buy from Rhopoint?

Engineering Calculators

Application Notes

Typical applications for the PBH power precision resistor series include:

Isabellenhütte PBH Series Specification Table

Specifications

Ordering Info

Series / Model (PBH)

Resistance Value (XXXX)

Termination / Connection ()

Tolerance (X.X)

Isabellenhütte PBH Series - Available Resistance Values and Tolerances

Product Variations

Resources

Product Datasheet

Supporting Product Information

Supporting Manufacturer Information

Related Products

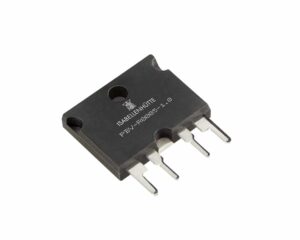

Isabellenhütte PBV Series

Contact Us

Help & Services

Privacy & Legal

Follow Us
