Current Sensing Resistor

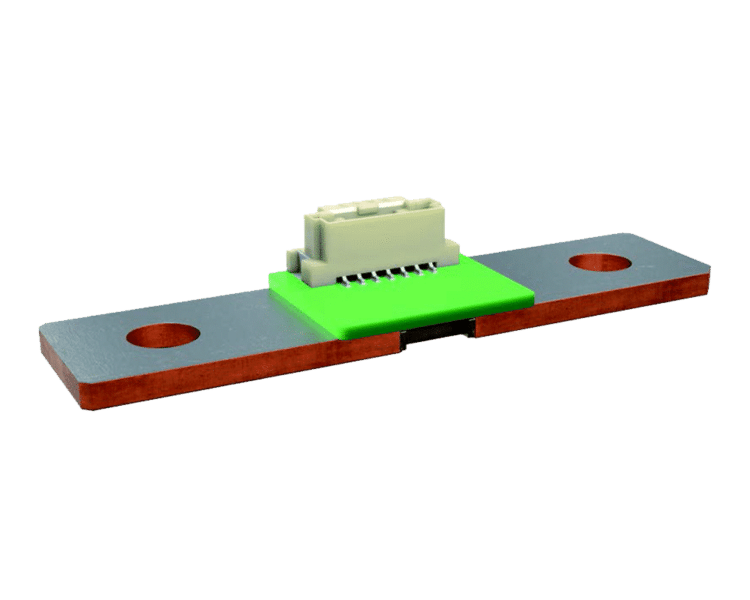

The BSS current & voltage sensing resistor series from Isabellenhütte has a built-in PCB with a Molex DuraClik connector. This shunt resistor offers low resistance value of 100µΩ making these parts ideal for battery management systems (BMS) or energy storage systems (ESS). The BSS series is capable of handling a continuous load up to 450A with a power rating of 20W and a peak pulse power rating of up to ±3,500A for a maximum of 100ms. All of this is based on a package size of 8420.

• Shunt resistor
• Includes a Data Matrix Code (DMC) containing resistance value and TCR
• Bolt down design with a Molex DuraClik connector
• Resistance value of 100µΩ
• Tolerance of ±5.0% (manufactured) / DMC ±0.1% (measured)
• TCR of <±50 ppm/°C (+20°C to +60°C)
• AEC-Q200 qualified
• Temperature range from -40°C to +125°C
• High pulse power rating of up to ±3,500A (100ms max)
• Power rating of 20W
• Inductance of <3nH
• Tinned (Sn) plating and resistive element is made of Manganin® alloy

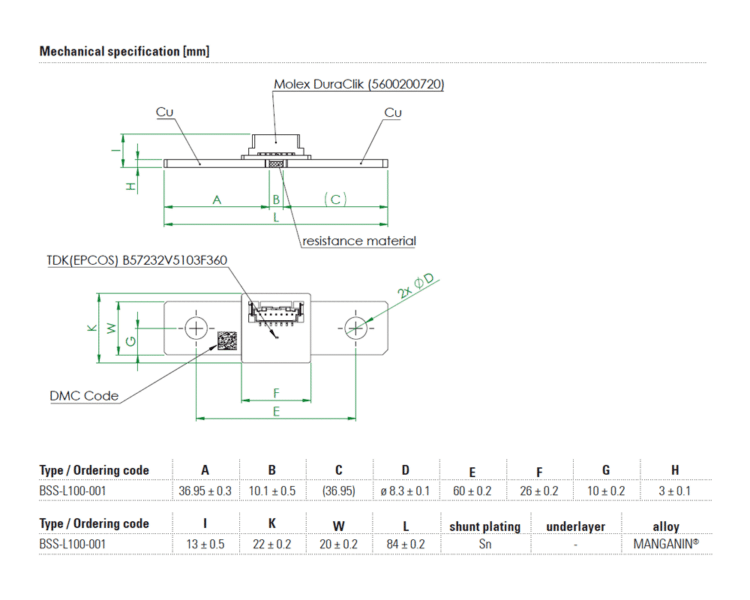

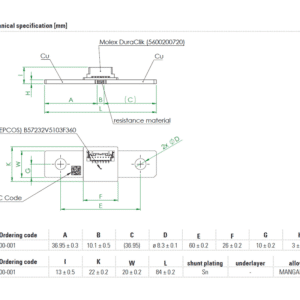

• 8420 Package size

Typical applications for the BSS current & voltage sensing resistor series include:

• Current sensor for BMS (Battery Management Systems)
• Current sensor for ESS (Energy Storage Systems)

Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.
