High Resistance Precision Chip Resistors

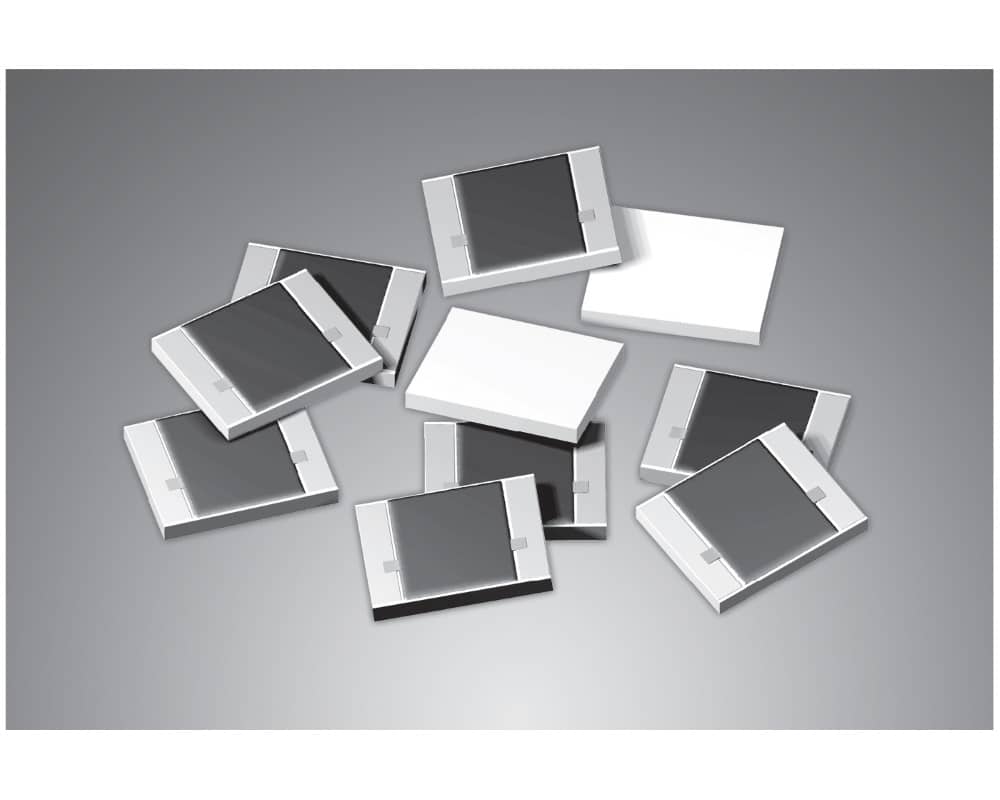

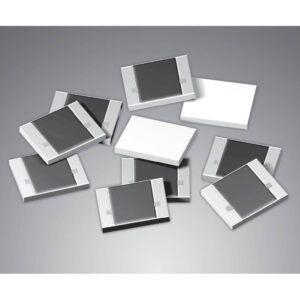

Caddock CHR2520FC Series

  • High resistance precision flip-chip surface-mount resistor
  • Designed for use in extremely low signal detection / amplification circuits
  • Solderable metallised termination pads on the same side as the resistive element with a bare ceramic back surface
  • Maximum chip temperature of +85°C
  • Temperature range of -40°C to +85°C
  • Exempt
Datasheet
Any questions, contact us?
Why buy from Rhopoint?
Frequently Asked Questions
Application Notes

The CHR2520FC high resistance precision flip-chip surface-mount resistor series from Caddock offers resistance values from 10MΩ up to 100MΩ. These high resistance precision chip resistors are designed for use in extremely low signal detection / amplification circuits. The CHR2520FC series features solderable metallised termination pads on one side of the substrate, the same side as the resistive element, with the back side of the substrate being bare ceramic.

  • High resistance precision flip-chip resistor
  • Flip-chip version for surface-mount applications (FC)
  • 2520 chip size
  • Resistance values from 10MΩ to 100MΩ
  • Bare ceramic back surface with metallised terminations pads on the same side as the resistive element
  • Tolerance of ±1.0%
  • TCR from as low as ±25 ppm/°C (from 10MΩ up to 25MΩ, between -40°C and +85°C)
  • Temperature range from -40°C up to +85°C



Typical applications for the CHR2520FC high resistance precision flip-chip resistor series include:

  • Photodiode signal amplification
  • Photomultipliers
  • Ionisation detection
  • Input resistor for high impedance voltage division

Customisations are available upon request, please see the ordering information tab for available standard resistance values and part number break down as well as the list of customisable options.

The recommended solders for flip-chip solder attachment are Sn (62) / Pb (36) / Ag (2), Sn (96.5) / Ag (3.5) or standard Sn / Ag / Cu solder alloys.

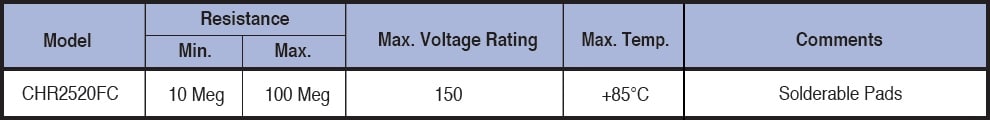

The below table gives the available specifications for the complete CHR2520FC series:

Caddock CHR2520FC Specifications



Specifications

Weight 0.00000 kg

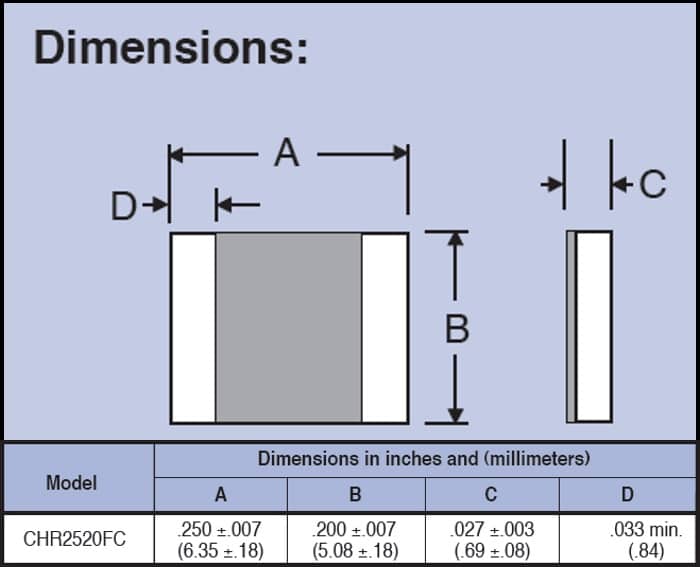

Dimensions 0.69 x 5.08 x 6.35mm
Maximum Resistance

100MΩ
Minimum Resistance

10MΩ
Series / Model

Temperature Coefficient

, ,

Tolerance

Voltage Rating

CHR Series Products

 Product nameProduct TypeProduct TypeProduct TypeProduct TypeProduct TypeProduct TypeProduct Type
Caddock CHR2520FC Series       View Product
SRT CHR 0402Thick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorView Product
SRT CHR 0402-HTHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorView Product
SRT CHR 0603Thick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorView Product
SRT CHR 0603-HTHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorView Product
SRT CHR 0805Thick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorView Product
SRT CHR 0805-HTHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorView Product
SRT CHR 1206Thick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorView Product
SRT CHR 1206-HTHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorView Product
SRT CHR 2010Thick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorView Product
SRT CHR 2010-HTHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorView Product
SRT CHR 2512Thick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorView Product
SRT CHR 2512-HTHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorView Product
SRT CHR 4020Thick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorThick Film, Non-Magnetic, ResistorView Product
SRT CHR 4020-HTHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorHigh Temperature, Thick Film, Non-Magnetic, ResistorView Product
