ISOCOM CDMR2010

The CDMR2010 has two power MOSFET optocouplers packaged into an 8-lead surface mount hybrid package and is suited for applications where two independent switches are required. This popular hermetic ceramic package combined with 1,000Vdc isolation between input and output, and between two isolated relays, makes this device ideal for solid state relay applications.

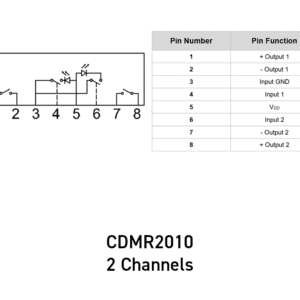

The CDMR2010 is available with MIL-PRF-38534 Class K & Class H screening. Gold plated leads are standard, but the other lead finishes are also available. Functionally, the CDMR2010 operates as dual, single-pole-single-throw (SPST) normally open relay. Each relay is actuated by a standard logic input.

Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units. Any exceptions, due to packaging variations and limitations, are as noted.

Key features of the ISOCOM CDMR2010 include:

• Released to European Standard and complies to MIL-STD
• 10A Continuous Current
• Buffered Input Stage
• 8 Lead Surface Mount Package
• High Isolation up to 1,000Vdc
• Optically Coupled
• Hermetically Sealed
• Radiation capability TID 200kRADS

Typical applications for the ISOCOM CDMR2010 include:

• Space Equipment and Systems
• Military and High Reliability Systems
• Logic level of 3.3V input
• Power Supply
• Displacement damage of 1.8E12 n/cm²

ISOCOM is a leading manufacturer of high-reliability optocouplers and optoelectronic components, specializing in products designed for space, military, and industrial applications. With a focus on radiation-hardened and hermetically sealed devices, ISOCOM provides components known for durability in extreme environments. To learn more about their wide range of products and industry expertise, you can visit their website at www.isocom.uk.com.
