Surface Mount Reed Relay

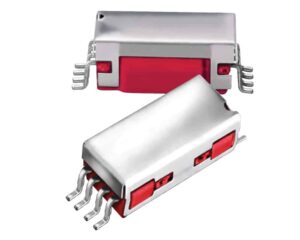

The 9814 surface-mount reed relay series from Coto features available coil voltage options of 3.3V_DC and 5V_DC with a switching voltage of 100V and switching current of 0.25A. The 9814 is a miniature surface-mount reed relay that combines small size with exceptional 6.5 GHz bandwidth for RF performance and pulse switching also the external magnetic shield reduces interaction between parts in high density boards. Available in axial, gull wing and J lead configurations, coaxial shield for 50Ω impedance, hermetically sealed contacts for long life and high reliability. The 9814 series relays are ideally suited to the needs of automated test equipment, instrumentation and telecommunications requirements.

• Miniature surface-mount reed relay
• Nominal coil voltage options of 3.3V_DC and 5V_DC
• Contact form of 1A
• Switching voltage of 100V
• Dielectric strength of 200V_DC
• Coaxial shield of 50 Ω impedance
• Contact rating 3W
• Switching current 0.25A
• High insulation resistance of 10¹²Ω minimum
• Temperature range −20°C to +85°C
• Moulded SMD package
• Available in axial, gull wing and J lead configurations
• Tape and reel packaging available

Typical Applications include:

• Automated Test Equipment
• Instrumentation
• Telecommunications

For further information regarding coil specifications, contact ratings and relay specifications please see the datasheet on the Technical Library tab.

Coto is a worldwide market leader of small signal-switching products sold into the Automatic Test Equipment, Data Acquisition, Instrumentation, Process Control, Telecommunications, Medical and Security markets. Coto specialises in the manufacture of relay, switch and sensor products. Coto are the pioneers of the RedRock® analog and digital TMR magnetic sensors, offering the lowest power consumption, highest sensitivity, ultra-miniature package size, short lead times and a highly-competitive price. Please visit https://cotorelay.com/ for more information.
