Coto 9402 Series

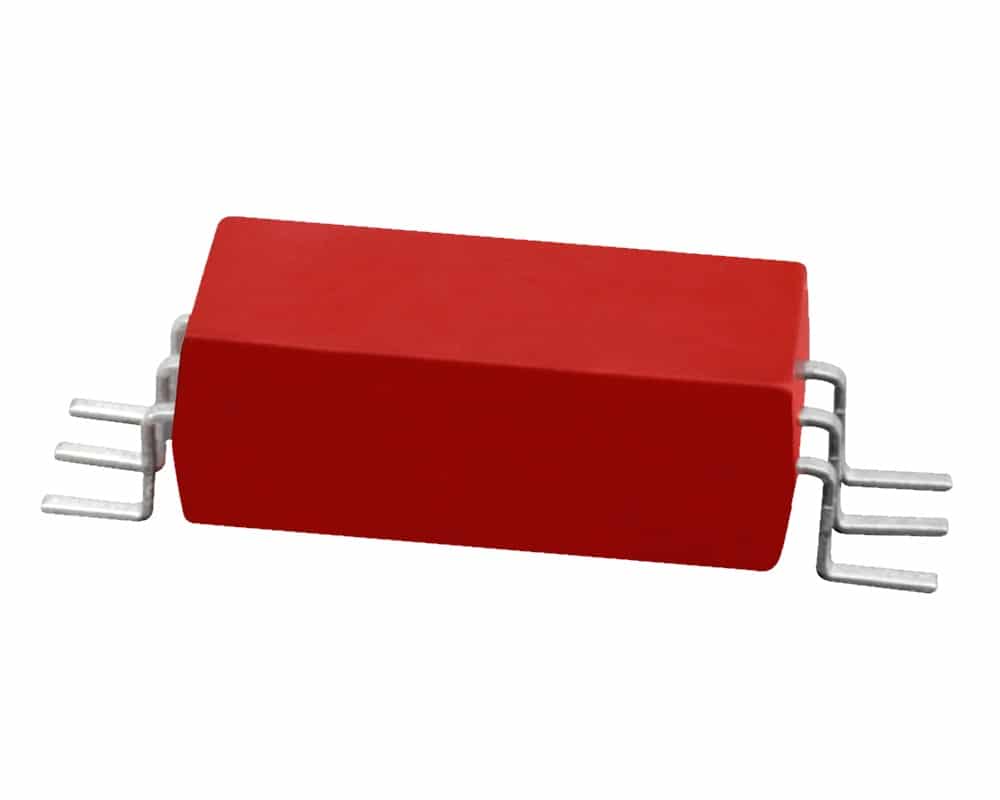

The 9402 surface-mount reed relay series from Coto features available coil voltage options of 5V_DC and 12V_DC with a switching voltage of 200V and switching current of 0.5A. The 9402 reed relay offers low capacitance and a small surface package of 5.71mm(w) x 14mm(L), coaxial shield for 50Ω impedance which are excellent for RF and fast rise time pulse switching up to 2GHz. They have hermetically sealed contacts for long life and moulded thermoset body on integral lead frame design, high speed switching compared to electromechanical relays and high reliability. The 9402 series relays are ideally suited to the needs of automated test equipment, instrumentation and telecommunications requirements.

• Surface-mount reed relay
• Nominal coil voltage options of 5V_DC and 12V_DC
• Contact form of 1A
• Switching voltage of 200V
• Dielectric strength of 300V_DC
• Contact rating 10W
• Switching current 0.5A
• High insulation resistance of 10¹²Ω minimum
• Temperature range −20°C to +85°C
• Moulded 6 pin SIP package with optional gull wing or J-lead connections
• Coaxial shield for 50Ω impedance
• Tape and reel available

Typical Applications include:

• Automated test equipment
• Instrumentation requirements
• Telecommunications requirements

For further information regarding coil specifications, contact ratings and relay specifications please see the datasheet on the Technical Library tab.
