Coto 9290 Series

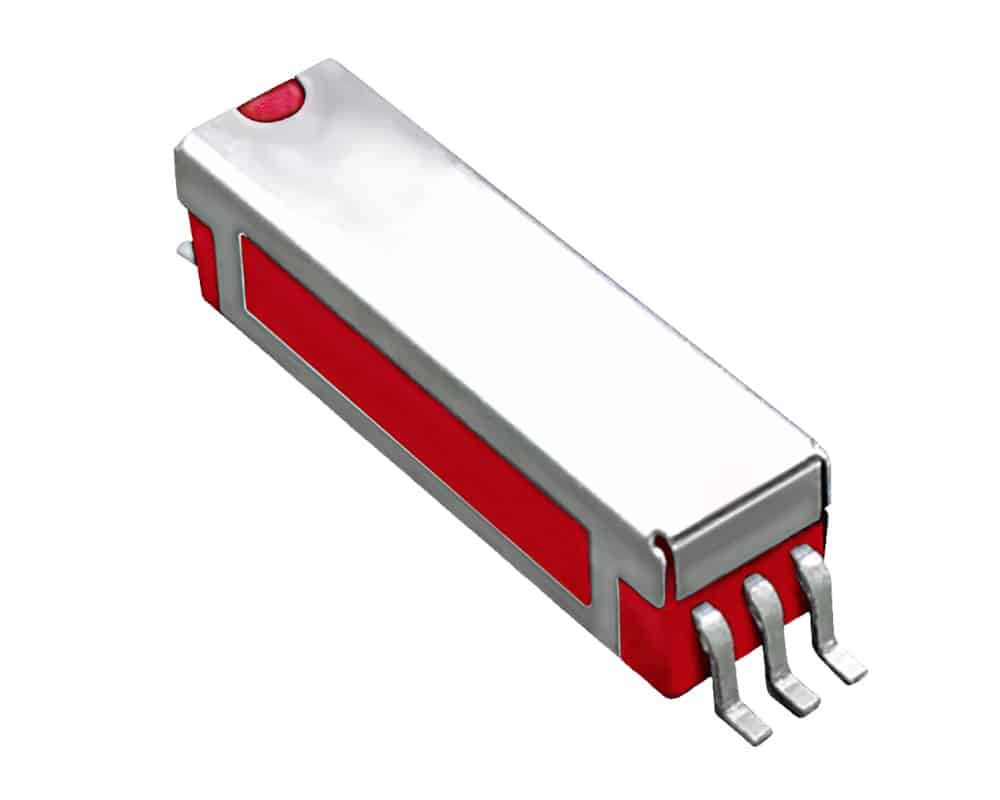

The 9290 surface-mount reed relay series from Coto features available coil voltage options of 5V_DC and 12V_DC with a switching voltage of 200V, switching current of 0.5A. The 9290 reed relay offers a low profile of 4.9mm max height, external magnetic shield and 50Ω coaxial shield for RF and fast rise time pulse switching. They have hermetically sealed contacts for long life and moulded thermoset body on integral lead frame design, high speed switching compared to electromechanical relays and high reliability. The 9290 series relays are ideally suited to the needs of automated test equipment, instrumentation and telecommunications requirements.

• Surface-mount reed relay
• Nominal coil voltage options of 5V_DC and 12V_DC
• Contact form of 1A
• Switching voltage of 200V
• Dielectric strength of 250V_DC
• Contact rating 10W
• Switching current 0.5A
• High insulation resistance of 10¹²Ω minimum
• Temperature range −20°C to +85°C
• 50Ω Coaxial shielding
• External magnetic shield
• Moulded 6 pin SIP package with optional gull wing or J-lead connections

Typical Applications include:

• Automated test equipment
• Measurement applications
• Instrumentation requirements
• Telecommunications requirements

For further information regarding coil specifications, contact ratings and relay specifications please see the datasheet on the Technical Library tab.
