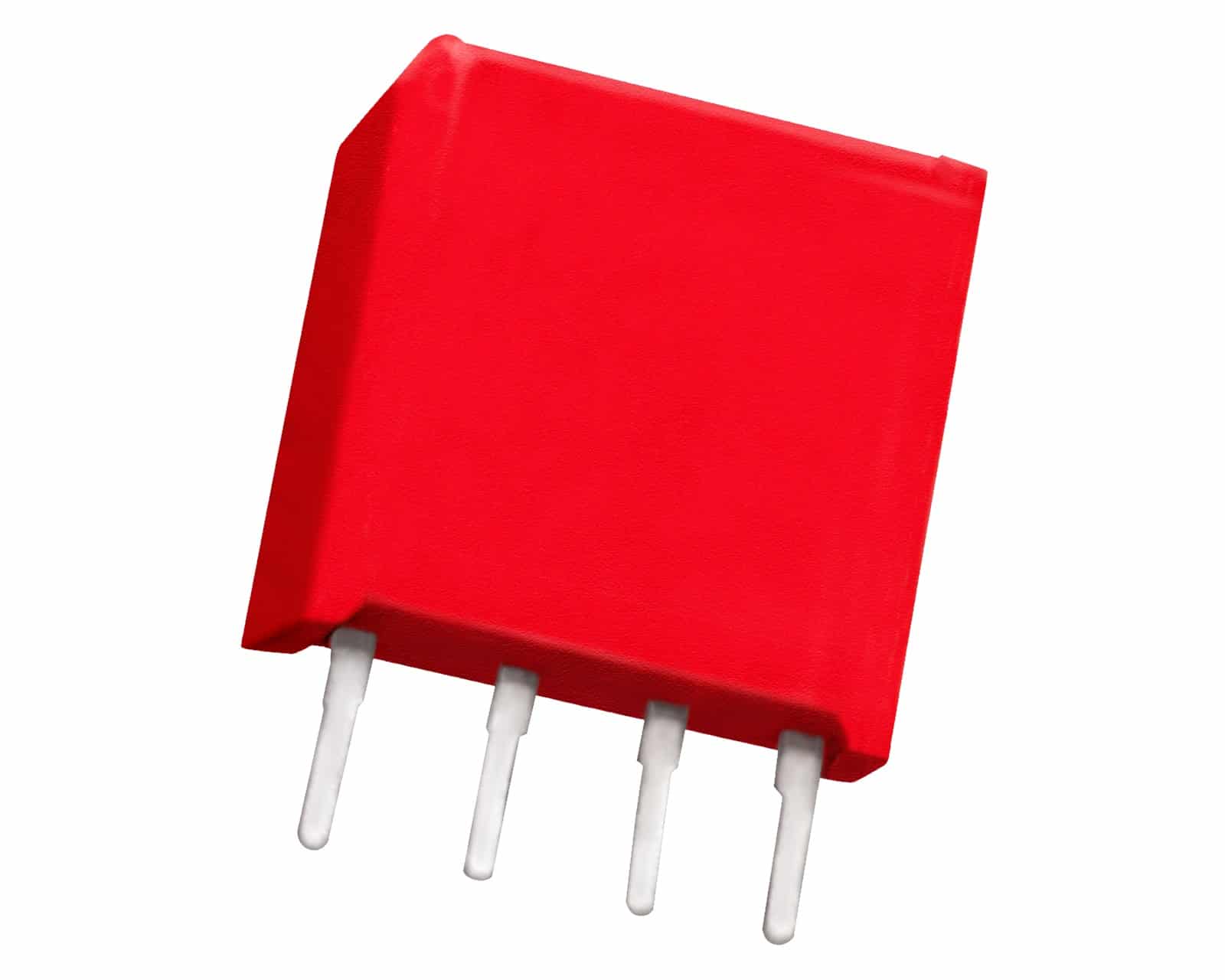

Coto 9012 Series

The 9012 miniature moulded SIP reed relay series from Coto features available coil voltage options of 5V_DC and 12V_DC with a switching voltage of 200V, switching current of 0.5A, optional coil suppression diode which protects coil drive circuits and external magnetic shielding which reduces interaction. The 9012 series relays are compact versions of Coto’s standard 9000 SIP’s using 65% less board space being 10.16mm(L) x 3.81mm(W) x 10.16mm(H) with high speed switching and high reliability. They have hermetically sealed contacts for long life and with a moulded thermoset body on integral lead frame design, the 9012 series relays are ideally suited to the needs of ATE applications and other high reliability test, measurement and telecommunications applications where high board density and long life are key requirements.

• Miniature moulded SIP reed relay
• Nominal coil voltage options of 5V_DC and 12V_DC
• Contact form of 1A
• Switching voltage of 200V
• Dielectric strength of 200V_DC
• Contact rating 10W
• Switching current 0.5A
• High insulation resistance of 10¹²Ω minimum
• Temperature range −20°C to +85°C
• Optional coil suppression diode
• Moulded 4 pin SIP package

Typical Applications include:

• High reliability test equipment
• Measurement applications
• High board density requirements
• Telecommunications applications

For further information regarding coil specifications, contact ratings and relay specifications please see the datasheet on the Technical Library tab.
