Multi-Pole Reed Relay

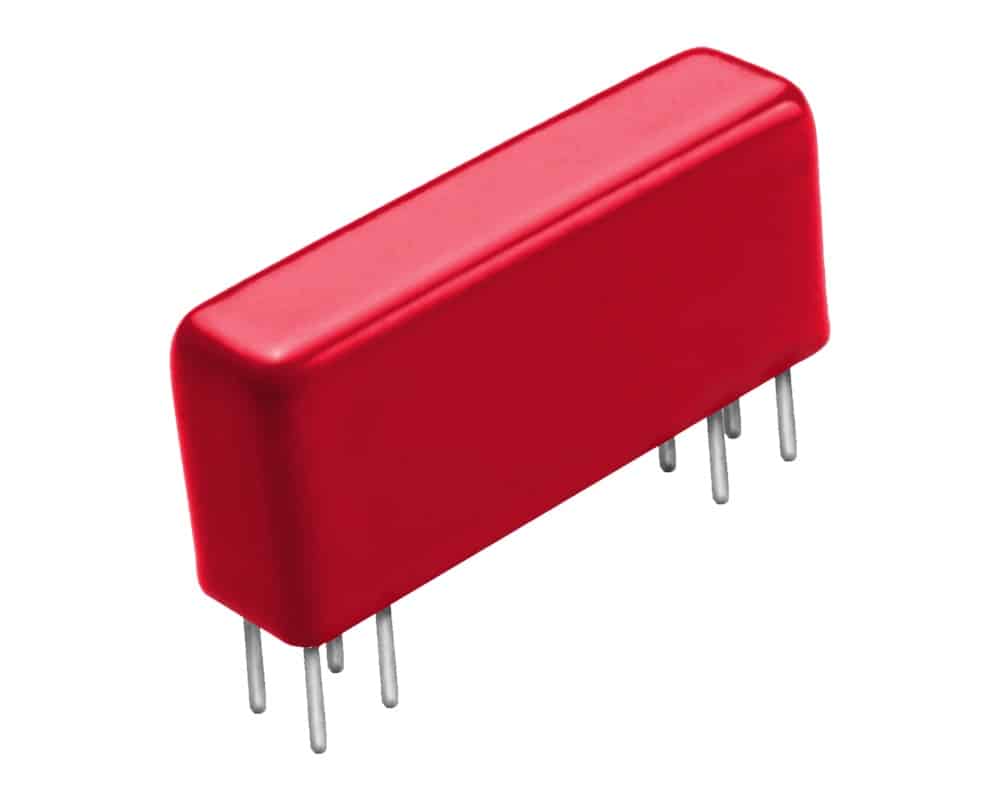

The 2341 surface-mount multi-pole reed relay series from Coto features available coil voltage options of 5V_DC and 12V_DC with a switching voltage of 200V and switching current of 0.5A. The 2341 series is designed to offer the densest packaging available in a multi-pole reed relay. Magnetically shielding steel shell with optional coaxial shield and electrostatic shield. The 1 Form C model is constructed with individual switch capsules for the normally open and magnetically biased normally closed contacts which are more reliable than the spring actuated 1 Form C reed switches. They have hermetically sealed contacts for long life and high reliability. The 2341 series are available with custom pin-outs as well as custom to meet particular applications.

• Surface-mount multi-pole reed relay
• Nominal coil voltage options of 5V_DC and 12V_DC
• Contact form of 1C
• Switching voltage of 200V
• Dielectric strength of 250V_DC
• Contact rating 10W
• Switching current 0.5A
• High insulation resistance of 10¹²Ω minimum
• Temperature range −20°C to +85°C
• Pico package size
• Optional coaxial or electrostatic shielding available

Custom pin-outs as well as custom designs are available to meet particular applications.

Typical Applications Include:

• Automated Test Equipment
• Instrumentation
• Telecommunications
