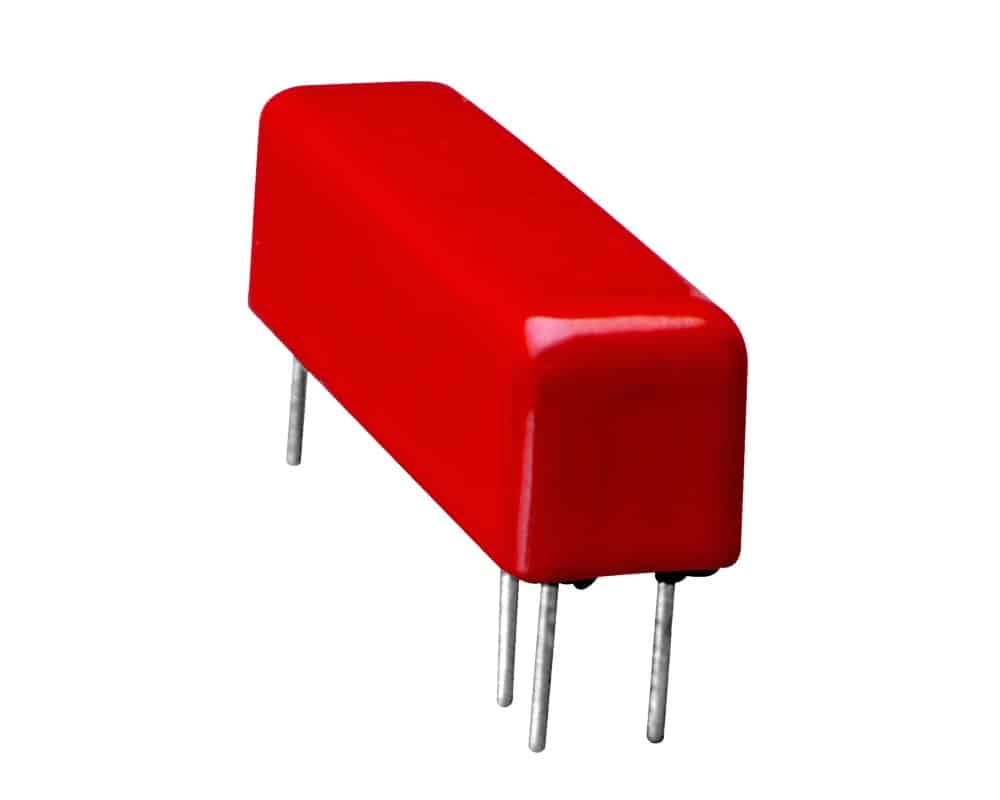

Coto 2200-2302

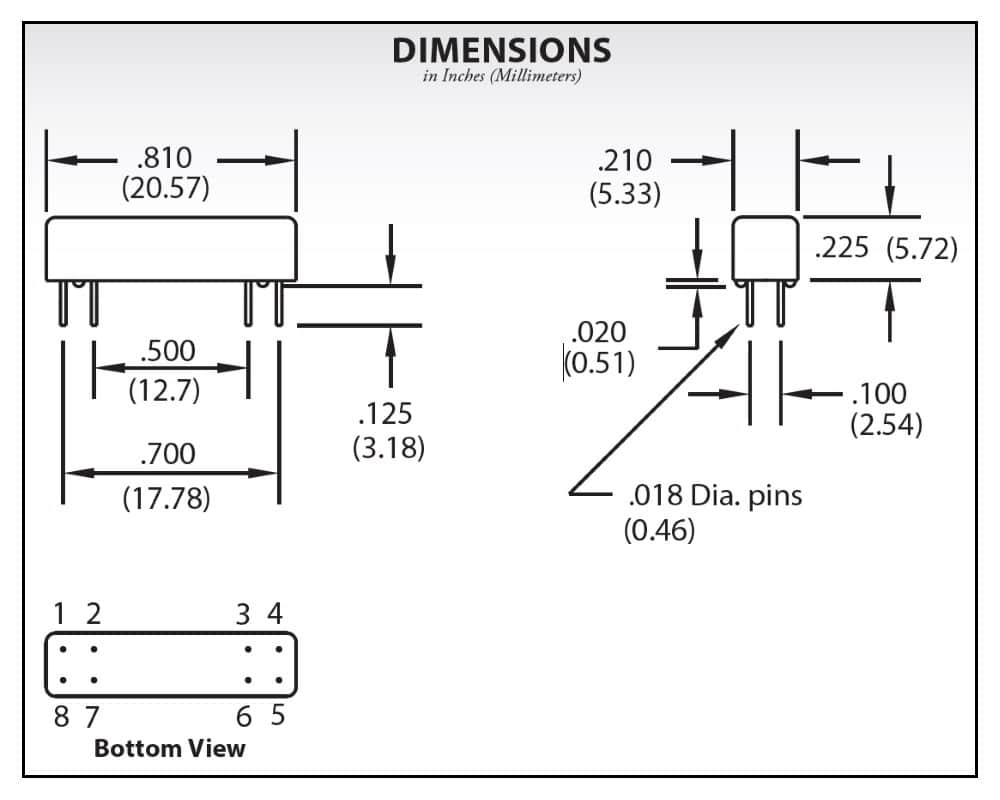

The 2200-2302 reed relay from Coto features a coil voltage of 5V_DC with a switching voltage of 150V and switching current of 0.5A. The 2200 series from Coto are considered ideal for high speed switching compared to electromechanical relays, very small footprint of 0.17in² and have a coaxial shield. They have hermetically sealed contacts for long life and their epoxy coated steel shell provides magnetic shielding. The 2200-2302 is ideally suited to the needs of automated test equipment and RF requirements, specifically engineered for OEM designs and maintenance of existing production fixtures.

• Reed relay
• Coil voltage of 5V_DC
• Contact form of 1A
• Switching voltage of 150V
• Dielectric strength of 250V_DC
• Contact rating 10W
• Switching current 0.5A
• Temperature range −20°C to +85°C
• Encapsulated PICO package
• Coaxial shield

Typical Applications include:

• Automated test equipment
• RF requirements

For further information regarding coil specifications, contact ratings and relay specifications please see the datasheet on the Technical Library tab.
