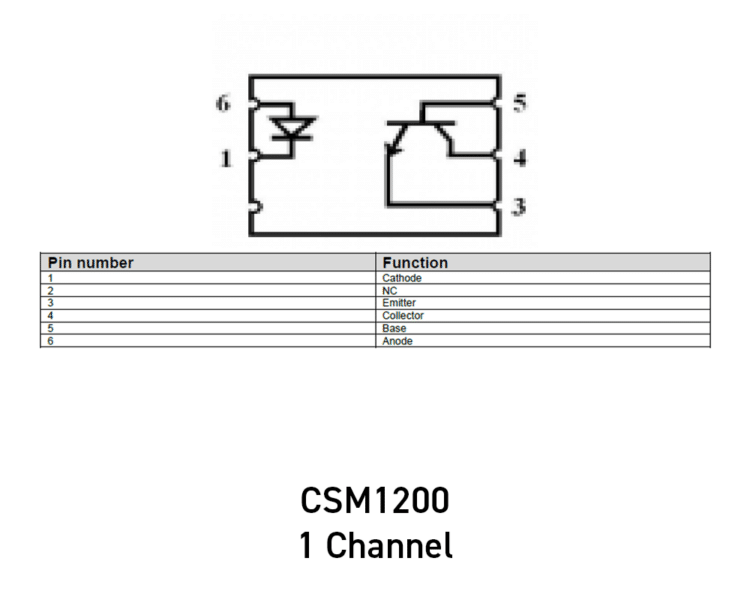

This device is a single channel, hermetically sealed optically coupled isolator. It is composed of a Gallium Arsenide infrared emitting diode and a silicon phototransistor.

The CSM1200 series is being used in environments encountered by space applications. Package styles for this device include an LCC-6 package, with solder dip option available.

Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units. Any exceptions, due to packaging variations and limitations, are as noted.

Key features of the CSM1200 include:

• Radiation Tolerance tested to 150 Krad(si)
• Hermetically Sealed
• High Isolation up to 1,000VDC
• LCC-6
• Low input requirements
• High Current Transfer Ratio

Typical applications for the CSM1200 include:

• Space Equipment and Systems
• Military and Hi-reliability Systems
• Medical Instruments
• MOS/CMOS Applications
• Logic Interfacing
• Data Transmission
• Power Supply
• Modems
