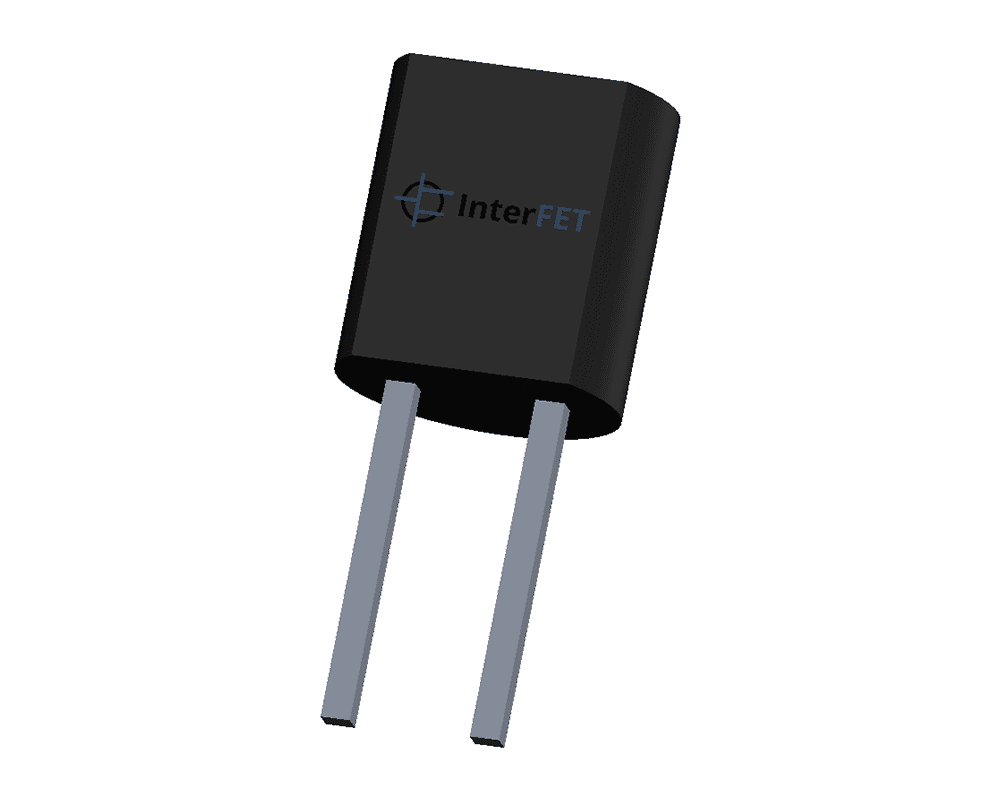

InterFET Product Image (TO-92-2L)

J507

Product Features

InterFET J507 N-Channel Current Regulator Diode with N0016H Geometry. Typical leakage of -1.5pA. All of this in a TO-92-2L package.

Any questions, contact us?

Why buy from Rhopoint?

Engineering Calculators

Application Notes

Specifications

Product Type	Current Regulator Diode
Series / Model	J506, J507 & J508
Industry Standard P/N	J507
Package / Size	TO-92-2L
Geometry Type	N0016H
Polarity	N-Channel
BVgss (min) V	-50
Igss (typ) pA	-1.5

Resources

Product Datasheet

InterFET J506 / J507 / J508 Current Regulator Diode Datasheet

Supporting Manufacturer Information

InterFET Application Note 014: Introduction to JFETs
InterFET Application Note 015: JFET Fundamentals
InterFET Application Note 016: JFET Implementations
InterFET Application Note 017: Common Parameters & Equations
InterFET Application Note 105: Improved Process for Manufacture of Radiation Hard N-Channel JFETs for Detector Electronics
InterFET Application Note 107: Biasing JFETs to Achieve Zero Drift
InterFET CTC-020 Soldering Profile
InterFET CTC-020 Soldering Profile Information
InterFET CTC-021 Tape & Reel
InterFET CTC-021 Tape & Reel Specification Information
InterFET CTC-022 RoHS Compliance
InterFET CTC-022 RoHS Compliance Statement and Overview
InterFET CTC-024 REACH Compliance
InterFET CTC-024 REACH Compliance Statement and Overview
