IFN147
Specifications
Product Type | |
---|---|
Series / Model | |
Industry Standard P/N | |
Package / Size | |
Geometry Type | N0450H |
Polarity | N-Channel |
BVgss (min) V | -40 |
Igss (typ) pA | -6 |
Vgso (min) V | -0.3 |
Vgso (max) V | -1.2 |
Idss (min) mA | -5 |
Idss (max) mA | 30 |
Gm (min) mS | 30 |
En (typ) nV/√Hz | 1.1 |
Ciss (max) pF | 75 |
Crss (max) pF | 15 |
IFN147 Series Products
Product name | Package / Size | Industry Standard P/N | Geometry Type | Polarity | BVgss (min) V | Igss (typ) pA | Vgso (min) V | Vgso (max) V | Idss (min) mA | Idss (max) mA | Gm (min) mS | En (typ) nV/√Hz | Ciss (max) pF | Crss (max) pF | Add to enquiry | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

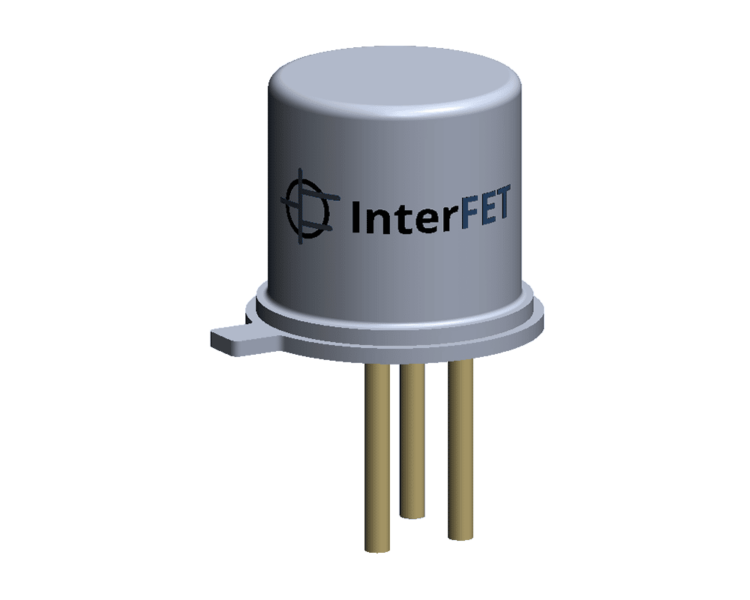

IFN147 | TO-18 | 2SK147 | N0450H | N-Channel | -40 | -6 | -0.3 | -1.2 | -5 | 30 | 30 | 1.1 | 75 | 15 | Add to Enquiry |
Supporting Manufacturer Information
- InterFET Application Note 014: Introduction to JFETs
- InterFET Application Note 015: JFET Fundamentals
- InterFET Application Note 016: JFET Implementations
- InterFET Application Note 017: Common Parameters & Equations
- InterFET Application Note 105: Improved Process for Manufacture of Radiation Hard N-Channel JFETs for Detector Electronics
- InterFET Application Note 107: Biasing JFETs to Achieve Zero Drift
- InterFET CTC-020 Soldering Profile
- InterFET CTC-021 Tape & Reel
- InterFET CTC-022 RoHS Compliance
- InterFET CTC-024 REACH Compliance
