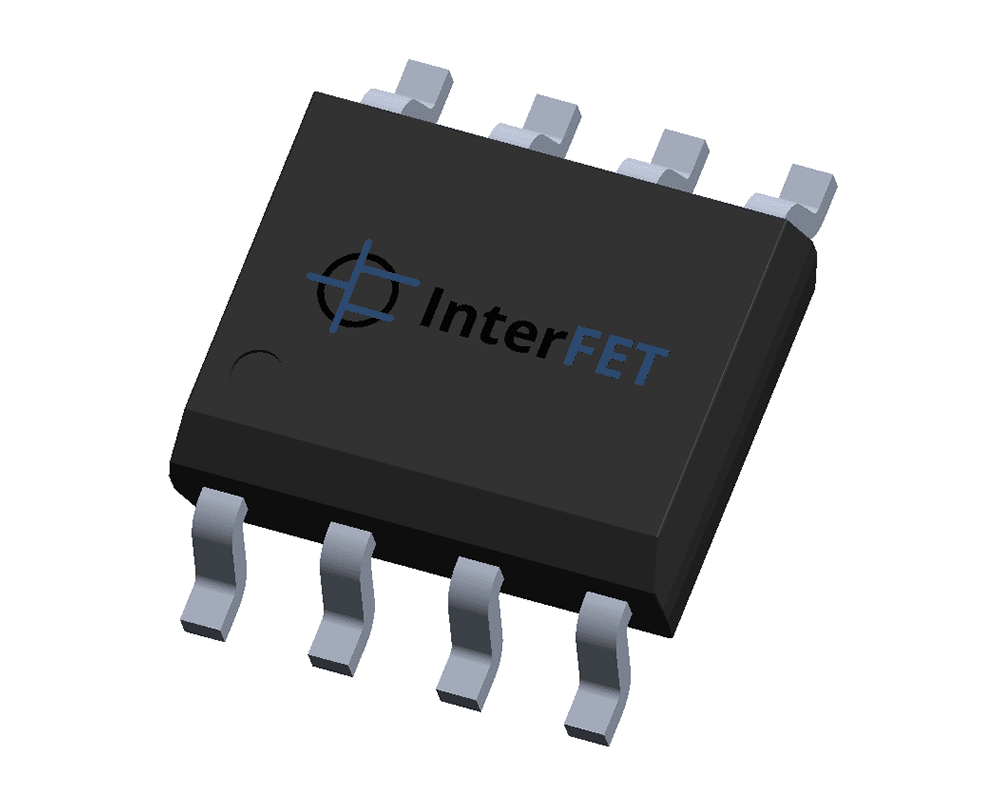

EnglishIF1322S08
Specifications
| Product Type | |
|---|---|
| Series / Model | |
| Industry Standard P/N | |
| Package / Size | |
| Geometry Type | N0132L |
| Polarity | N-Channel |
| BVgss (min) V | 20 |
| Igss (typ) pA | -4 |
| Vgso (min) V | -0.8 |
| Vgso (max) V | 1.5 |
| Idss (min) mA | 8 |
| Idss (max) mA | -25 |
| Gm (min) mS | 10 |
| En (typ) nV/√Hz | 1 |
| Ciss (max) pF | 15 |
| Crss (max) pF | 3.5 |
IF1322/A Series Products
| Product name | Package / Size | Industry Standard P/N | Geometry Type | Polarity | BVgss (min) V | pa_series_model | Vgso (min) V | Vgso (max) V | Idss (min) mA | Idss (max) mA | Gm (min) mS | En (typ) nV/√Hz | Ciss (max) pF | Crss (max) pF | Add to enquiry | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IF1322AS08 | SOIC-8 | IF1322 | N0132L | N-Channel | 20 | -0.8 | 1.5 | 8 | -25 | 10 | 1 | 15 | 3.5 | Add to Enquiry | |
|
| IF1322S08 | SOIC-8 | IF1322 | N0132L | N-Channel | 20 | -0.8 | 1.5 | 8 | -25 | 10 | 1 | 15 | 3.5 | Add to Enquiry |
Supporting Manufacturer Information
- InterFET Application Note 014: Introduction to JFETs
- InterFET Application Note 015: JFET Fundamentals
- InterFET Application Note 016: JFET Implementations
- InterFET Application Note 017: Common Parameters & Equations
- InterFET Application Note 105: Improved Process for Manufacture of Radiation Hard N-Channel JFETs for Detector Electronics
- InterFET Application Note 107: Biasing JFETs to Achieve Zero Drift
- InterFET CTC-020 Soldering Profile
- InterFET CTC-021 Tape & Reel
- InterFET CTC-022 RoHS Compliance
- InterFET CTC-024 REACH Compliance
