| Product Type | |
|---|---|
| Series / Model | |
| Industry Standard P/N | |
| Package / Size | |
| Geometry Type | N0450L |
| Polarity | N-Channel |
| BVgss (min) V | 20 |
| Igss (typ) pA | -6 |
| Vgso (min) V | -0.3 |
| Vgso (max) V | -3 |
| Idss (min) mA | 10 |
| Idss (max) mA | 100 |
| Gm (min) mS | 25 |
| En (typ) nV/√Hz | 0.9 |
| Ciss (max) pF | 35 |
| Crss (max) pF | 20 |
| Product name | Package / Size | Industry Standard P/N | Geometry Type | Polarity | BVgss (min) V | Igss (typ) pA | Vgso (min) V | Vgso (max) V | Idss (min) mA | Idss (max) mA | Gm (min) mS | En (typ) nV/√Hz | Ciss (max) pF | Crss (max) pF | Add to enquiry | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2N6550 | TO-46 | 2N6550 | N0450L | N-Channel | 20 | -6 | -0.3 | -3 | 10 | 100 | 25 | 0.9 | 35 | 20 | Add to Enquiry |

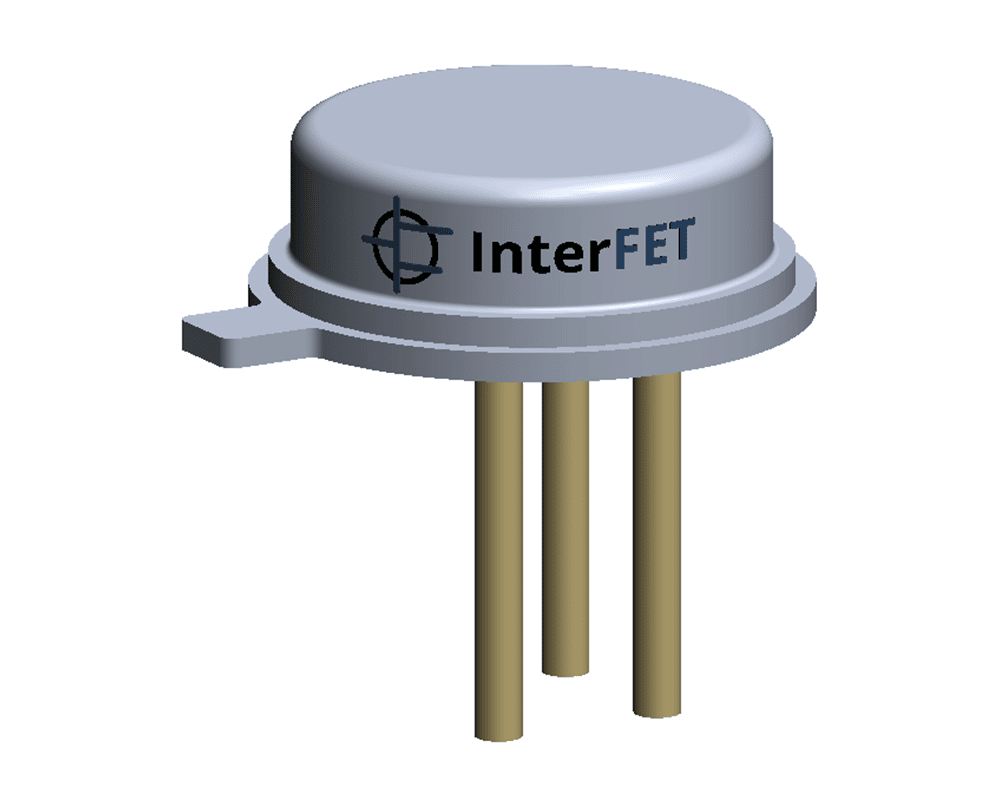

InterFET 2N6550 N-Channel JFET with N0450L Geometry. Typical leakage of -6pA and a low input capacitance of 35pF (max). All of this in a TO-46 package.
