NVE IL612-2E

The IL612-2E passive input digital isolator from NVE is a two channel signal coupler with flexible, wide range of input voltage and CMOS output. This isolator features data rate of 100Mbps, working voltage of 300V_RMS and endures high voltage of 1kV_rms/1.5kVdc. The IL612-2E is available in an 8-pin PDIP package, specified over a temperature range of −40°C to +85°C. The IL612 series from NVE are a passive input digital isolator CMOS devices manufactured with NVE’s patented IsoLoop® spintronic Giant Magnetoresistive (GMR) technology. They have a similar interface but better performance than optocouplers, featuring a higher package density and functioning over a wide range of data ranges, edge speeds and power supply levels. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. The IL612 series, including IL612-2E is UL1577 recognised and certified to IEC 60747-5-5 (VDE 0884).

• Surface-mount passive input digital isolator with CMOS output

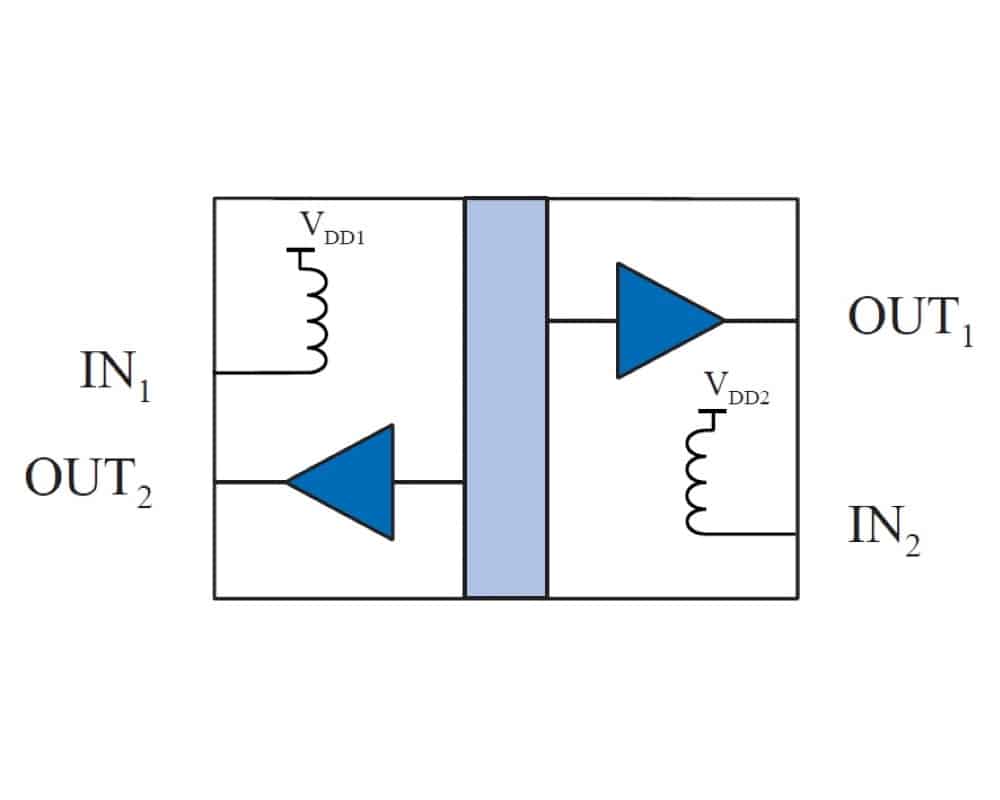

• Two channel, multidirectional isolation
• High speed with data rate of 100 Mbps
• Flexible input with range of input voltage ranges
• Working voltage of 300V_RMS
• Current input of 5mA
• Failsafe output (logic high output for zero coil current)
• High voltage endurance of 1kV_rms/1.5kVdc
• Temperature range of −40°C to +85°C
• No carrier or clock for low EMI emissions and susceptibility
• 20 kV/μs typical (15 kV/μs minimum) common mode transient immunity
• Typical pulse width distortion of 3ns
• Typical propagation delay of 8ns
• Barrier life of 44000 years
• Good magnetic immunity
• VDE V 0884-10 certified; UL 1577 recognised

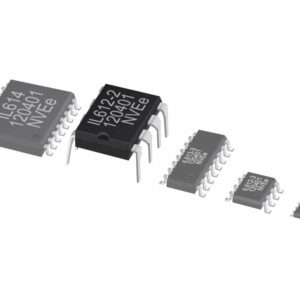

• 8-pin PDIP package

Typical applications for the IL612 series include:

• Digital fieldbus
• Optocoupler replacement
• RS-485, RS-422 or RS-232
• CAN Bus / Device Net
• Differetial line receiver
• SPI interface
• Space-critical multi-channel applications

The below table gives the recommended operating conditions of the NVE IL612 high speed digital isolator series including the IL612-2E:
