NVE IL814T-1E

The IL814T-1E high temperature, DC correct, high speed digital isolator from NVE is rated with an isolation voltage of 2.5kV_rms and 600V_rms working voltage per VDE V 0884-10, these isolators are available in an ultraminiature 16-pin QSOP package and are specified over a temperature range of −40°C to +125°C. IL800 series are industry’s top-of-the-line isolators with the best specification within their class. They are manufactured with NVE’s patented IsoLoop® spintronic Giant Magnetoresistive (GMR) technology and featuring an internal refresher clock to ensure response to DC states of input within 9μs maximum. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life.

• High speed, DC-correct digital isolator

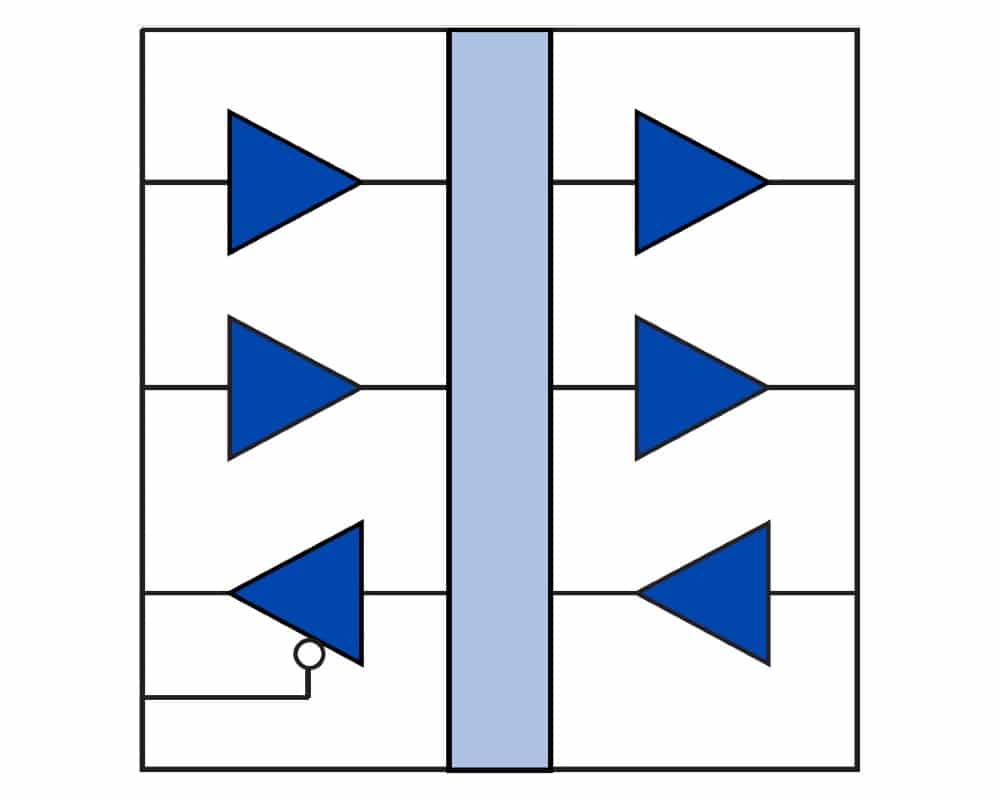

• Multidirectional three channel isolation
• High speed at 110 Mbps typical
• Isolation voltage of 2.5kV_rms
• Working voltage of 600 V_rms per VDE V 0884-10
• Temperature range of −40°C to +125°C
• 50 kV/μs typical (30 kV/μs minimum) common mode transient immunity
• Internal refresher clock to ensure response to DC states of input within 9μs maximum
• Typical quiescent current 0.0013A per channel
• Typical pulse width distortion of 2ns (at 5V)
• Channel to channel skew 3ns
• Typical propagation delay of 10ns
• Barrier life of 44000 years
• Excellent magnetic immunity
• VDE V 0884-10 certified; UL 1577 recognised
• 16-pin QSOP package

The NVE IL814T-1E series isolator provides a typical propagation delay of only 10ns and a pulse width distortion as low as 2ns, achieving the best specifications of any isolator. Typical transient immunity of 50 kV/µs is unsurpassed.

Typical applications for the IL800 series include:

• Digital fieldbus
• ADCs and DACs
• Ground loop elimination
• Multiplex data transmission
• Board-to-board communication
• Logic level shifting
• RS-485 and RS-422
• Digital noise reduction
• Data interfaces
• Peripheral interfaces
• Parallel bus

The below table gives the recommended operating conditions of the NVE IL800 high speed digital isolator series including the IL814T-1E:
