SRT Microcéramique NP0 Capacitor Stack Series

  • SRT Microcéramique

Product Features

  • NP0 high capacitance value capacitor stacks, ideal for SMPS applications
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor 10.10-4 maximum
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less
  • Dielectric withstanding voltage of 2.5Un for 5s with 50mA maximum charging current

Applications

  • Exempt

The NP0 capacitor stack offers high stability and a high capacitance value of 330nF (3 lead model), 470nF (5 lead model) or 1µF (10 lead model) at 50V, ideal for switch mode power supply applications. These capacitor stacks are available in three variants – D, J and L and offer a selection of tolerances ±1%, ±2% or ±5%. As with all SRT-MC components, the NP0 capacitor stacks are popular in safety-critical industries thanks to their excellent quality and reliability. Their operating temperature is between -55°C and +125°C.

  • Ceramic chip 50V Capacitor stacks
  • Available in 1210 size in three variants – J, L and D
  • Available in capacitance rating of 330nF (3 lead model), 470nF (5 lead model) or 1µF (10 lead model)
  • Dissipation factor of 10.10-4 max
  • Temperature Coefficient of 30ppm
  • Selection of tolerances: ±1%, ±2% and ±5%
  • Temperature range between -55°C and +125°C

While this capacitor series offers a number of options, customisation is possible on all SRT Microcéramique components – if none of the options are suitable for your application, please contact us to discuss the custom solutions available.



The below table gives the specifications overview for each capacitor model available within the NP0 capacitor stack series:

SRT Microcéramique Turbocap NP0 Capacitor Stacks



SRT Microcéramique NP0 Capacitor Stack Series

Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Weight 0.00000 kg
Dimensions 0.00 x 0.00 x 0.00mm
Package / Size

Temperature Range (°C)

-55 to +125°C

Tolerance

, ,

Voltage Rating

  • Energy
  • SRT Microcéramique

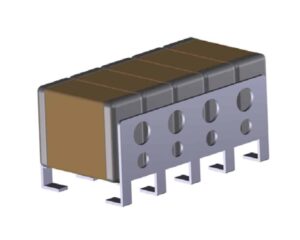

SRT Microcéramique High Capacitance Capacitor
