Susumu PAT3042 Series

  • Susumu

Product Features

  • Surface-mount high precision chip attenuator
  • Rated operating temperature +70°C
  • Temperature range of −55°C to +125°C.

Applications

The PAT3042 series of thin film precision chip attenuators with a wider frequency range from Susumu offer the designers low noise and good high-frequency characteristics which makes it possible to handle circuits with different frequencies with ease. The Susumu PAT3042 series is available in a chip size of 1612 and with an operating frequency range of DC∼10GHz. The distribution of the signal terminals in the middle and ground terminal at the ends, are designed for easy integration to coaxial connectors.

  • Surface-mount high precision chip attenuator
  • Attenuation of 0dB∼10dB, 16dB or 20dB
  • Attenuation tolerance values available of ±0.1dB to ±0.5dB depending on the atenuation and frequency required
  • Impedance value of 50Ω
  • Operating frequency of DC∼10GHz
  • Rated power of 0.25W
  • Chip size of 1612
  • Rated operating temperature +70°C
  • Temperature range is −55°C to +125°C



Susumu PAT3042 series thin film precision chip attenuators are ideal for the following applications:

  • Attenuator for coaxial lines/circuit
  • Attenuator for measuring instrumentation

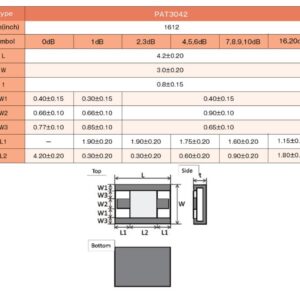

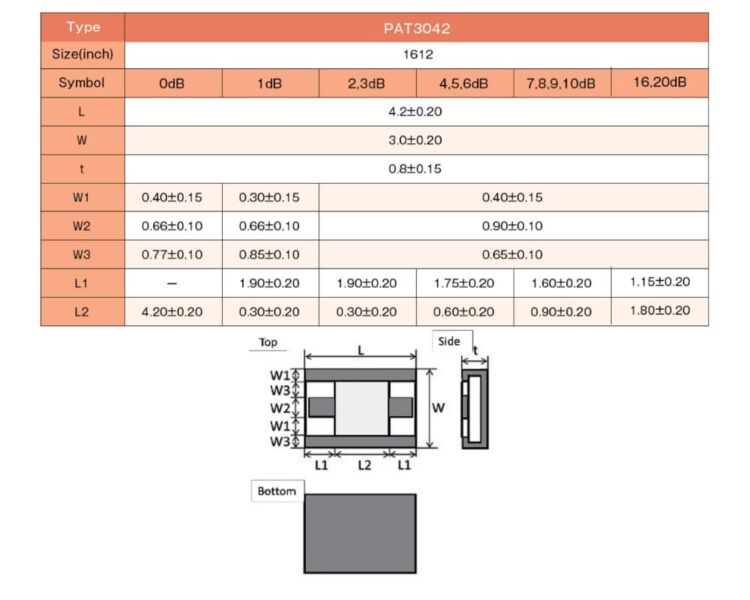

The below table gives the full specifications of the Susumu PAT series W type including the PAT3042:

Susumu PAT3042 Specifications
Please see the below table which includes the attenuation tolerance for the PAT3042 and PAT4556



Table 1
* Only PAT4556





Specifications

Dimensions 0.80 x 3.00 x 4.20mm
Attenuation

0dB, 1dB, 2dB, 3dB, 4dB, 5dB, 6dB, 7dB, 8dB, 9dB, 10dB, 16dB, 20dB

Impedance

50Ω

Operating Frequency

10GHz

Power Rating

Series / Model

Tolerance

,
