Thick Film

Resi TCTR Series

NTC Chip Thermistor
NTC thermistor with 390Ω to 1.6MΩ R25 range, 2410K to 4800K B-value and SMD sizes from 0402 to 0805 for temperature detection.

SRT CBW 0603

Bondable Thick Film Chip Resistors
  • Non-magnetic thick film chip resistor
  • Resistance range from 10Ω to 100GΩ
  • Tolerances from ±5.0% to ±30%
  • TCR from ±100 ppm/°C to ±3000 ppm/°C
  • Power rating of 0.1W (at +70°C)
  • Temperature from -55°C to +155°C

SRT CBW 0805

Bondable Thick Film Chip Resistors
  • Non-magnetic thick film chip resistor
  • Resistance range from 10Ω to 1TΩ
  • Tolerances from ±5.0% to ±30%
  • TCR from ±100 ppm/°C to ±3000 ppm/°C
  • Power rating of 0.125W (at +70°C)
  • Temperature range from -55°C up to +155°C

Talk to an Engineer

Get help specifying or customising the right product for your application.

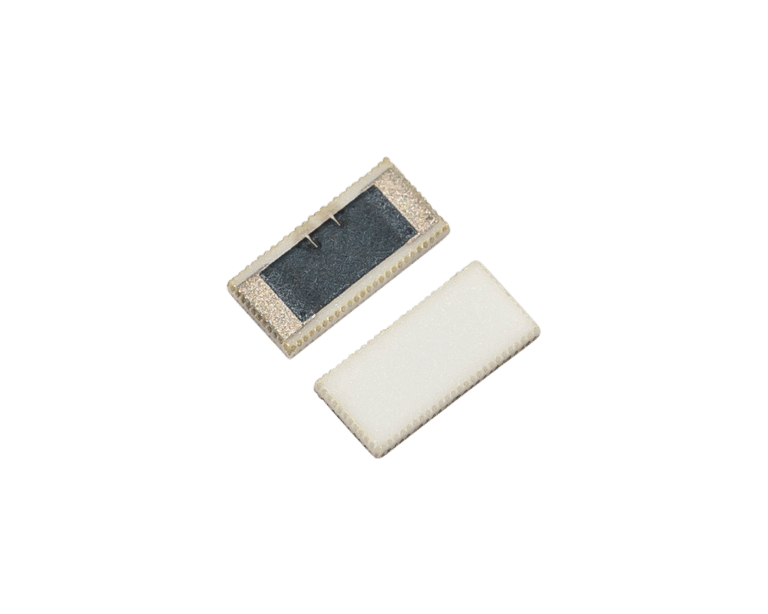

SRT CBW 1206

Bondable Thick Film Chip Resistors
  • Non-magnetic thick film chip resistor
  • Resistance range from 10Ω to 1TΩ
  • Tolerances from ±5.0% to ±30%
  • TCR from ±100 ppm/°C to ±2000 ppm/°C
  • Power rating of 0.25W (at +70°C)
  • Temperature range from -55°C to +155°C

SRT CHM 0805-HT

Precision High Value Thick Film Chip Resistors
  • High temperature, non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 1TΩ
  • Tolerances from ±2% to ±30%
  • TCR from ±25 ppm/°C to ±2000 ppm/°C
  • Power rating of 0.125W (at +70°C)
  • Temperature range from -55°C up to +300°C

SRT CHM 1206

Precision High Value Thick Film Chip Resistors
  • Non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 1TΩ
  • Tolerances from ±0.5% to ±30%
  • TCR from ±25 ppm/°C to ±2000 ppm/°C
  • Power rating of 0.250W (at +70°C)
  • Temperature range from -55°C up to +155°C

SRT CHM 1206-HT

Precision High Value Thick Film Chip Resistors
  • High temperature, non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 1TΩ
  • Tolerances from ±1% to ±30%
  • TCR from ±25 ppm/°C to ±2000 ppm/°C
  • Power rating of 0.25W (at +70°C)
  • Temperature range from -55°C up to +300°C

SRT CHM 1210

Precision High Value Thick Film Chip Resistors
  • Non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 1TΩ
  • Tolerances from ±0.5% to ±30%
  • TCR from ±25 ppm/°C to ±2000 ppm/°C
  • Power rating of 0.35W (at +70°C)
  • Temperature range from -55°C up to +155°C

SRT CHM 1210-HT

Precision High Value Thick Film Chip Resistors
  • High temperature, non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 1TΩ
  • Tolerances from ±1% to ±30%
  • TCR from ±25 ppm/°C to ±2000 ppm/°C
  • Power rating of 0.35W (at +70°C)
  • Temperature range from -55°C up to +300°C

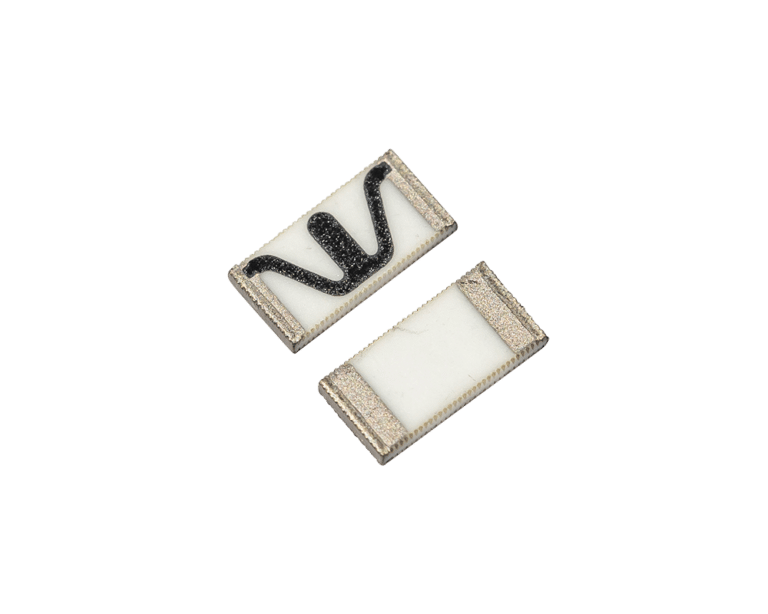

SRT CHM 2010

Precision High Value Thick Film Chip Resistors
  • Non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 1TΩ
  • Tolerances from ±0.5% to ±30%
  • TCR from ±25 ppm/°C to ±1000 ppm/°C
  • Power rating of 0.5W (at +70°C)
  • Temperature range from -55°C up to +155°C

SRT CHM 2010-HT

Precision High Value Thick Film Chip Resistors
  • High temperature, non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 1TΩ
  • Tolerances from ±2% to ±30%
  • TCR from ±25 ppm/°C to ±1000 ppm/°C
  • Power rating of 0.5W (at +70°C)
  • Temperature range from -55°C up to +300°C

SRT CHM 2512

Precision High Value Thick Film Chip Resistors
  • Non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 10TΩ
  • Tolerances from ±0.5% to ±30%
  • TCR from ±25 ppm/°C to ±3000 ppm/°C
  • Power rating of 1W (at +70°C)
  • Temperature range from -55°C up to +155°C

SRT CHM 2512-HT

Precision High Value Thick Film Chip Resistors
  • High temperature, non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 10TΩ
  • Tolerances from ±1% to ±30%
  • TCR from ±25 ppm/°C to ±3000 ppm/°C
  • Power rating of 1W (at +70°C)
  • Temperature range from -55°C up to +300°C

SRT CHM 4020

Precision High Value Thick Film Chip Resistors
  • Non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 10TΩ
  • Tolerances from ±0.5% to ±30%
  • TCR from ±25 ppm/°C to ±2000 ppm/°C
  • Power rating of 2W (at +70°C)
  • Temperature range from -55°C up to +155°C

SRT CHM 4020-HT

Precision High Value Thick Film Chip Resistors
  • High temperature, non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 10TΩ
  • Tolerances from ±1% to ±30%
  • TCR from ±25 ppm/°C to ±2000 ppm/°C
  • Power rating of 2W (at +70°C)
  • Temperature range from -55°C up to +300°C

SRT CHP Series

Power Chip Resistors on Aluminium‑Nitride Substrates (AlN)
Thick-film power chip resistors on aluminium-nitride substrates in sizes 1216, 2010, 2040, 2512 and 4020, with power ratings up to 2.5 W at 70 °C and operating temperatures from -55 °C to +200 °C. High thermal conductivity AlN and optional untrimmed versions support efficient heat spreading and enhanced pulse performance.

Custom Component Solutions

Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.
