PCB Mountable Pressure Sensors

  • Merit Sensor

Merit Sensor 7000 Series

Merit Sensor - 7000 Series
  • High-volume, medium-pressure sensing elements
  • Pressure ranges available 15psi, 50psi, 100psi, 300psi & 500psi
  • Absolute or Gauge options available
  • Temperature range โˆ’40ยฐC to +150ยฐC
  • Full scale outputs from 60mV to 210mV (at 5V excitation)
  • Impedance of 5kฮฉ (typical) or 3.5kฮฉยฑ0.5kฮฉ (optional)
  • Suitable for clean, dry air and non-corrosive gases media
View Product
Add to Compare
Datasheet
  • Compliant
  • Merit Sensor

Merit Sensor AP Series

  • Room temperature calibrated pressure sensor
  • Available for air, gas and liquid media
  • Custom options available
  • Utilises a piezoresistive Wheatstone bridge with a chemically etched silicon diaphragm
  • Suitable for high volume and low to medium-pressure applications
View Product
Add to Compare
  • Exempt
  • Merit Sensor

Merit Sensor BP Series

  • Blood pressure sensor
  • Designed for medical applications such as disposable blood pressure measurement, kidney dialysis machines, infusion pumps and surgical procedures
  • Excellent burst pressure with a dielectric gel barrier
  • Solid state piezoresistive sensor
  • Air, liquid and gas compatibility
View Product
Add to Compare
  • Exempt
  • Merit Sensor

Merit Sensor HM Series

  • Harsh media low and medium pressure MEMS sensing element
  • Suitable for air, gases and liquids that are compatible with silicon and glass
  • Bridge options of closed or closed with temperature diode available
  • Parts supplied as sawn wafer on tape in metal frame or die in waffle pack
View Product
Add to Compare
  • Exempt
  • Merit Sensor

Merit Sensor J Series

  • Low pressure MEMS sensing element
  • Suitable for clean, dry air and non corrosive gases
  • Bridge options of half open and closed available
  • Parts supplied as sawn wafer on tape in metal frame
View Product
Add to Compare
  • Exempt
  • Merit Sensor

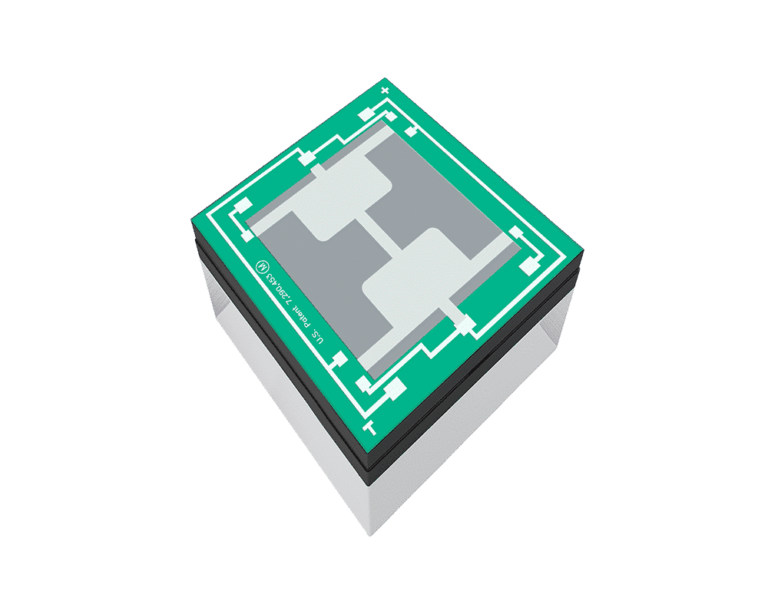

Merit Sensor L Series

Merit Sensor L Series
  • Ultra-low pressure MEMS piezoresistive pressure sensor
  • Pressure ranges of 0.15psi, 0.3psi & 1psi
  • Constraint of Gauge
  • Temperature range โˆ’40ยฐC to +150ยฐC
  • Full scale outputs from 30mV to 60mV (at 5V excitation)
  • Impedance of 5kฮฉ (typical)
  • Suitable for clean, dry air and non-corrosive gases media
View Product
Add to Compare
Datasheet
  • Compliant
  • Merit Sensor

Merit Sensor LP1400 Series

  • Uncompensated surface mountable pressure sensor with J-leads
  • Suitable for ultra low pressure sensing applications
  • Designed for clean, dry air and non corrosive gases
  • Sentiumยฎ technology developed to provide a best-in-class operating temperature range and superior stability
View Product
Add to Compare
  • Exempt
  • Merit Sensor

Merit Sensor HTS Series

  • Surface mountable analog and digital pressure sensor
  • Pressure ranges from 1 to 100 psi
  • Absolute or Gauge options available
  • Temperature range โˆ’40ยฐC to +125ยฐC
  • Compatible with wet, corrosive media
View Product
Add to Compare
Datasheet
  • Compliant
  • Merit Sensor

Merit Sensor LP1410 Series

  • Analog compensated output surface mountable pressure sensor with J-leads
  • Suitable for ultra low pressure sensing applications
  • Designed for clean, dry air and non corrosive gases
  • Sentiumยฎ technology developed to provide a best-in-class operating temperature range and superior stability
View Product
Add to Compare
  • Exempt
  • Merit Sensor

Merit Sensor LP1420 Series

  • Digital compensated output surface mountable pressure sensor with J-leads
  • Suitable for ultra low pressure sensing applications
  • Designed for clean, dry air and non corrosive gases
  • Clock speed of 1MHz
  • Supply voltage of 5V
  • Sentiumยฎ technology developed to provide a best-in-class operating temperature range and superior stability
View Product
Add to Compare
Datasheet
  • Exempt
  • Merit Sensor

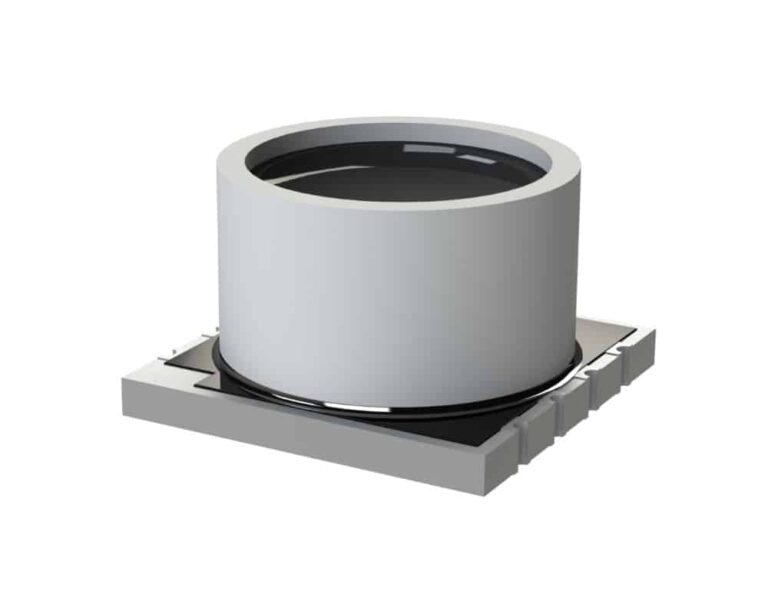

Merit Sensor MS Series

  • Surface mountable low to medium pressure sensor
  • Suitable for clean, dry air and non corrosive gases
  • Merit Sensor is a leader in piezoresistive pressure sensing and partners with clients to create high performing solutions for a variety of applications and industries
  • Parts are available with a cover (no gel or gel variants) or cap (ceramic or round ceramic chimney)
View Product
Add to Compare
  • Exempt
  • Merit Sensor

Merit Sensor PMD Series

  • Through-hole low to medium pressure monitoring sensor
  • Suitable for clean, dry air and non corrosive gases
  • Merit Sensor is a leader in piezoresistive pressure sensing and partners with clients to create high performing solutions for a variety of applications and industries.
View Product
Add to Compare
  • Exempt
  • Merit Sensor

Merit Sensor RPD Series

  • Uncompensated packaged pressure sensor
  • Excellent performance in both constant current and constant voltage applications
  • Suitable for air, liquid and gas media
  • Simple pressure source attachment and electrical connection
  • Designed for a soldered connection to wires, ribbon cable,or flex strip
  • Port options of gel tube without gel, gel tube with gel (not available above 100psi) of face seal available
View Product
Add to Compare
  • Exempt
  • Merit Sensor

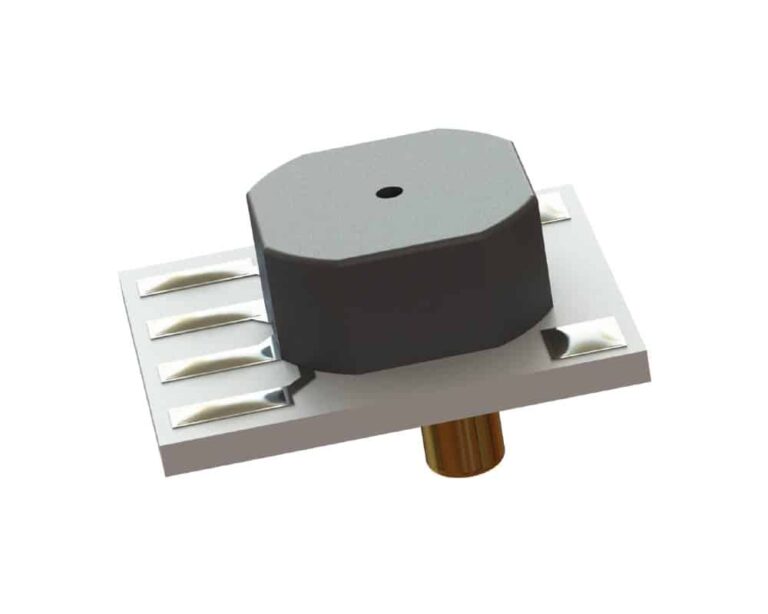

Merit Sensor RS Series

  • Uncompensated packaged pressure sensor
  • Suitable for liquid, air and gases (to be determined on an application by application basis)
  • Merit Sensor is a leader in piezoresistive pressure sensing and partners with clients to create high performing solutions for a variety of applications and industries
  • Excellent performance in both constant current and constant voltage applications
  • Simple pressure source attachment and electrical connections
  • Designed for a soldered connection to wires, ribbon cable, flex strip or surface-mount pcb
View Product
Add to Compare
  • Exempt
  • Merit Sensor

Merit Sensor S Series

  • Precision MEMS silicon pressure sensor die
  • Pressure ranges of 5 to 300psi / 0.34 to 21 bar
  • Pressure type of absolute or gauge
  • Temperature range โˆ’40ยฐC to +150ยฐC
  • Full scale outputs from 60mV to 180mV (at 5V excitation)
  • Impedance of 5kฮฉ (typical)
  • Suitable for clean, dry air and non-corrosive gases media
View Product
Add to Compare
Datasheet
  • Compliant
  • Merit Sensor

Merit Sensor SMD Series

  • Surface mountable low to medium pressure sensor
  • Suitable for clean, dry air and non corrosive gases
  • Merit Sensor is a leader in piezoresistive pressure sensing and partners with clients to create high performing solutions for a variety of applications and industries
  • Available options include a cover with or without gel as well as square ceramic cap or round ceramic chimney
View Product
Add to Compare
  • Exempt
