OMNIMATE® Signal

  • Weidmüller

Weidmüller B2CF 3.50/180 Series

  • PCB terminal connector with 2 row female plug
  • Rated current for minimum number of poles 13.4A (IEC) and 9.5A (UL)
  • Dimensions of L1 3.5mm to 76.5mm (depending on the number of poles required)
  • Push in spring connection with integrated push buttons for opening the terminal point
  • Clamping range from 0.14mm² to 1.5mm²
  • Temperature range −50°C up to +120°C
  • CSA and UL 1059 approved, IEC listed
View Product
Add to Compare
  • Compliant
  • Weidmüller

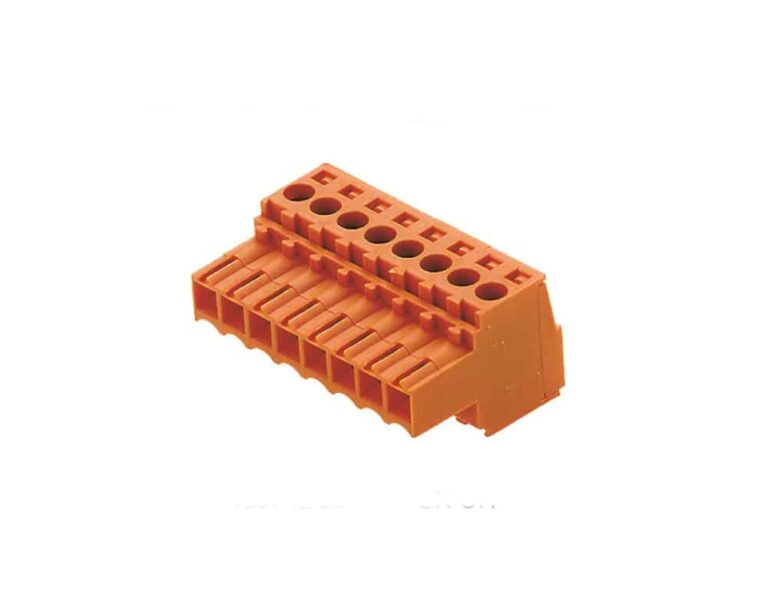

Weidmüller BL 3.50/180 Series

  • Female plug in connector
  • Rated current for minimum number of poles 17A (IEC) and 10A (UL)
  • Dimensions of L1 3.5mm to 80.5mm (depending on the number of poles required)
  • Clamping yoke screw connection
  • Clamping range from 0.08mm² to 1.5mm²
  • Wire connection cross section from AWG 28 to AWG 14
  • Temperature range −50°C up to +100°C
  • CSA and UL 1059 approved, IEC listed
View Product
Add to Compare
  • Compliant
  • Weidmüller

Weidmüller BLF 2.50/180 Series

Weidmüller OMNIMATE® BLF 2.50/180 Series | PCB Singal Connector
  • PCB terminal connector with female plug
  • Rated current for minimum number of poles 6A (IEC) and 5A (UL)
  • Dimensions of L1 2.5mm to 27.5mm (depending on the number of poles required)
  • Push in spring connection with integrated push buttons for opening the terminal point
  • Wire connection cross section from AWG28 (0.08mm²) to AWG 20 (0.5mm²)
  • Temperature range −40°C up to +105°C
  • CSA and UL 1059 approved, IEC listed
View Product
Add to Compare
  • Compliant
  • Weidmüller

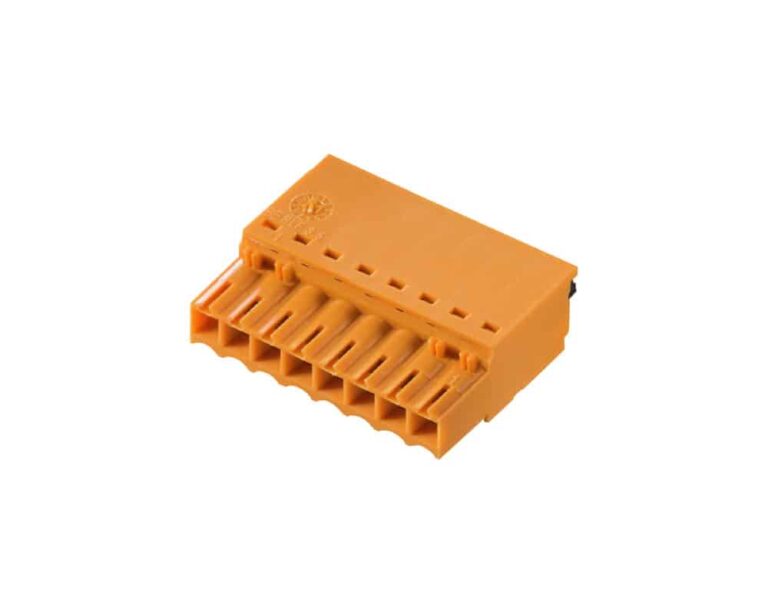

Weidmüller BLF 3.50/180 Series

  • Female plug in connector
  • Rated current for minimum number of poles 17.5A (IEC) and 10A (UL)
  • Dimensions of L1 3.5mm to 80.5mm (depending on the number of poles required)
  • Push in spring connection
  • Clamping range from 0.14mm² to 1.5mm²
  • Wire connection cross section from AWG 26 to AWG 16
  • Temperature range −50°C up to +120°C
  • CSA and UL 1059 approved, IEC listed
View Product
Add to Compare
  • Compliant
  • Weidmüller

Weidmüller BLF 5.08HC/180 Series

  • High current female plug in connector
  • Rated current for minimum number of poles 24A (IEC) and 18.5A (UL)
  • Dimensions of L1 5.08mm to 116.84mm (depending on the number of poles required)
  • Clamping range from 0.13mm² to 3.31mm²
  • Wire connection cross section from AWG 26 to AWG 12
  • Temperature range −50°C up to +100°C
  • CSA and UL 1059 approved, IEC listed
View Product
Add to Compare
  • Compliant
  • Weidmüller

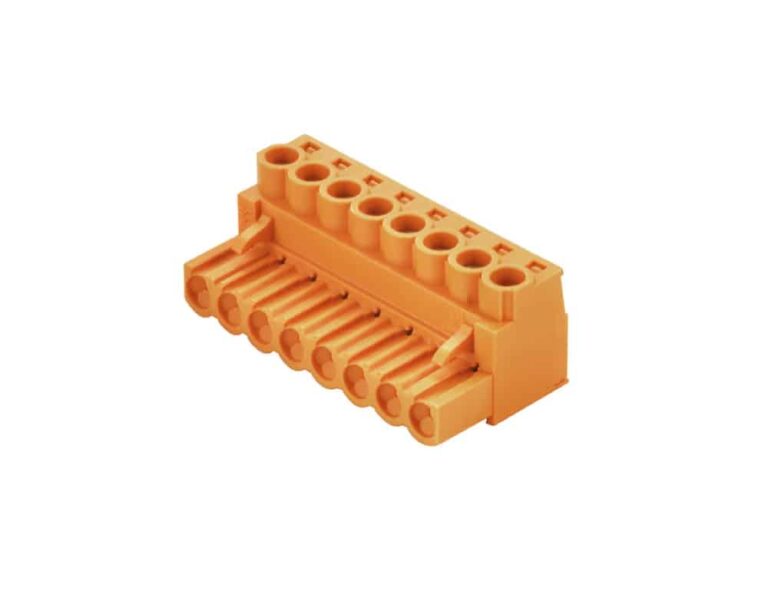

Weidmüller BLZP 5.08HC/180 Series

  • High current female plug in connector
  • Rated current for minimum number of poles 23A (IEC) and 20A (UL)
  • Dimensions of L1 5.08mm to 116.84mm (depending on the number of poles required)
  • Clamping yoke screw connection
  • Clamping range from 0.13mm² to 4mm²
  • Wire connection cross section from AWG 30 to AWG 12
  • Temperature range −50°C up to +100°C
  • CSA and UL 1059 approved, IEC listed
View Product
Add to Compare
  • Compliant
  • Weidmüller

Weidmüller LM 3.50/90 Series

  • PCB terminal connector
  • Rated current for minimum number of poles 16A (IEC) and 10A (UL)
  • Dimensions of L1 3.5mm to 5mm (depending on the number of poles required)
  • SMT solder connection with a solder pin length of 3.2mm
  • Wire connection cross section from AWG 28 to AWG 14
  • Temperature range of −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
View Product
Add to Compare
  • Compliant
  • Weidmüller

Weidmüller LM 5.08/90 Series

  • PCB terminal connector
  • Rated current for minimum number of poles 17.5A (IEC) and 15A (UL)
  • Dimensions of L1 5.08mm to 119.84mm (depending on the number of poles required)
  • SMT solder connection with a solder pin length of 3.5mm
  • Wire connection cross section from AWG 24 to AWG 14
  • Temperature range of −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
View Product
Add to Compare
  • Compliant
  • Weidmüller

Weidmüller LSF-SMD 3.50/180 Series

  • PCB terminal connector
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Dimensions of L1 3.5mm to 38.5mm (depending on the number of poles required)
  • SMD solder connection
  • Wire connection cross section from AWG 28 to AWG 14
  • Temperature range of −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
View Product
Add to Compare
  • Compliant
  • Weidmüller

Weidmüller LSF-SMD 3.50/90 Series

  • PCB terminal connector
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Dimensions of L1 3.5mm to 38.5mm (depending on the number of poles required)
  • SMD solder connection
  • Wire connection cross section from AWG 28 to AWG 14
  • Temperature range of −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
View Product
Add to Compare
  • Compliant
  • Weidmüller

Weidmüller LSF-SMD 5.00/180 Series

LSF-SMD 5.00/180 Series PCB Terminal | Weidmüller OMNIMATE® Signal
  • PCB terminal connector
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Dimensions of L1 5mm to 35mm (depending on the number of poles required)
  • SMD solder connection
  • Wire connection cross section from AWG 28 to AWG 14
  • Temperature range of −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
View Product
Add to Compare
  • Compliant
  • Weidmüller

Weidmüller LSF-SMD 5.00/90 Series

  • PCB terminal connector
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Dimensions of L1 5mm to 35mm (depending on the number of poles required)
  • SMD solder connection
  • Wire connection cross section from AWG 28 to AWG 14
  • Temperature range of −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
View Product
Add to Compare
  • Compliant
  • Weidmüller

Weidmüller LSF-SMD 7.50/180 Series

  • PCB terminal connector
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Dimensions of L1 7.5mm to 37.5mm (depending on the number of poles required)
  • SMD solder connection
  • Wire connection cross section from AWG 28 to AWG 14
  • Temperature range of −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
View Product
Add to Compare
  • Compliant
  • Weidmüller

Weidmüller LSF-SMD 7.50/90 Series

  • PCB terminal connector
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Dimensions of L1 7.5mm to 37.5mm (depending on the number of poles required)
  • SMD solder connection
  • Wire connection cross section from AWG 28 to AWG 14
  • Temperature range of −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
View Product
Add to Compare
  • Compliant
  • Weidmüller

Weidmüller LSF-SMT 3.50/180 series

  • PCB terminal connector
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Dimensions of L1 3.5mm to 80.5mm (depending on the number of poles required)
  • SMT solder connection with a solder pin length of 3.5mm
  • Wire connection cross section from AWG 28 to AWG 14
  • Temperature range of −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
View Product
Add to Compare
  • Compliant
  • Weidmüller

Weidmüller LSF-SMT 3.50/90 Series

  • PCB terminal connector
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Dimensions of L1 3.5mm to 80.5mm (depending on the number of poles required)
  • SMT solder connection with a solder pin length of 3.5mm
  • Wire connection cross section from AWG 28 to AWG 14
  • Temperature range of −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
View Product
Add to Compare
  • Compliant
