Alpha RWA Series

High precision wraparound resistor
Resistance range form 100Ω to 5kΩ
Tolerance of ±005% or ±0.1%
TCR of ±5 ppm/°C
Power rating of 0.1W (at 70°C)
Temperature range from -65°C to +155°C

Caddock 1789 Series

Precision resistor network
Resistance range from 0.5Ω to 10kΩ
Tolerance of ±0.05% to ±1.0%
TCR of ±50, ±80 or ±100 ppm/°C
Power rating of 100mW up to 2W per resistor
Temperature range from 0°C to +70°C

Exxelia Ohmcraft HC 0505

Bondable SMD Resistors
Resistance range from 10kΩ to 10GΩ
Tolerances from ±1% to ±20%
TCR from ±50 ppm/°C to >±200 ppm/°C
Power rating of 0.1W
Voltage rating of 100V
Temperature range from -55°C to +150°C

SRT CBW 0603

Non-magnetic thick film chip resistor
Resistance range from 10Ω to 100GΩ
Tolerances from ±5.0% to ±30%
TCR from ±100 ppm/°C to ±3000 ppm/°C
Power rating of 0.1W (at +70°C)
Temperature from -55°C to +155°C

SRT CHR 0603

Non-magnetic thick film chip resistor
Resistance range from 1Ω to 10MΩ
Tolerances from ±1% to ±20%
TCR from ±50 ppm/°C to ±250 ppm/°C
Power rating of 0.1W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CHR 0603-HT

High temperature, non-magnetic chip resistor
Resistance range from 1Ω to 10MΩ
Tolerances from ±2% to ±20%
TCR from ±50 ppm/°C to ±250 ppm/°C
Power rating of 0.1W (at +70°C)
Temperature range from -55°C up to +300°C

SRT CHS 0603

Non-magnetic thick film chip resistor
Resistance range from 10MΩ to 100GΩ
Tolerances from ±1% to ±30%
TCR from ±50 ppm/°C to ±2000 ppm/°C
Power rating of 0.1W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CHS 0603-HT

High temperature, non-magnetic chip resistor
Resistance range from 10MΩ to 100GΩ
Tolerances from ±2% to ±30%
TCR from ±50 ppm/°C to ±3000 ppm/°C
Power rating of 0.1W (at +70°C)
Temperature range from -55°C up to +300°C

SRT CRA 0603

Trimmable thick film chip resistor
Resistance range from 1Ω to 10MΩ
Tolerances from ±5% to ±30%
TCR from ±50 ppm/°C to ±250 ppm/°C
Power rating of 0.1W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CRB 0603

Trimmable non-magnetic, thick film chip resistor
Resistance range from 1Ω to 10MΩ
Tolerances from ±5% to ±30%
TCR from ±50 ppm/°C to ±250 ppm/°C
Power rating of 0.1W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CRB 0603-HT

High temperature trimmable thick film chip resistor
0603 package size
Temperature range of -55°C to +300°C
Voltage rating of 75V trimmed or 220V untrimmed (trimming ratios 1.5/single cut)
No organics
PtAg (Platinum-Silver), unpassivated contact areas for soldering and conductive gluing
Non-magnetic
Suitable for laser and air-abrasive trimming
High trimming ratios by special geometries

Susumu ATS2012 Series

Surface-mount high frequency chip attenuator
Rated operating temperature +70°C
Temperature range of −55°C to +125°C

Susumu MRG2012 Series

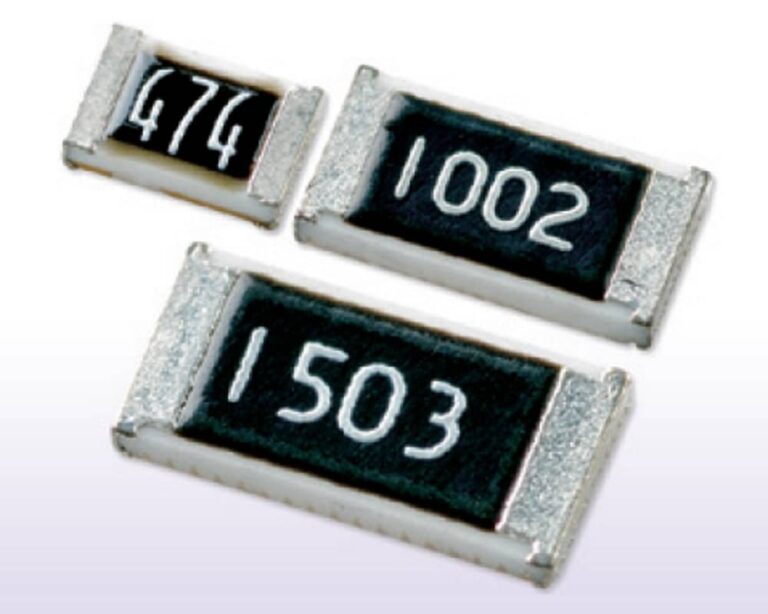

Surface-mount anti-surge thin film chip resistor
Temperature range of −55°C to +155°C
Maximum voltage of 150V
AEC-Q200 Compliant
Thin film structure enabling low noise and anti-sulfur

Susumu NRG1608 Series

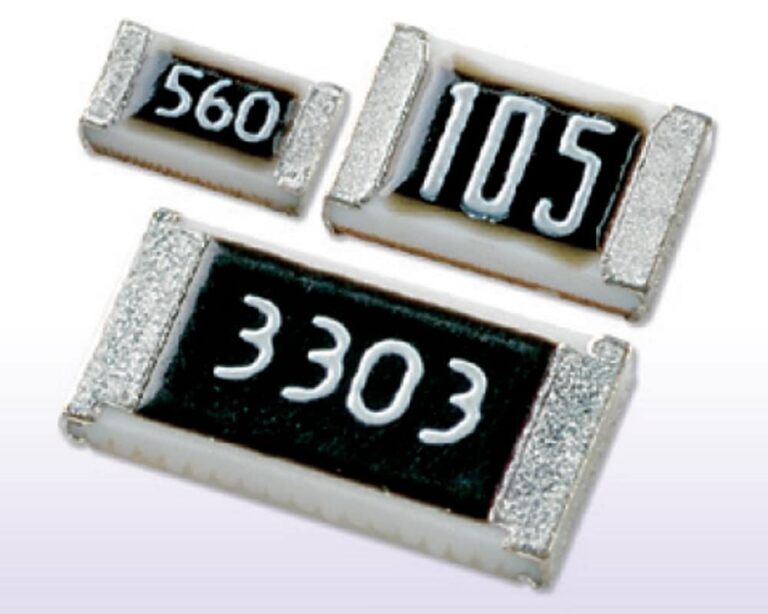

Surface-mount non-magnetic metal thin film chip precision resistor
Temperature range of −55°C to +155°C
Maximum voltage of 100V
Thin film structure enabling low noise and anti-sulfur.

Susumu PAT1220 Series

High precision chip attenuator
Surface mount design with an 0805 chip size
Attenuation of 0dB to 10dB (1dB steps)
Attenuation tolerance down to ±0.3dB
Impedance of 50Ω
Temperature range from −55°C to +125°C

Susumu PBV1632S Series

Surface-mount thermo-variable chip attenuator
Temperature range of −40°C to +100°C
Resistive construction allows operation in a wide frequency range
