0603 series

Exxelia Ohmcraft HVC 0603

High Voltage SMD Resistors
Resistance range from 10kΩ to 50GΩ
Tolerances from ±0.5% to ±20%
TCR of ±50 ppm/°C, ±100 ppm/°C or ±200 ppm/°C
Power rating of 0.06W
Voltage rating of 400V
Temperature range from -55°C to +150°C

Exxelia Ohmcraft MCH 0603

Military Grade High Voltage SMD Resistors
Resistance range from 10kΩ to 50GΩ
Tolerances from ±0.5% to ±20%
TCR of ±50 ppm/°C, ±100 ppm/°C or ±200 ppm/°C
Power rating of 0.06W
Voltage rating of 4000V
Temperature range from -55°C to +150°C

Exxelia Ohmcraft SM 0603

High Ohmic SMD Resistors
Resistance range from 10kΩ to 50GΩ
Tolerances from ±0.5% to ±20%
TCR of ±50 ppm/°C, ±100 ppm/°C or ±200 ppm/°C
Power rating of 0.06W
Voltage rating of 100V
Temperature range from -55°C to +150°C

SRT CBW 0603

Non-magnetic thick film chip resistor
Resistance range from 10Ω to 100GΩ
Tolerances from ±5.0% to ±30%
TCR from ±100 ppm/°C to ±3000 ppm/°C
Power rating of 0.1W (at +70°C)
Temperature from -55°C to +155°C

SRT CHR 0603

Non-magnetic thick film chip resistor
Resistance range from 1Ω to 10MΩ
Tolerances from ±1% to ±20%
TCR from ±50 ppm/°C to ±250 ppm/°C
Power rating of 0.1W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CHR 0603-HT

High temperature, non-magnetic chip resistor
Resistance range from 1Ω to 10MΩ
Tolerances from ±2% to ±20%
TCR from ±50 ppm/°C to ±250 ppm/°C
Power rating of 0.1W (at +70°C)
Temperature range from -55°C up to +300°C

SRT CHS 0603

Non-magnetic thick film chip resistor
Resistance range from 10MΩ to 100GΩ
Tolerances from ±1% to ±30%
TCR from ±50 ppm/°C to ±2000 ppm/°C
Power rating of 0.1W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CHS 0603-HT

High temperature, non-magnetic chip resistor
Resistance range from 10MΩ to 100GΩ
Tolerances from ±2% to ±30%
TCR from ±50 ppm/°C to ±3000 ppm/°C
Power rating of 0.1W (at +70°C)
Temperature range from -55°C up to +300°C

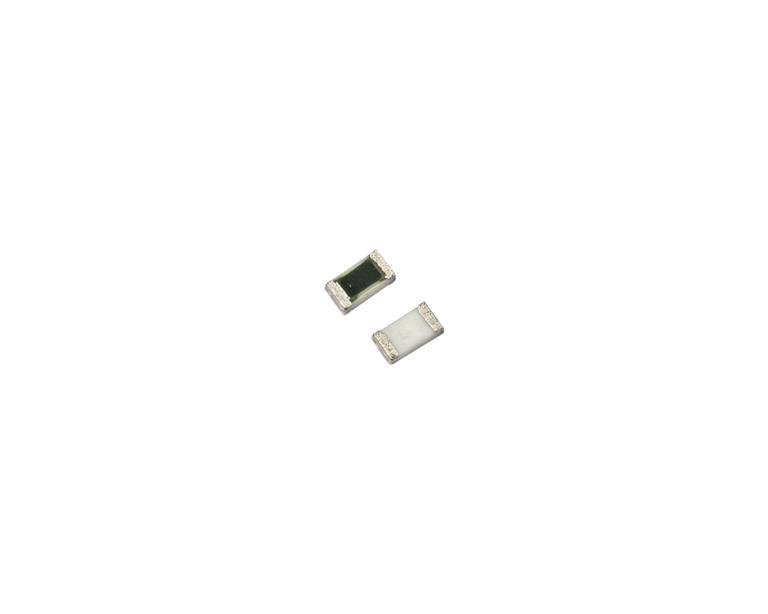

SRT CRA 0603

Trimmable thick film chip resistor
Resistance range from 1Ω to 10MΩ
Tolerances from ±5% to ±30%
TCR from ±50 ppm/°C to ±250 ppm/°C
Power rating of 0.1W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CRB 0603

Trimmable non-magnetic, thick film chip resistor
Resistance range from 1Ω to 10MΩ
Tolerances from ±5% to ±30%
TCR from ±50 ppm/°C to ±250 ppm/°C
Power rating of 0.1W (at +70°C)
Temperature range from -55°C up to +155°C

SRT Microcéramique Chip Capacitors with Negative TC

NP0 (C0G) Chip ceramic capacitor with negative TC
Highest quality and reliability, suitable for safety-critical industries
Dissipation factor under 10.10^-4 at 1V_rms and 1kH (or 1MHz)
Insulation resistance of 25°C/Un 10⁵ MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 10⁴ MΩ or 100 Ohm-Farad whichever is less
Dielectric strength test performed per method 103 of EIA 198-2-E

SRT Microcéramique High Frequency Capacitor Series

MLCC Capacitor for RF and Microwave communication
Highest quality and reliability, suitable for safety-critical industries
Dissipation factor under 5.10^-4 at 1V_rms and 1MHz for values ≤ 1000pF and under 5.10^-4 at 1V_rms and 1KHz for values > 1000pF
Insulation resistance of 25°C/Un 10⁵ MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 10⁴ MΩ or 100 Ohm-Farad whichever is less
Dielectric strength test performed per method 103 of EIA 198-2-E

SRT Microcéramique High Temperature NP0 Capacitor Series

High Temperature, ultra stable MLCC Capacitor
Highest quality and reliability, suitable for safety-critical industries
Dissipation factor under 10.10^-4 at 1V_rms and 1kHz (or 1MHz)
Insulation resistance of 25°C/Un 10⁵ MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 10⁴ MΩ or 100 Ohm-Farad whichever is less
Dielectric strength test performed per method 103 of EIA 198-2-E

SRT Microcéramique High Temperature X7R Capacitor Series

High Temperature MLCC Capacitor
Highest quality and reliability, suitable for safety-critical industries
Dissipation factor up to 0.025
Insulation resistance of 25°C/Un 10⁵ MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 10⁴ MΩ or 100 Ohm-Farad whichever is less
Dielectric strength test performed per method 103 of EIA 198-2-E

SRT Microcéramique High Voltage NP0 Capacitor Series (200V-1kV)

Ultra stable ceramic capacitor
Highest quality and reliability, suitable for safety-critical industries
Dissipation factor under 10.10^-4 at 1V_rms and 1kHz (or 1MHz)
Insulation resistance of 25°C/Un 10⁵ MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 10⁴ MΩ or 100 Ohm-Farad whichever is less
Dielectric strength test performed per method 103 of EIA 198-2-E

SRT Microcéramique High Voltage X7R Capacitor Series (200V-1kV)

Stable ceramic capacitor
High quality and reliability, suitable for safety-critical industries
Dissipation factor up to 0.025 at 1kHz for C over 1nF, and up to 0.025 at 1MHz for C up to 1nF
Insulation resistance of 25°C/Un 10⁵ MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 10⁴ MΩ or 100 Ohm-Farad whichever is less
Dielectric strength test performed per method 103 of EIA 198-2-E
