Isabellenhütte BAS Series

Shunt resistor
8420 package size
Resistance range from 35µΩ to 500µΩ
Tolerance of ±5.0%
TCR from <±50 ppm/°C
Power rating of 36W
Temperature range from -40°C to +170°C

Isabellenhütte BRS Series

Current sensing resistor
3812 chip size
Resistance range from 0.002Ω to 0.025Ω
Tolerances from ±1%
TCR from ±100 ppm/°C
Power rating of 2W (at 120°C)
Temperature range from -55°C to +170°C

Isabellenhütte BVB Series

Current sensing resistor
2725 package size
Resistance range from 0.0002Ω to 0.005Ω
Tolerances of ±1% and ±5%
TCR of <±20ppm/°C or <±50ppm/°C
Power rating 12W (at 70°C)
Temperature range from -65°C to +170°C

Isabellenhütte BVE Series

Current sensing resistor
Surface-mount 5930 package
Resistance range from 0.0001Ω to 0.003Ω
Tolerance ±1.0% and ±5.0%
TCR from <±50 ppm/°C
Power rating of 15W (at +70°C)
Temperature range from -55°C to +170°C

Isabellenhütte BVN Series

Current sensing resistor
4-terminal surface-mount 1216 package
Resistance range from 0.0003Ω to 0.003Ω
Tolerance ±1.0% or ±5.0%
TCR value <50 ppm/°C
Power rating 10W (at +70°C)
Temperature range from -65°C to +170°C

Isabellenhütte BVR Series

Current sensing resistor
4-terminal surface-mount 4026 package
Resistance range from 0.0002Ω to 0.003Ω
Tolerance ±1.0% or ±5.0%
TCR of <20 ppm/°C or <50 ppm/°C
Power rating up to 12W (at 70°C)
Temperature range from -65°C to +170°C

Isabellenhütte BVS Series

Current sensing resistor
Surface-mount 3920 chip size
Resistance range from 0.0002Ω to 0.003Ω
Tolerances of ±1.0% and ±5.0%
TCR value from ±50 ppm/°C
Power rating up to 12W (at 70°C)
Temperature range from -65°C to +170°C

Isabellenhütte BVT Series

Current sensing resistor
Surface-mount 2512 chip size
Resistance range from 0.0003Ω to 0.0068Ω
Tolerances of ±1.0% and ±5.0%
TCR from ±50 ppm/°C
Power rating up to 6W at +70°C
Temperature range from -65°C to +170°C

Isabellenhütte BVZ Series

Current sensing resistor
Surface-mount 4026 chip size
Resistance range from 0.000525Ω to 0.003Ω
Tolerances of ±1.0%, ±2.0% and ±5.0%
TCR from <60 ppm/°C
Power rating up to 13W at +70°C
Temperature range from -65°C to +170°C

Isabellenhütte FMK Series

Current sensing resistor
Surface-mount 1206 chip size
Resistance range from 0.0015Ω to 0.006Ω
Tolerances of ±1% and ±5%
TCR of <50 ppm/°C
Power rating up to 4W at 70°C
Temperature range from -65°C to +170°C

Isabellenhütte FMP Series

Current sensing resistor
Surface-mount 2010 chip size
Resistance range from 0.0015Ω to 0.006Ω
Tolerances of ±1.0% and ±5.0%
TCR of <50 ppm/K
Power rating up to 4W (at 70°C)
Temperature range from -65°C to +170°C

Isabellenhütte WAF Series

Current sensing precision resistor
Constant current up to 77A (1mOhm)
Resistance range from 0.000487Ω to 0.001Ω
Tolerances of ±1.0% and ±5.0%
TCR down to ±40ppm/K
Power rating up to 3.5W (at 70°C)
AEC-Q200 qualified

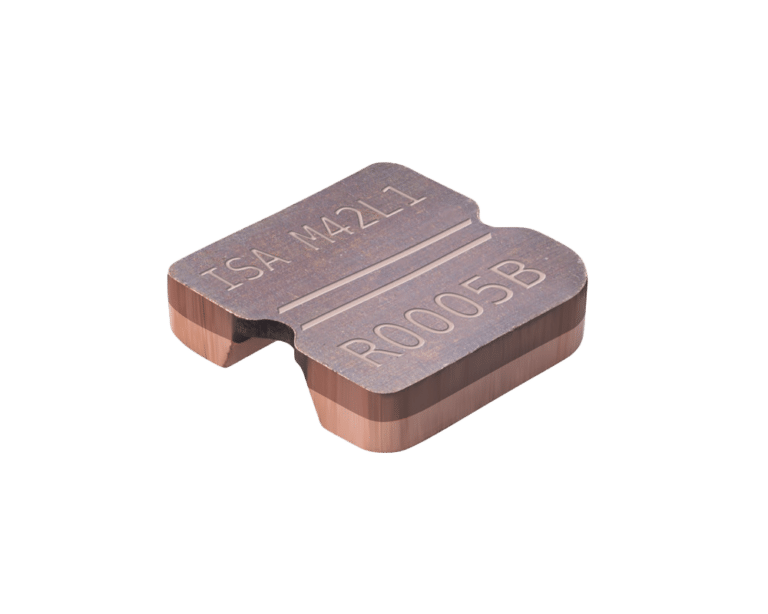

Isabellenhütte WAK Series

Current sensing precision resistor
Constant current up to 90A (0.5mΩ)
Resistance range from 0.0005Ω and 0.001Ω
Tolerances of ±1.0% and ±5.0%
TCR of <100 and <130 ppm/K
Power rating of 4W (up to 150°C)
AEC-Q200 qualified

Isabellenhütte KVM Series

Current sensing resistor
Resistance values of 100µΩ or 50µΩ
Tolerance of ±5%
TCR from <50 ppm/°C
Power rating of 10W (at 70°C)
Temperature range from -55°C to +170°C
