Isabellenhütte

Isabellenhütte IVT-S series

Current & voltage measurement sensor
Current range up to ±2,500A
Voltage range up to ±1,200V (Extended)
Communication based on CANbus 2.0 & DBC
Accuracy of ±0.4% of reading
Temperature range from -40°C to +105°C

Add to Compare

Datasheet

Isabellenhütte IVT 3 Base

Current measurement sensor (ASIL C)
Current measurement up to 4,000A (Ext)
Temperature Measurement
Communication based on CAN 2.0B with DBC
Total accuracy of ±0.4% of rdg. +0.1A
Supply voltage 12V/24V**
Temperature range from -40°C to +125°C

Add to Compare

Datasheet

Isabellenhütte IVT 3 Pro

Current measurement sensor (ASIL C)
3V or 6V measurement channels (ASIL B)
Active insulation monitoring (QM)
Temperature measurement
Current measurement up to 4,000A (Ext)
Voltage measurement up to 1,250V (Ext)
Temperature range from -40°C to +125°C

Add to Compare

Datasheet

Isabellenhütte A-H1 Series

A-H1 current sense resistor
4-terminal through-hole design
Resistance range from 0.001Ω to 100Ω
Tolerance of ±0.1% or ±1%
TCR of <±30 ppm/°C
Power rating of 10W on a suitable heat sink
Temperature range from -55°C to +140°C

Add to Compare

Datasheet

Isabellenhütte A-H2 Series

Current sense resistor
4-terminal through-hole design
Resistance range from 0.001Ω to 100Ω
Tolerance of ±0.1% or ±1%
TCR of <±30 ppm/°C
Power rating of 10W on a suitable heat sink
Temperature range from -55°C to +140°C

Add to Compare

Datasheet

Isabellenhütte AZ-H1 Series

Current sensing resistor
4-terminal through-hole design
Resistance range from 0.002Ω to 5Ω
Tolerance of ±0.1% or ±1%
TCR of <±3 ppm/°C or <±10 ppm/°C (+20°C to +60°C)
Power rating 10W on a suitable heat sink
Temperature range from -55°C to +140°C

Add to Compare

Datasheet

Isabellenhütte AZ-H2 Series

Current sensing resistor
4-terminal through-hole design
Resistance range from 0.002Ω to 1Ω
Tolerance of ±0.1% or ±1%
TCR of <±3 ppm/°C or <±10 ppm/°C (+20°C to +60°C)
Power rating 10W on a suitable heat sink
Temperature range from -55°C to +140°C

Add to Compare

Datasheet

Isabellenhütte BSS Series

Shunt resistor
8420 Package size
Resistance value of 100µΩ
Tolerance of ±5.0%
TCR of <±50 ppm/°C
Power rating of 20W
AEC-Q200 qualified

Add to Compare

Datasheet

Isabellenhütte BAL Series

Precision shunt resistor
Resistance value of 0.1mΩ
Tolerance of ±5%
TCR of 20 ± 40 ppm/℃
Up to 12W permanent power
Continuous current load up to 350 A
AEC-Q200 qualification

Add to Compare

Datasheet

Isabellenhütte BAS Series

Shunt resistor
8420 package size
Resistance range from 35µΩ to 500µΩ
Tolerance of ±5.0%
TCR from <±50 ppm/°C
Power rating of 36W
Temperature range from -40°C to +170°C

Add to Compare

Datasheet

Isabellenhütte BKW Series

Current sensing resistor
4-terminal surface-mount design
Resistance range from 0.0003Ω to 0.0005Ω
Tolerance ±5.0%
TCR of <±20 ppm/°C
Power rating of 3W
Temperature range from -55°C to +140°C

Add to Compare

Datasheet

Isabellenhütte BRS Series

Current sensing resistor
3812 chip size
Resistance range from 0.002Ω to 0.025Ω
Tolerances from ±1%
TCR from ±100 ppm/°C
Power rating of 2W (at 120°C)
Temperature range from -55°C to +170°C

Add to Compare

Datasheet

Isabellenhütte BVB Series

Current sensing resistor
2725 package size
Resistance range from 0.0002Ω to 0.005Ω
Tolerances of ±1% and ±5%
TCR of <±20ppm/°C or <±50ppm/°C
Power rating 12W (at 70°C)
Temperature range from -65°C to +170°C

Add to Compare

Datasheet

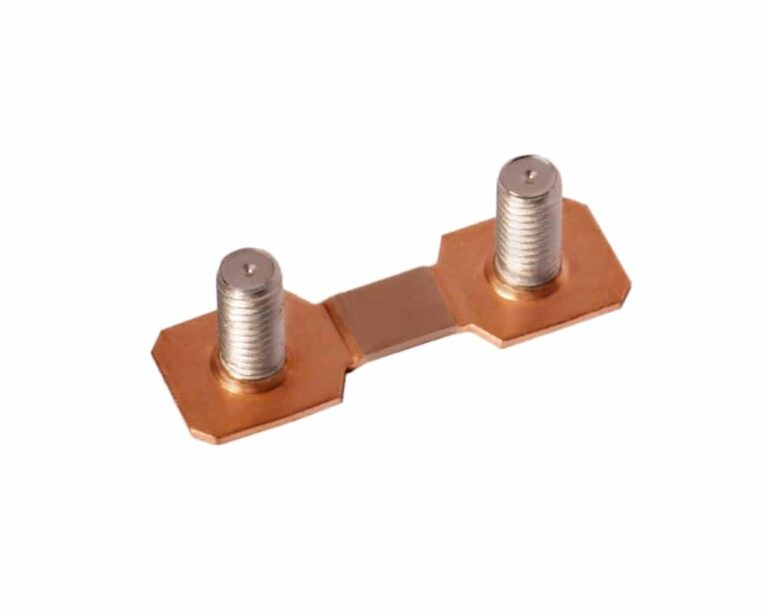

Isabellenhütte BVD Series

Current sensing resistor
Resistance value of 500µΩ
Tolerance ±5.0%
TCR of <±50 ppm/K
Power rating 3W
Temperature range from -55°C to +140°C

Add to Compare

Datasheet

Isabellenhütte BVE Series

Current sensing resistor
Surface-mount 5930 package
Resistance range from 0.0001Ω to 0.003Ω
Tolerance ±1.0% and ±5.0%
TCR from <±50 ppm/°C
Power rating of 15W (at +70°C)
Temperature range from -55°C to +170°C

Add to Compare

Datasheet

Isabellenhütte BVF Series

Current sensing resistor
Resistance values of 0.001Ω or 0.0015Ω
Tolerances of ±1.0% and ±5.0%
TCR value <±70 ppm/°C
Power rating of 3W (up to +145°C)
Temperature range from -65°C to +175°C

Add to Compare

Datasheet

Isabellenhütte IVT-S series

Current & voltage measurement sensor
Current range up to ±2,500A
Voltage range up to ±1,200V (Extended)
Communication based on CANbus 2.0 & DBC
Accuracy of ±0.4% of reading
Temperature range from -40°C to +105°C

Isabellenhütte IVT 3 Base

Current measurement sensor (ASIL C)
Current measurement up to 4,000A (Ext)
Temperature Measurement
Communication based on CAN 2.0B with DBC
Total accuracy of ±0.4% of rdg. +0.1A
Supply voltage 12V/24V**
Temperature range from -40°C to +125°C

Isabellenhütte IVT 3 Pro

Current measurement sensor (ASIL C)
3V or 6V measurement channels (ASIL B)
Active insulation monitoring (QM)
Temperature measurement
Current measurement up to 4,000A (Ext)
Voltage measurement up to 1,250V (Ext)
Temperature range from -40°C to +125°C

Isabellenhütte A-H1 Series

A-H1 current sense resistor
4-terminal through-hole design
Resistance range from 0.001Ω to 100Ω
Tolerance of ±0.1% or ±1%
TCR of <±30 ppm/°C
Power rating of 10W on a suitable heat sink
Temperature range from -55°C to +140°C

Isabellenhütte A-H2 Series

Current sense resistor
4-terminal through-hole design
Resistance range from 0.001Ω to 100Ω
Tolerance of ±0.1% or ±1%
TCR of <±30 ppm/°C
Power rating of 10W on a suitable heat sink
Temperature range from -55°C to +140°C

Isabellenhütte AZ-H1 Series

Current sensing resistor
4-terminal through-hole design
Resistance range from 0.002Ω to 5Ω
Tolerance of ±0.1% or ±1%
TCR of <±3 ppm/°C or <±10 ppm/°C (+20°C to +60°C)
Power rating 10W on a suitable heat sink
Temperature range from -55°C to +140°C

Isabellenhütte AZ-H2 Series

Current sensing resistor
4-terminal through-hole design
Resistance range from 0.002Ω to 1Ω
Tolerance of ±0.1% or ±1%
TCR of <±3 ppm/°C or <±10 ppm/°C (+20°C to +60°C)
Power rating 10W on a suitable heat sink
Temperature range from -55°C to +140°C

Isabellenhütte BSS Series

Shunt resistor
8420 Package size
Resistance value of 100µΩ
Tolerance of ±5.0%
TCR of <±50 ppm/°C
Power rating of 20W
AEC-Q200 qualified

Isabellenhütte BAL Series

Precision shunt resistor
Resistance value of 0.1mΩ
Tolerance of ±5%
TCR of 20 ± 40 ppm/℃
Up to 12W permanent power
Continuous current load up to 350 A
AEC-Q200 qualification

Isabellenhütte BAS Series

Shunt resistor
8420 package size
Resistance range from 35µΩ to 500µΩ
Tolerance of ±5.0%
TCR from <±50 ppm/°C
Power rating of 36W
Temperature range from -40°C to +170°C

Isabellenhütte BKW Series

Current sensing resistor
4-terminal surface-mount design
Resistance range from 0.0003Ω to 0.0005Ω
Tolerance ±5.0%
TCR of <±20 ppm/°C
Power rating of 3W
Temperature range from -55°C to +140°C

Isabellenhütte BRS Series

Current sensing resistor
3812 chip size
Resistance range from 0.002Ω to 0.025Ω
Tolerances from ±1%
TCR from ±100 ppm/°C
Power rating of 2W (at 120°C)
Temperature range from -55°C to +170°C

Isabellenhütte BVB Series

Current sensing resistor
2725 package size
Resistance range from 0.0002Ω to 0.005Ω
Tolerances of ±1% and ±5%
TCR of <±20ppm/°C or <±50ppm/°C
Power rating 12W (at 70°C)
Temperature range from -65°C to +170°C

Isabellenhütte BVD Series

Current sensing resistor
Resistance value of 500µΩ
Tolerance ±5.0%
TCR of <±50 ppm/K
Power rating 3W
Temperature range from -55°C to +140°C

Isabellenhütte BVE Series

Current sensing resistor
Surface-mount 5930 package
Resistance range from 0.0001Ω to 0.003Ω
Tolerance ±1.0% and ±5.0%
TCR from <±50 ppm/°C
Power rating of 15W (at +70°C)
Temperature range from -55°C to +170°C

Isabellenhütte BVF Series

Current sensing resistor
Resistance values of 0.001Ω or 0.0015Ω
Tolerances of ±1.0% and ±5.0%
TCR value <±70 ppm/°C
Power rating of 3W (up to +145°C)
Temperature range from -65°C to +175°C

Supporting Manufacturer Information

Isabellenhütte Powder Metallurgy Information

About Isabellenhütte

Our family-run company is one of the most important manufacturers of electrical resistance materials and thermoelectric materials for temperature measurement as well as passive components for the automotive, electrical, and electronics industries.

The field of precision measurement technology sets standards when it comes to measuring current, voltage, and temperature in cars and trucks, but also in hybrid and electric vehicles as well as in industrial and regenerative energy production systems.

As an internationally recognized specialist and technology leader, we repeatedly define the state of technology with our innovative products and underline the technological and innovative expertise of Isabellenhütte.

Decisive criteria for success are the continuous development of new types of products, technologies, and production processes as well as a comparatively very high depth of production. This ranges from the production of alloys to forming technology, etching and assembly technology to complex testing and packaging machines.

The different fields of precision measurement technology, precision and power resistors, and precision alloys are intertwined in a globally unique way in order to realize the greatest possible depth of production in our value-creation processes.

A flexible and completely independent production becomes possible by concentrating on the essential production steps in one location, from the melt to the rolling mill, the wire drawing facility, the complete building element, and measurement module production to the final inspection. In this way, we always ensure the highest quality, since development, production, quality management, and quality assurance are completely in our control.

As an internationally successful model company that has been family-owned and run for eight generations, the center of our corporate culture focuses on sustainability, the power of innovation, and a high process orientation. Above all here we rely on many enthusiastic employees with plenty of creative freedom.

Innovation by Tradition

For their official website, please visit www.isabellenhuette.de/en
