Caddock 1776 Series

Precision voltage dividers
Resistance ranges from 900Ω to 10MΩ
Absolute Tolerance of +0 -0.5%, ±0.1% or ±0.25%
VCR from ±0.02 ppm/V to ±0.5 ppm/V
Voltage rating of 750V up to 1.2kV
Temperature range 1 from -40°C to +85°C Temperature range 2 from 0°C to +70°C

Add to Compare

Datasheet

Caddock 1787 Series

Current sensing resistor network
Resistance ranges from 0.9Ω to 1kΩ
Absolute Tolerance of ±0.05%, ±0.1% or ±0.25%
TCR from ±50 ppm/°C to ±100 ppm/°C
Power rating of 1W depending on the model
Temperature range from -55°C to +85°C

Add to Compare

Datasheet

Caddock 1789 Series

Precision resistor network
Resistance range from 0.5Ω to 10kΩ
Tolerance of ±0.05% to ±1.0%
TCR of ±50, ±80 or ±100 ppm/°C
Power rating of 100mW up to 2W per resistor
Temperature range from 0°C to +70°C

Add to Compare

Datasheet

Caddock CC1512FC Series

Current sense resistor
Resistance range from 0.01Ω to 10Ω
Tolerance from ±1.0% to ±5.0%
TCR of -20 to +80, 0 to +200 or +300 ppm/°C
Power rating of 0.75W at 70°C
Temperature range from -55°C to +150°C

Add to Compare

Datasheet

Caddock CC2520FC Series

Low resistance precision flip-chip surface-mount resistor
2-terminal current sense resistor with recommended 4-terminal PCB layout
Chip size of 2520
Solder coated pads between 0.01Ω and 0.02Ω, solderable pads between 0.025Ω and 10Ω
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Add to Compare

Datasheet

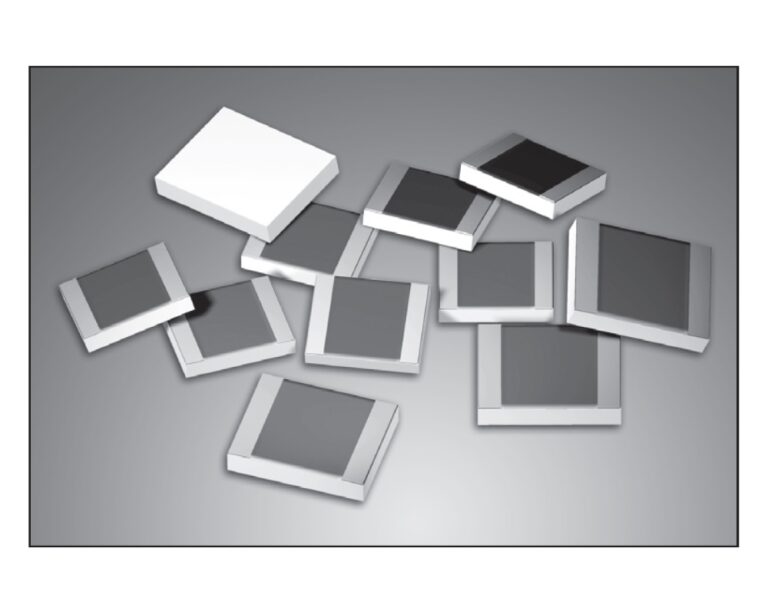

Caddock CC2520WB Series

Low resistance precision wire-bondable surface-mount resistor
Metalised back surface for soldering to a heat sink with bondable termination pads
2-terminal current sense resistor with 4-terminal connections available (see datasheet for further details)
Chip size of 2520
Aluminium wire to be used for bonding
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Add to Compare

Datasheet

Caddock CD2015FC Series

Low resistance precision flip-chip surface-mount resistor
Utilises the proven Caddock Micronox® resistance films to achieve the unique low resistance range
Pedestal terminal design helps maintain precision and its copper core provides heat spreading which enhances the high power handling capabilities
Chip size of 2015
Bare ceramic back surface
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Add to Compare

Datasheet

Caddock CD2015WBA Series

Low resistance precision wire-bondable surface-mount resistor
Utilises the proven Caddock Micronox® resistance films to achieve the unique low resistance range
Pedestal terminal design helps maintain precision and its copper core provides heat spreading which enhances the high power handling capabilities
Chip size of 2015
Aluminium wire to be used for bonding
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Add to Compare

Datasheet

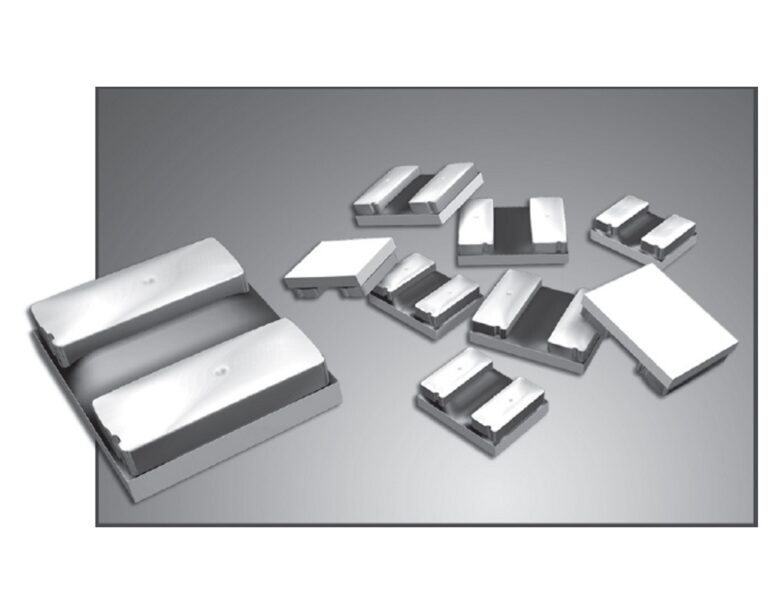

Caddock CD2520FC Series

Low resistance precision flip-chip surface-mount resistor
Utilises the proven Caddock Micronox® resistance films to achieve the unique low resistance range
Pedestal terminal design helps maintain precision and its copper core provides heat spreading which enhances the high power handling capabilities
Chip size of 2520
Bare ceramic back surface
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Add to Compare

Datasheet

Caddock CD2520WBA Series

Low resistance precision wire-bondable surface-mount resistor
Utilises the proven Caddock Micronox® resistance films to achieve the unique low resistance range
Pedestal terminal design helps maintain precision and its copper core provides heat spreading which enhances the high power handling capabilities
Chip size of 2520
Aluminium wire to be used for bonding
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Add to Compare

Datasheet

Caddock CHR2520FC Series

High resistance precision flip-chip surface-mount resistor
Designed for use in extremely low signal detection / amplification circuits
Solderable metallised termination pads on the same side as the resistive element with a bare ceramic back surface
Maximum chip temperature of +85°C
Temperature range of -40°C to +85°C

Add to Compare

Datasheet

Caddock HVD Series

Ultra-precision through-hole high voltage divider
6 standard models of the HVD series
Monolithic voltage dividers built with ceramic sandwich construction
Ratios (R_T:R₂) of 100:1 or 1,000:1
Ideal for high performance voltage division applications in medical equipment, laboratory equipment and analytical instruments
Over voltage of 1.5 times rated voltage for 5s

Add to Compare

Datasheet

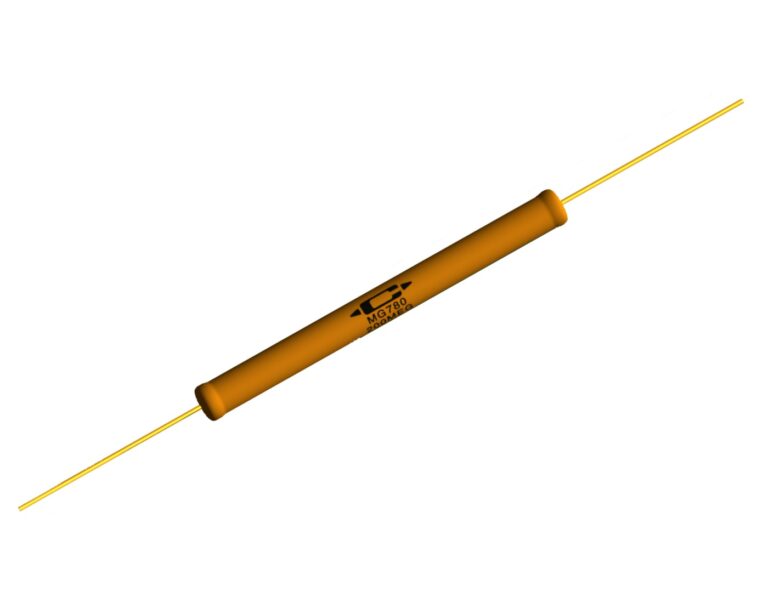

Caddock MG Standard Range

Cylindrical high voltage axial leaded resistor
Maximum operating voltage from 600V up to 30kV *
Resistance values from 200Ω up to 2GΩ *
Tolerances of ±0.1%, ±0.25%, ±0.5% and ±1%
TCR as tight as ±80 ppm/°C from -15°C to +105°C
Maximum power rating from 0.5W up to 15W *
Operating Temperature Range of -55°C to +225°C

_{* Dependant on selected resistor model}

Add to Compare

Datasheet

Caddock MK227 Series

Precision power film radial leaded through-hole resistor
Non-inductive with expanded resistance range
Maximum working voltage of 200V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Micronox® resistance films fired onto a solid ceramic substrate
Extended life stability is typically better than 0.1% per 1,000 hours
Temperature range from -40°C up to +150°C

Add to Compare

Datasheet

Caddock MK232 Series

Precision power film radial leaded through-hole resistor
Non-inductive with expanded resistance range
Maximum working voltage of 200V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Micronox® resistance films fired onto a solid ceramic substrate
Extended life stability is typically better than 0.1% per 1,000 hours
Temperature range from -40°C up to +150°C

Add to Compare

Datasheet

Caddock CC2015FC Series

Current sensing resistor
Resistance range from 0.02Ω to 10Ω
Tolerance from ±1.0% to ±5.0%
TCR of -20 to +80, 0 to +200 or +300 ppm/°C
Power rating of 1W at 70°C
Temperature range from -55°C to +150°C

Add to Compare

Datasheet

Caddock 1776 Series

Precision voltage dividers
Resistance ranges from 900Ω to 10MΩ
Absolute Tolerance of +0 -0.5%, ±0.1% or ±0.25%
VCR from ±0.02 ppm/V to ±0.5 ppm/V
Voltage rating of 750V up to 1.2kV
Temperature range 1 from -40°C to +85°C Temperature range 2 from 0°C to +70°C

Caddock 1787 Series

Current sensing resistor network
Resistance ranges from 0.9Ω to 1kΩ
Absolute Tolerance of ±0.05%, ±0.1% or ±0.25%
TCR from ±50 ppm/°C to ±100 ppm/°C
Power rating of 1W depending on the model
Temperature range from -55°C to +85°C

Caddock 1789 Series

Precision resistor network
Resistance range from 0.5Ω to 10kΩ
Tolerance of ±0.05% to ±1.0%
TCR of ±50, ±80 or ±100 ppm/°C
Power rating of 100mW up to 2W per resistor
Temperature range from 0°C to +70°C

Caddock CC1512FC Series

Current sense resistor
Resistance range from 0.01Ω to 10Ω
Tolerance from ±1.0% to ±5.0%
TCR of -20 to +80, 0 to +200 or +300 ppm/°C
Power rating of 0.75W at 70°C
Temperature range from -55°C to +150°C

Caddock CC2520FC Series

Low resistance precision flip-chip surface-mount resistor
2-terminal current sense resistor with recommended 4-terminal PCB layout
Chip size of 2520
Solder coated pads between 0.01Ω and 0.02Ω, solderable pads between 0.025Ω and 10Ω
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Caddock CC2520WB Series

Low resistance precision wire-bondable surface-mount resistor
Metalised back surface for soldering to a heat sink with bondable termination pads
2-terminal current sense resistor with 4-terminal connections available (see datasheet for further details)
Chip size of 2520
Aluminium wire to be used for bonding
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Caddock CD2015FC Series

Low resistance precision flip-chip surface-mount resistor
Utilises the proven Caddock Micronox® resistance films to achieve the unique low resistance range
Pedestal terminal design helps maintain precision and its copper core provides heat spreading which enhances the high power handling capabilities
Chip size of 2015
Bare ceramic back surface
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Caddock CD2015WBA Series

Low resistance precision wire-bondable surface-mount resistor
Utilises the proven Caddock Micronox® resistance films to achieve the unique low resistance range
Pedestal terminal design helps maintain precision and its copper core provides heat spreading which enhances the high power handling capabilities
Chip size of 2015
Aluminium wire to be used for bonding
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Caddock CD2520FC Series

Low resistance precision flip-chip surface-mount resistor
Utilises the proven Caddock Micronox® resistance films to achieve the unique low resistance range
Pedestal terminal design helps maintain precision and its copper core provides heat spreading which enhances the high power handling capabilities
Chip size of 2520
Bare ceramic back surface
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Caddock CD2520WBA Series

Low resistance precision wire-bondable surface-mount resistor
Utilises the proven Caddock Micronox® resistance films to achieve the unique low resistance range
Pedestal terminal design helps maintain precision and its copper core provides heat spreading which enhances the high power handling capabilities
Chip size of 2520
Aluminium wire to be used for bonding
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Caddock CHR2520FC Series

High resistance precision flip-chip surface-mount resistor
Designed for use in extremely low signal detection / amplification circuits
Solderable metallised termination pads on the same side as the resistive element with a bare ceramic back surface
Maximum chip temperature of +85°C
Temperature range of -40°C to +85°C

Caddock HVD Series

Ultra-precision through-hole high voltage divider
6 standard models of the HVD series
Monolithic voltage dividers built with ceramic sandwich construction
Ratios (R_T:R₂) of 100:1 or 1,000:1
Ideal for high performance voltage division applications in medical equipment, laboratory equipment and analytical instruments
Over voltage of 1.5 times rated voltage for 5s

Caddock MG Standard Range

Cylindrical high voltage axial leaded resistor
Maximum operating voltage from 600V up to 30kV *
Resistance values from 200Ω up to 2GΩ *
Tolerances of ±0.1%, ±0.25%, ±0.5% and ±1%
TCR as tight as ±80 ppm/°C from -15°C to +105°C
Maximum power rating from 0.5W up to 15W *
Operating Temperature Range of -55°C to +225°C

_{* Dependant on selected resistor model}

Caddock MK227 Series

Precision power film radial leaded through-hole resistor
Non-inductive with expanded resistance range
Maximum working voltage of 200V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Micronox® resistance films fired onto a solid ceramic substrate
Extended life stability is typically better than 0.1% per 1,000 hours
Temperature range from -40°C up to +150°C

Caddock MK232 Series

Precision power film radial leaded through-hole resistor
Non-inductive with expanded resistance range
Maximum working voltage of 200V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Micronox® resistance films fired onto a solid ceramic substrate
Extended life stability is typically better than 0.1% per 1,000 hours
Temperature range from -40°C up to +150°C

Caddock CC2015FC Series

Current sensing resistor
Resistance range from 0.02Ω to 10Ω
Tolerance from ±1.0% to ±5.0%
TCR of -20 to +80, 0 to +200 or +300 ppm/°C
Power rating of 1W at 70°C
Temperature range from -55°C to +150°C

About Caddock

Caddock Electronics Inc., founded in 1962, manufactures High-Performance Film Resistor Products including:

Non-Inductive Power Film Resistors
Current Sense Resistors in TO-Style, Axial Lead, Radial Lead and SMT packages
High Voltage Resistors
Voltage Dividers
Low TC Precision and Ultra-Precision Resistors
Resistor Networks
Transient Tolerant Precision Resistors
High-Temperature Resistors
RF Resistors
Matched Resistor Sets
Custom Resistor Devices

Caddock uses unique resistance film technologies and process technologies to create solutions for performance demanding applications. Their product line consists of over 250 models, all of which are manufactured at their facilities in Roseburg, Oregon USA.
The Caddock business focus is to develop and manage unique material and process technologies with a commitment to the conservative producibility of high-performance, high-quality resistor products that provide technical solutions for our customers.

For their official website, please visit www.caddock.com

Aerospace

Audio

Energy

EV & Automotive

Healthcare & Medical

Industrial

Military & Defense

Oil & Gas

Renewables

Caddock

About Caddock

Supporting Manufacturer Information
