Cryogenic Aerospace RTDs

RdF offers a broad range of Cryogenic RTD Probes for ground support and flight. We tailor designs and qualify sensors to meet varying performance requirements and environmental conditions for each program. RdF RTDs have served on every manned US Space Mission since Project Mercury.

Cryogenic RTDs for Aerospace often have application-specific demands that are met with different design options. These particulars will vary and should be discussed with RdF to identify the right sensor. Examples of such considerations are:

โ€ข Dynamic Requirements, shock vibe and flow
โ€ข NIST Traceable Cryogenic Calibration for High Accuracy Control Points

Typical Performance RangeConstruction Features
Temperature Range-320ยฐC to 200ยฐC Max (-434ยฐF to 500ยฐF)Hermetically Sealed
Standard AccuracyTyp ยฑ1.1ยฐC Over Temp RangeAll-Welded Metal Construction
Special Accuracyยฑ0.14ยฐC at Custom CalibrationThread Mount AS5202
Pressure Rating2,500psi - 5,000psi OperatingLockwire Holes
Resistance at 32ยฐF / 0ยฐC100ฮฉ, 1000ฮฉ, 2000ฮฉTypical Connector D38999 or Custom
Sensor StyleFeaturesNotes

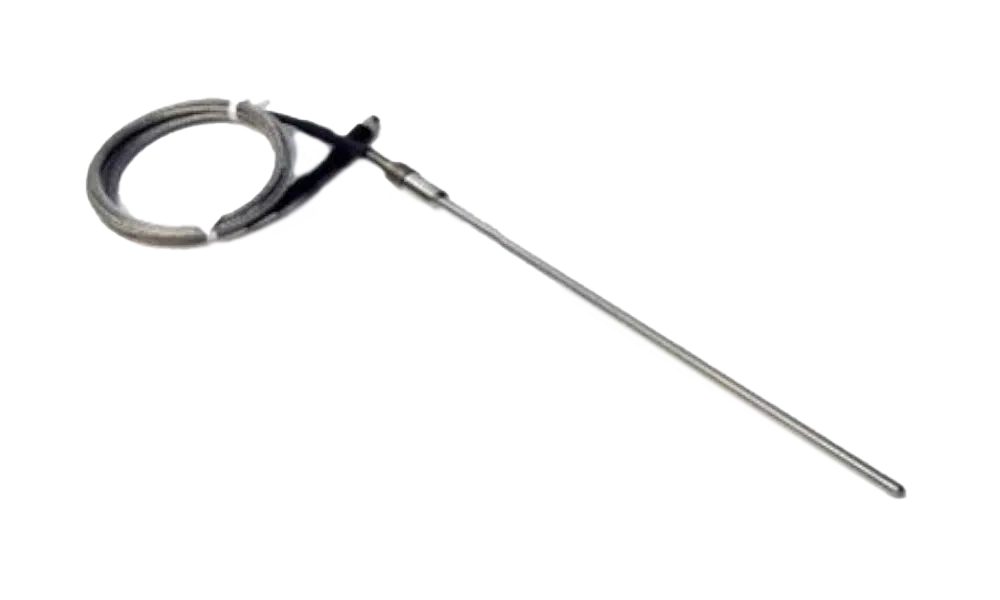

A - Straight sheath probe
A Straight sheath probe
  • Response Time 3 seconds
  • 0.25" Outer Diameter
  • 6", 12" Probe Length
  • Connection: Leads or Connector

General Use Ground Support Design
Installation with Swagelok Fitting

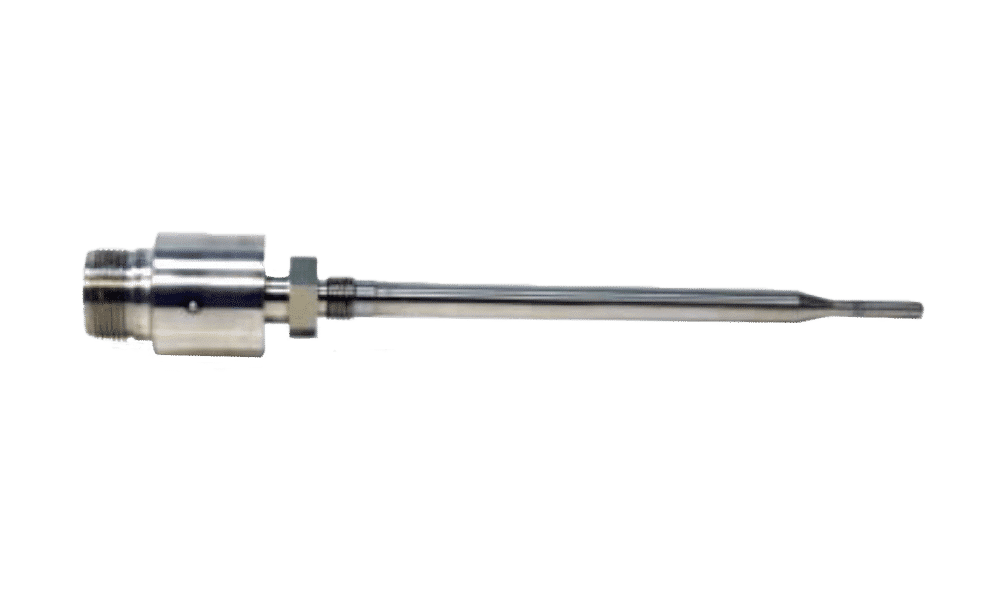

B - Stepped sheath probe
B - Stepped sheath probe
  • Response Time 1-2 seconds
  • 0.125" to 0.188" Tip Outer Diameter
  • Configurable Length, 2" and up
  • Process Thread Mount

General Use Design
Robust constuction, well suited for high flow measurement

C - Small diameter probe
C - Small diameter probe
  • Response Time 1 second
  • 0.093" to 0.125" Tip Outer Diameter
  • Configurable Length, Up to 2"
  • Process Thread Mount

General Use Design

D - Flat responce probe
D - Flat responce probe
  • Response Time 0.5 seconds
  • Variable Tip Outer Diameter
  • Configurable Length, from 1.5"
  • Process Thread AS5202

Available with and without Tip Shield based on flow conditions
Stainless or Inconel construction typical
Connector D38999

E - Hollow Annulus Probe
E - Hollow Annulus Probe
  • Response Time 0.3 seconds
  • 0.33" Outer Diameter
  • Configurable Length, 3" -6"
  • Process Thread AS5202

Robust constuction, well suited for high flow measurement

Calibration Capabilities

RdF maintains a NIST-traceable calibration facility to support the high accuracy requirements of our Research, Defense, Aerospace and Nuclear customer base.

For many applications, RdF recommends a standard three-point calibration at Liquid Nitrogen, 0ยฐC and 100ยฐC to provide reliable and repeatable measurements ยฑ1.1ยฐC over a wide range.
For customers with super high-accuracy sensing needs, RdF Corporation offers multipoint cryogenic calibration services and individualized Resistance v Temperature profiles in the cryogenic range for each probe. Calibration points can be customized to application-specific control points.

Using our NIST-Calibrated Cryogenic Standards, RdF’s calibration process yields RTD Probes with accuracies ยฑ0.14ยฐC, high interchangeability, and extremely stable, repeatable performance.

RdF Aerospace Legacy

Founded in 1955, RdF has supported space exploration since the inception of the United States Space Program. RdF sensors have served on every manned U.S. space mission since Project Mercury.
Their qualified temperature sensors are orbiting on the ISS, satellites, and telescopes, installed in ground support facilities, and monitoring critical systems on launch and crew vehicles currently in production.

Today, RdF continues to work with companies worldwide to advance the exploration of Space. To discuss your project or learn more about RdF’s Cryogenic Capabilities, please speak to one of our engineers.
