Aircraft & Aerospace Sensors

Space Qualified Sensors

RdF has proudly every manned U.S. space mission beginning with NASA’s earliest flights.

Thousands of RdFโ€™s designs are currently in orbit on satellites, telescopes, and the International Space Station (ISS). Their RTDโ€™s, Heaters, Thermocouples, Reference Junctions, and other components are qualified to the most rigorous environmental conditions, these include:

  • RTDs for Cryogenic Fuels, Rocket Nozzles, Vehicle Structures and Skins
  • Sensors and heaters for electronics
  • Sensors for re-entry shields
  • Low outgassing and low mass construction
  • Catalog Sensors with Flight Heritage
  • Proven performance in high shock, vibration and flow

Testing Instrumentation

RdF provides RTDs, Thermocouples, Heat Flux, and Thermal Sensors used on a wide range of testing in flight, on test stands and in laboratory settings.

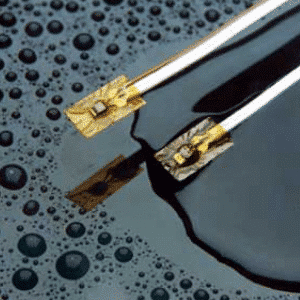

RTDs:

  • Temperatures cryogenic to 480ยฐC (900ยฐF)
  • Probes and capsules as small as 0.066โ€ (1.7mm) OD
  • Surface mount design with a thickness of <1.27mm (0.05โ€)
  • Secondary standards accuracy, NIST-traceable calibration

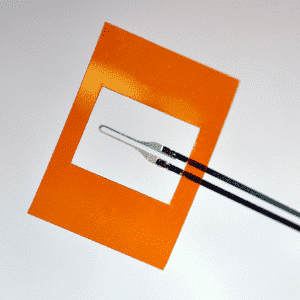

Thermocouples:

  • Used cryogenic to 1150ยฐC (2100ยฐF)
  • Probes and surface mount configurations
  • Foil TCs as thin as 13ฮผm (0.0005โ€) for response in milliseconds
  • Special limits of errorโ€“types E, J, K, T

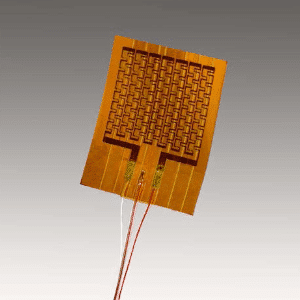

Heat Flux Sensors:

Thin Foil Gauges

  • Flexible
  • As thin as 76ฮผm (0.003″)
  • Response time <0.1 seconds
  • Range 0-50 BTU/Ft2 sec

including Calorimeters and Radiometers

RdF Corporation is the worldโ€™s leading innovator in the design, development and production of surface, insertion and immersion temperature and heat flux sensors. Their multi-market innovations are especially important as applied in demanding aerospace and military applications. Most of the newest surface and immersion temperature sensors in use were originally introduced, engineered and manufactured by RdF.

Engines

RdF supplies sensors monitoring turbine inlet and inter-stage turbine temperature on many of the worldโ€™s aircraft. Dependable operation over thousands of starts, stops and thermal cycles demands the reliability delivered by RdFโ€™s thermocouples and RTDs. RdF also holds FAA-PMA approvals for manufacturing sensors to the Aftermarket.

Fuels & Fluids

RdF sensors monitor temperature in fuel and main oil systems, as well as hydraulic fluid systems. Their RTDโ€™s are installed in various assemblies including level-sensing and flow measurement. For fuel temperature applications, their sensors have been designed for line-mounting and full immersion in the tank.

Air Temperature

RdF air sensors provide accurate measurements for critical applications in environmental control systems, controlled chambers, wind tunnels, cargo bays, air intakes, heat exchangers, and exhaust flues. Configurations vary depending on system requirements, from simple sheaths to perforated sheaths, with either thermistors or RTDs covering a broad temperature range.

Transparencies & Structures

RdFโ€™s resistance temperature sensors are integrated into the de-icing systems of commercial and military aircraft. Standard and custom components are incorporated into leading edge and rotor blade assemblies as well as various composite components use throughout the aircraft. Transparent wire-wound grids or point-sensitive RTDs are laminated into windshields and canopies with high optical clarity requirements. The stability and repeatability of RdFโ€™s sensors mean consistent and reliable readings over the aircraftโ€™s service life.
